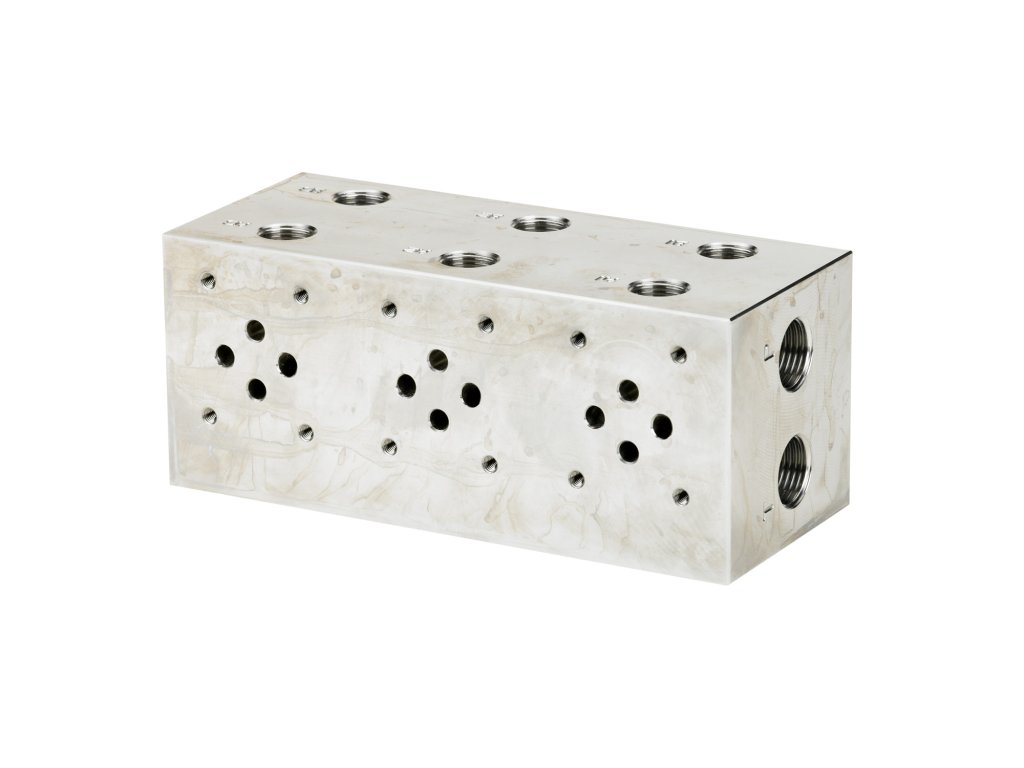

Valve Block, FOR 2 VDH 30 EC 2/2
Kód: 180L0062Detailní popis produktu
Cetop 3 Block for 2 VDH /VDHT 30 EC3
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 1.99 kg |
| EAN: | 5715162674963 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 0.000 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 3/8 in |
| Actuator size [mm]: | 13.5 |
| Product description: | Valve Block |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| UL evaluated: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Media temperature [°F] [Min]: | 36 |
| Type designation: | FOR 2 VDH 30 EC 2/2 |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1/2 in |
| Contain batteries: | No |
| CE evaluated: | Out of scope |
| Operating pressure [barg] [Max]: | 160 |
| Flow [l/min] [Max]: | 30.00 |
| Operating pressure [barg] [Min]: | 4 |
| EU RoHS compliance: | Out of scope |
| Flow [l/min] [Min]: | 0.00 |
| Operating pressure [psig] [Max]: | 2400 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 8.000 |
| Operating pressure [psig] [Min]: | 51 |
| Compatible valves: | VDH |
| Spare part: | TRUE |
| Serviceable: | Ano |
| Used for product: | VDH 30 EC 2/2 |
| Material type: | Neutrální média |
| Accessory: | TRUE |
| Connection type: | Závit |
| Parts Program name: | Block |
| Body material: | AISI 304 |
-
