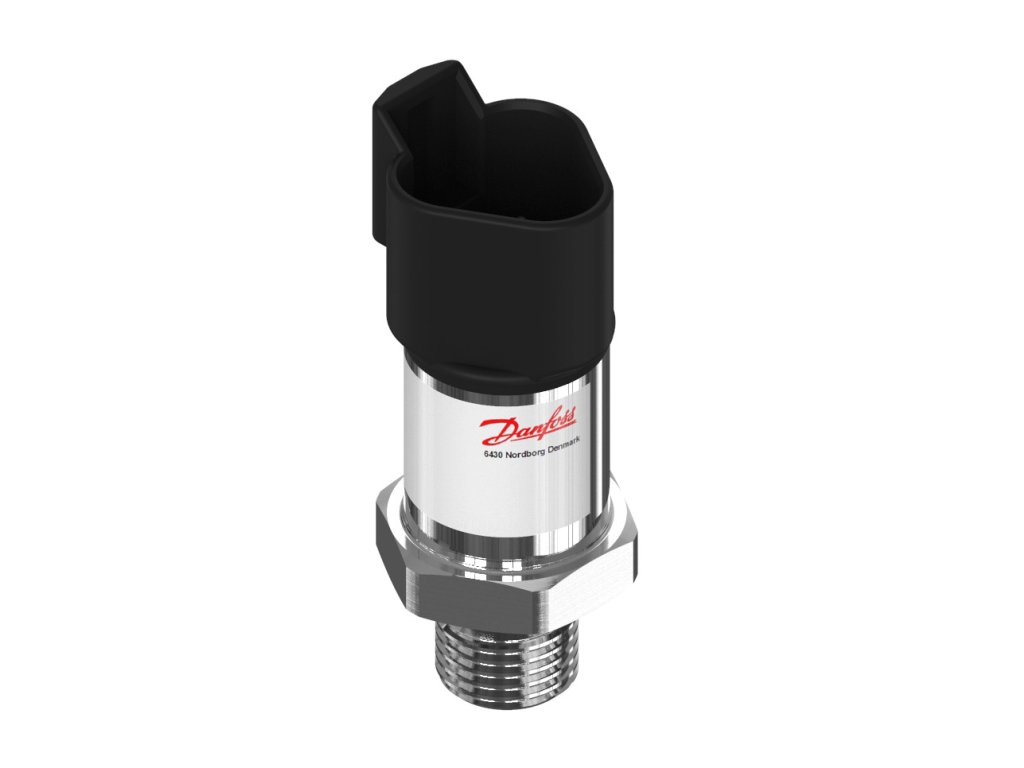

Tlakový snímač s vysílačem, MEP 2650, 0 bar - 40 bar, 0 psi - 580 psi
Kód: 063G2298Detailní popis produktu
Typ tlakového připojení: NPT, velikost tlakové přípojky: 1/4-18, Specifikační klíč: MEP 2650-26-8-004-0-8-1-C7AC04Doplňkové parametry
| Kategorie: | MEP |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5702428539982 |
| Overload pressure max. [psig]: | 1740 |
| Burst pressure [bar]: | 800.0 |
| Burst pressure [psig]: | 11600 |
| Medium temperature range [°C] [max]: | 125 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable: | FALSE |
| Cable length: | |
| Electrical connection size: | 3 piny |
| UL evaluated: | Yes |
| Connection: | External thread conical (NPT) |
| Specification key: | MEP 2650-26-8-004-0-8-1-C7AC04 |
| Height: | 98 |
| Compensated temp. range [°F] [max]: | 257 |
| Electrical connection: | Other, Deutsch |
| Pressure connection size: | 1/4-18 |
| Pressure connection standard: | ANSI/ASME B1.20.1 |
| Width: | 32 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Output signal: | Switch, Other |
| Suitable for gases: | TRUE |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 125 |
| Suitable for air: | TRUE |
| Max. overpressure: | 120.0 |
| Pressure connection HEX [mm]: | 22.0 |
| Pressure Male/Female: | Vnitřní |
| Suitable for water: | TRUE |
| Measuring range: | 0.00-40.00 |
| Depth: | 32 |
| Medium temperature range [°F] [min]: | -40 |
| - common: | Pin B |
| Pressure connection type: | NPT |
| Thread size: | Other |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 40.00 |
| Packing format: | Multi balení |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 580.00 |
| Feed pressure: | 40.00 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | No |
| Electrical connection standard: | DT04 |
| Contains batteries: | No |
| + supply: | Pin A |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Medium temperature range [°F] [max]: | 257 |
| Pin surface material: | Sn |
| Pulse-snubber: | Yes |
| Pressure range [bar] [min]: | 0.00 |
| Ambient temperature range [°C] [max]: | 125 |
| Supply voltage: | 30.00 |
| Suitable for glycol: | TRUE |
| Degree of protection (IP): | IP67 |
| Overload pressure max. [bar]: | 120.0 |
| Comments: | PIN C: PNP-NO- |
| Supply voltage [V] DC [max]: | 30.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Response time max. [ms]: | 1 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 48 |
| Supply voltage [V] DC [min]: | 8.00 |
| Ambient temperature range [°F] [max]: | 257 |
| Compensated temp. range [°C] [min]: | -40 |
| Explosion-proof: | FALSE |
| Compensated temp. range [°F] [min]: | -40 |
-
