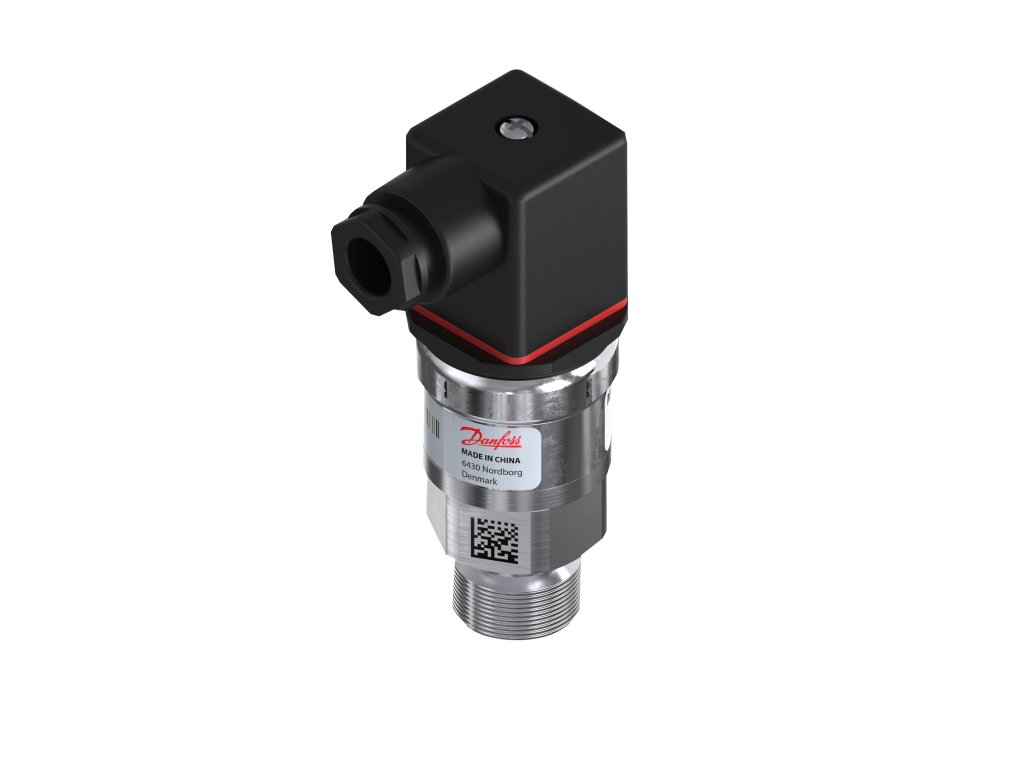

Tlakový snímač s vysílačem, MBS 9300, -40 mbar - 50 mbar, -0.58 psi - 0.73 psi
Kód: 064G5255Detailní popis produktu
Typ tlakového připojení: G, velikost tlakové přípojky: 1/2, Specifikační klíč: MBS 9300-Q411-A6GB08-1Doplňkové parametry
| Kategorie: | MBS 9300 |
|---|---|
| Hmotnost: | 0.19 kg |
| EAN: | 5702428551328 |
| Medium temperature range [°C] [max]: | 125 |
| Electrical connection size: | Pg 11 |
| UL evaluated: | Yes |
| Specification key: | MBS 9300-Q411-A6GB08-1 |
| Height: | 55 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Compensated temp. range [°F] [max]: | 176 |
| Pressure connection size: | 1/2 |
| Pressure connection standard: | DIN 3852-E |
| Width: | 55 |
| Medium temperature range [°C] [min]: | -20 |
| Electrical connection: | Angular connector |
| Output signal: | Current |
| Reference temperature [°C]: | 25 |
| Pressure connection notes: | A |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -20 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Acc. @ ref. Temp. ±FS typ. [%]: | 1.00 |
| Non-linearity BFSL [±FS%]: | 0.20 |
| Depth: | 55 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| TEB inside CTR ±FS [%]: | 2.00 |
| Mount.pos. err. @ 180°[±FS%]: | 0.50 |
| Output signal [mA] [min]: | 4 |
| Pressure range [mbar] [min]: | -40.00 |
| Pressure range [mbar] [max]: | 50.00 |
| - common: | Pin 2 |
| Recommen. mounting torque [Nm]: | 25 |
| Pressure connection type: | G |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized |
| Pressure range [psi] [max]: | 0.73 |
| Electrical conn. Male/Female: | Vnitřní |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Pulse-snubber: | No |
| Ambient temperature range [°C] [max]: | 100 |
| Overload pressure max. [bar]: | 3.5 |
| SCIP dossier product name: | AKS/MBS |
| Hysteresis and repeat.[±FS%]: | 0.10 |
| Supply voltage [V] DC [max]: | 32.00 |
| Pressure range [psi] [min]: | -0.58 |
| Quantity per packing format: | 20 |
| Supply voltage [V] DC [min]: | 9.00 |
| Compensated temp. range [°F] [min]: | 32 |
-
