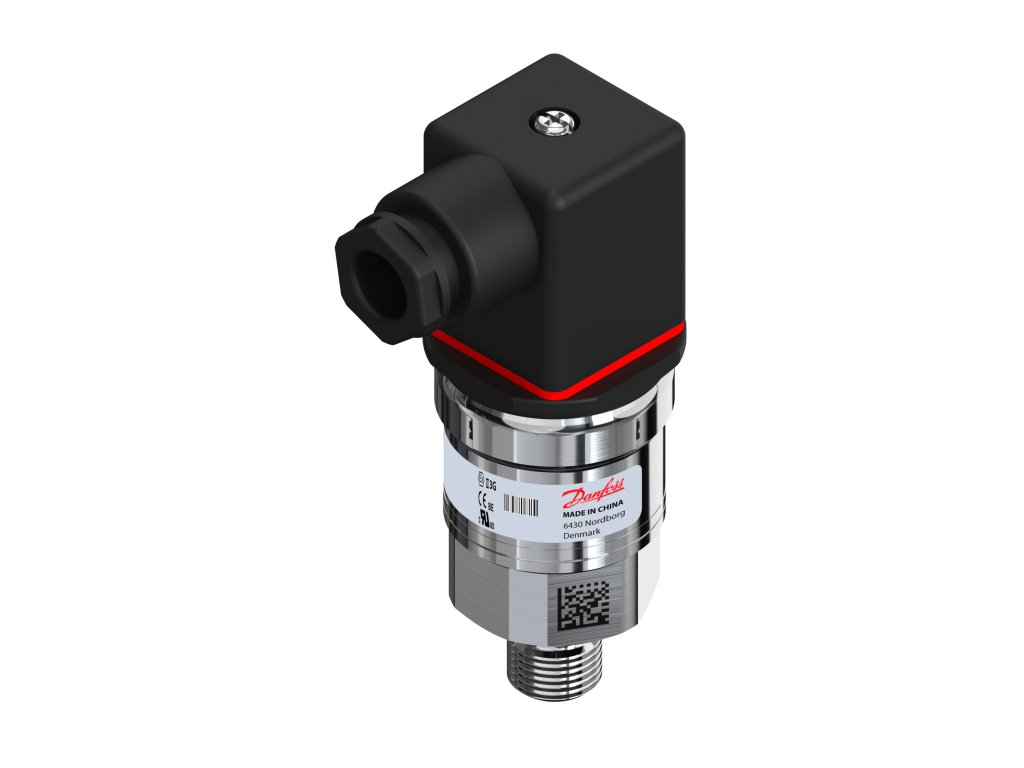

Tlakový snímač s vysílačem, MBS 9200, 0 mbar - 100 mbar, 0 psi - 1.45 psi
Kód: 064G5214Detailní popis produktu
Typ tlakového připojení: G, velikost tlakové přípojky: 1/4, Specifikační klíč: MBS 9200-B311-A1GB04-1
Doplňkové parametry
| Kategorie: | MBS 9200 |
|---|---|
| Hmotnost: | 0.16 kg |
| EAN: | 5702428870078 |
| Burst pressure [bar]: | 50.0 |
| Medium temperature range [°C] [max]: | 100 |
| Readable: | FALSE |
| Cable length: | |
| Electrical connection size: | Pg 9 |
| Storage temperature range [°C] [min]: | -40 |
| UL evaluated: | Yes |
| Storage temperature range [°F] [min]: | -40 |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | MBS 9200-B311-A1GB04-1 |
| Height: | 50 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Electrical connection: | Other, Angular connector |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 3852-E |
| Width: | 55 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -20 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Reference temperature [°C]: | 25 |
| Pressure connection notes: | A |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -25 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air: | TRUE |
| Max. overpressure: | 3.5 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Acc. @ ref. Temp. ±FS typ. [%]: | 1.00 |
| Suitable for water: | TRUE |
| Non-linearity BFSL [±FS%]: | 0.20 |
| Measuring range: | 0.00-0.10 |
| Depth: | 95 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| TEB inside CTR ±FS [%]: | 2.00 |
| Mount.pos. err. @ 180°[±FS%]: | 0.50 |
| Output signal [mA] [min]: | 4 |
| Pressure range [mbar] [min]: | 0.00 |
| Pressure range [mbar] [max]: | 100.00 |
| - common: | Pin 2 |
| Recommen. mounting torque [Nm]: | 25 |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Storage temperature range [°C] [max]: | 125 |
| Pressure range [psi] [max]: | 1.45 |
| Feed pressure: | 0.10 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Intrinsically safe: | Ne |
| Pulse-snubber: | No |
| Ambient temperature range [°C] [max]: | 100 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| Degree of protection (IP): | IP65 |
| Overload pressure max. [bar]: | 3.5 |
| Storage temperature range [°F] [max]: | 257 |
| SCIP dossier product name: | AKS/MBS |
| Durability P @ 10-90% FS: | 10000000 |
| Hysteresis and repeat.[±FS%]: | 0.10 |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 20 |
| Supply voltage [V] DC [min]: | 9.00 |
| Compensated temp. range [°C] [min]: | |
| Explosion-proof: | FALSE |
-
