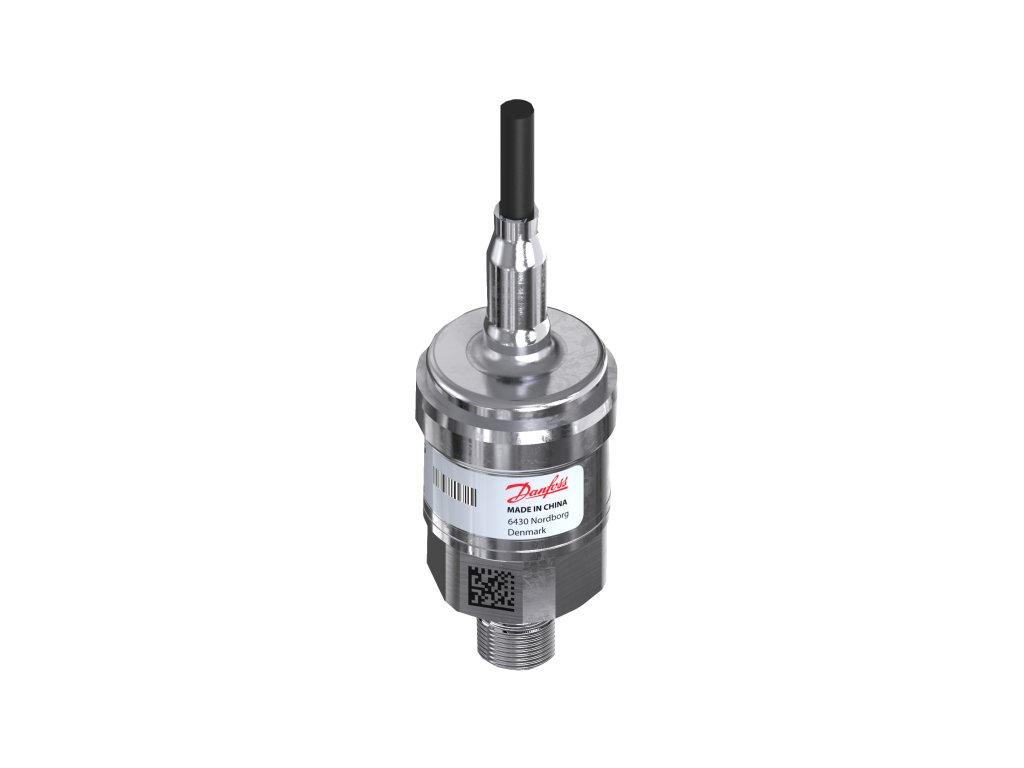

Tlakový snímač s vysílačem, MBS 9200, 0 mbar - 100 mbar, 0 psi - 1.45 psi
Kód: 064G5272Detailní popis produktu
Elektrické připojení: Kabel, typ tlakového připojení: M, velikost tlakové přípojky: 14 x 1.5, Specifikační klíč: MBS 9200-B316-A3FA09-1
Doplňkové parametry
| Kategorie: | MBS 9200 |
|---|---|
| Hmotnost: | 0.25 kg |
| EAN: | 5715162878743 |
| Burst pressure [bar]: | 50.0 |
| Electrical conn. comments: | Stíněný kabel |
| Medium temperature range [°C] [max]: | 100 |
| Ambient temperature range [°F] [min]: | -22 |
| Electrical connection size: | 4 vodiče |
| Storage temperature range [°C] [min]: | -40 |
| Storage temperature range [°F] [min]: | -40 |
| Specification key: | MBS 9200-B316-A3FA09-1 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Pressure connection size: | 14 x 1.5 |
| Pressure connection standard: | DIN 3852-E |
| Ratiometric of Vsupply [%] [max]: | 90.0 |
| Medium temperature range [°C] [min]: | -20 |
| Electrical connection: | Kabel |
| Output signal: | Ratio metric |
| Reference temperature [°C]: | 25 |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -30 |
| Cable length [in]: | 79.00 |
| Compensated temp. range [°C] [max]: | 80 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Acc. @ ref. Temp. ±FS typ. [%]: | 1.00 |
| Non-linearity BFSL [±FS%]: | 0.20 |
| TEB inside CTR ±FS [%]: | 2.00 |
| Mount.pos. err. @ 180°[±FS%]: | 0.50 |
| Pressure range [mbar] [min]: | 0.00 |
| Medium temperature range [°F] [min]: | -4 |
| Pressure range [mbar] [max]: | 100.00 |
| - common: | Černá |
| Pressure connection type: | M |
| + output: | Hnědá |
| Cable length [m]: | 2.000 |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| Approval: | C UL US UL Recognized |
| Storage temperature range [°C] [max]: | 125 |
| Pressure range [psi] [max]: | 1.45 |
| Electrical conn. Male/Female: | Vnitřní a vnější |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contain batteries: | No |
| + supply: | Červená |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 212 |
| Intrinsically safe: | Ne |
| Pulse-snubber: | No |
| Ratiometric of Vsupply [%] [min]: | 10.0 |
| Ambient temperature range [°C] [max]: | 85 |
| Overload pressure max. [bar]: | 3.5 |
| Storage temperature range [°F] [max]: | 257 |
| SCIP dossier product name: | AKS/MBS |
| Durability P @ 10-90% FS: | 10000000 |
| Hysteresis and repeat.[±FS%]: | 0.10 |
| Supply voltage [V] DC [max]: | 5.50 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 8 |
| Supply voltage [V] DC [min]: | 4.50 |
| Ambient temperature range [°F] [max]: | 185 |
| Compensated temp. range [°C] [min]: |
-
