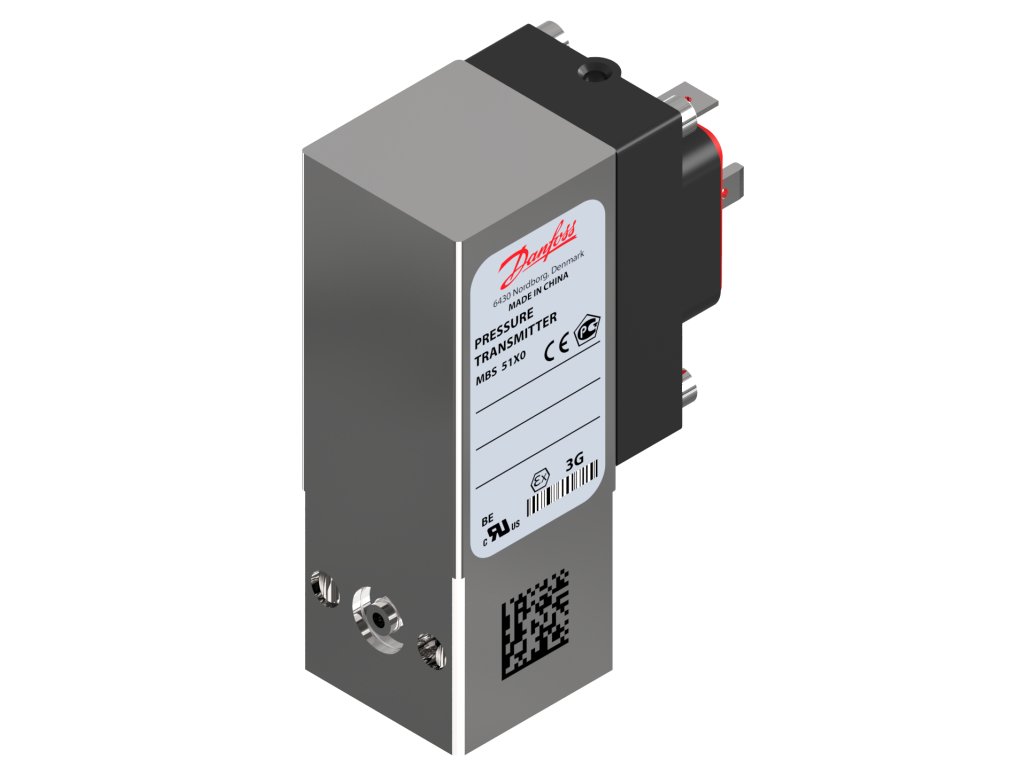

Tlakový snímač s vysílačem, MBS 5100, 0 bar - 100 bar, 0 psi - 1450 psi
Kód: 060N1222Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | MBS 5100 / MBS 5150 |
|---|---|
| Hmotnost: | 0.3 kg |
| EAN: | 5702423198290 |
| Medium temperature range [°C] [max]: | 85 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable: | FALSE |
| Cable length: | 0 |
| Electrical connection size: | 4 piny |
| UL evaluated: | Yes |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | Ne |
| Specification key: | MBS 5100-3031-A0DB04-4 |
| Height: | 33 |
| SCIP dossier no.: | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Compensated temp. range [°F] [max]: | 176 |
| Electrical connection: | Plug, Angular connector |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 69 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.1 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Pressure connection notes: | S přírubou |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -40 |
| Accuracy, max. [±FS%]: | 0.30 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air: | TRUE |
| Max. overpressure: | 200.0 |
| Pressure Male/Female: | VNĚJŠÍ |
| Suitable for water: | TRUE |
| Non-linearity BFSL [±FS%]: | 0.20 |
| Measuring range: | 0.00-100.00 |
| Depth: | 95 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | -40 |
| International Article Number: | 5702423198290 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 100.00 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 1450.00 |
| Feed pressure: | 100.00 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 185 |
| Intrinsically safe: | Ne |
| Test Signal: | Pin 3 |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 3.60 |
| Ambient temperature range [°C] [max]: | 85 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| High Clipping Level: | 22.40 |
| Degree of protection (IP): | IP65 |
| Overload pressure max. [bar]: | 200.0 |
| SCIP dossier product name: | AKS/MBS |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Adj. zero point and span: | Ne |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 24 |
| Supply voltage [V] DC [min]: | 9.00 |
| Ambient temperature range [°F] [max]: | 185 |
| Compensated temp. range [°C] [min]: | 0 |
| Explosion-proof: | FALSE |
| Compensated temp. range [°F] [min]: | 32 |
-
