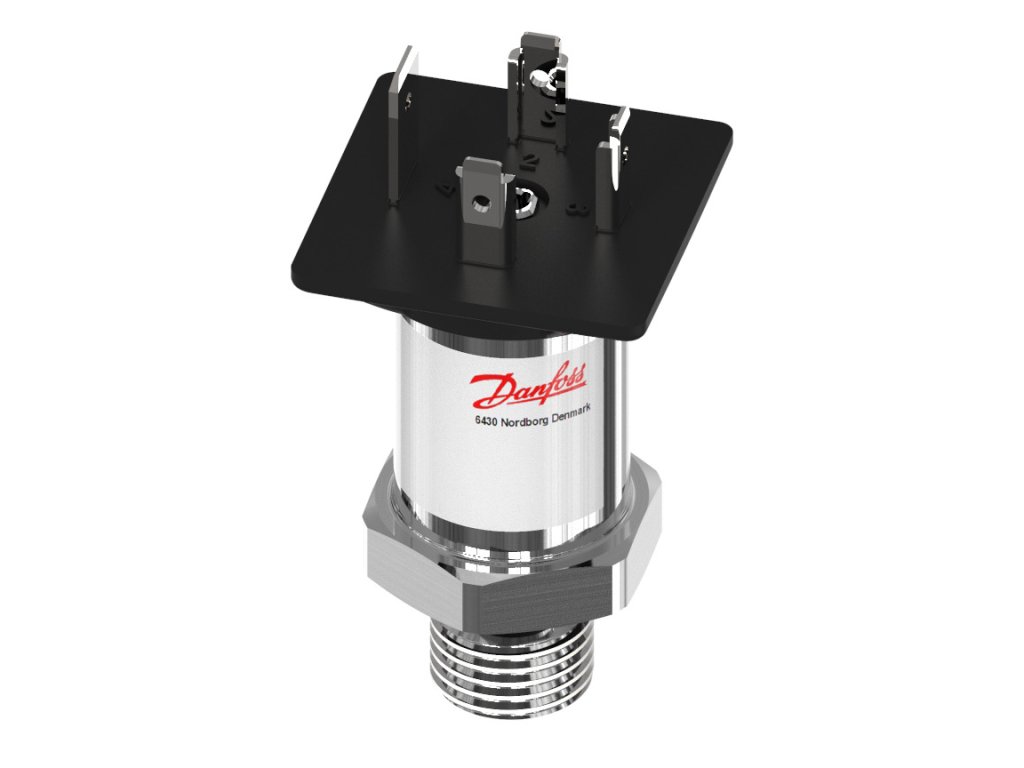

Tlakový snímač s vysílačem, MBS 1650, 0 bar - 16 bar, 0 psi - 232.06 psi
Kód: 063G2906Detailní popis produktu
Typ tlakového připojení: G, velikost tlakové přípojky: 1/4, Specifikační klíč: MBS 1650-2211-A0GB04
Doplňkové parametry
| Kategorie: | MBS 1600 / MBS 1650 |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5715162507773 |
| Overload pressure max. [psig]: | 696 |
| Burst pressure [bar]: | 640.0 |
| Burst pressure [psig]: | 9282 |
| Medium temperature range [°C] [max]: | 125 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable: | FALSE |
| Electrical connection size: | 4 piny |
| UL evaluated: | Yes |
| Specification key: | MBS 1650-2211-A0GB04 |
| Height: | 31 |
| Compensated temp. range [°F] [max]: | 257 |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 3852-E |
| Width: | 31 |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Electrical connection: | Angular connector |
| Output signal: | Current |
| Suitable for gases: | TRUE |
| Pressure connection notes: | A |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 125 |
| Suitable for air: | TRUE |
| Pressure connection HEX [mm]: | 22.0 |
| Pressure Male/Female: | Vnitřní |
| Suitable for water: | TRUE |
| Depth: | 31 |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | -40 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 16.00 |
| Packing format: | Multi balení |
| Approval: | C UL US UL Recognized |
| Pressure range [psi] [max]: | 232.06 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| REACH Candidate List substances: | No |
| Electrical connection standard: | EN 175301-803-A |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Medium temperature range [°F] [max]: | 257 |
| Pin surface material: | Sn |
| Pulse-snubber: | Yes |
| Pressure range [bar] [min]: | 0.00 |
| Ambient temperature range [°C] [max]: | 100 |
| Overload pressure max. [bar]: | 48.0 |
| Supply voltage [V] DC [max]: | 32.00 |
| Response time max. [ms]: | 1 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 48 |
| Supply voltage [V] DC [min]: | 8.00 |
| Ambient temperature range [°F] [max]: | 212 |
| Compensated temp. range [°C] [min]: | -40 |
| Explosion-proof: | FALSE |
| Compensated temp. range [°F] [min]: | -40 |
