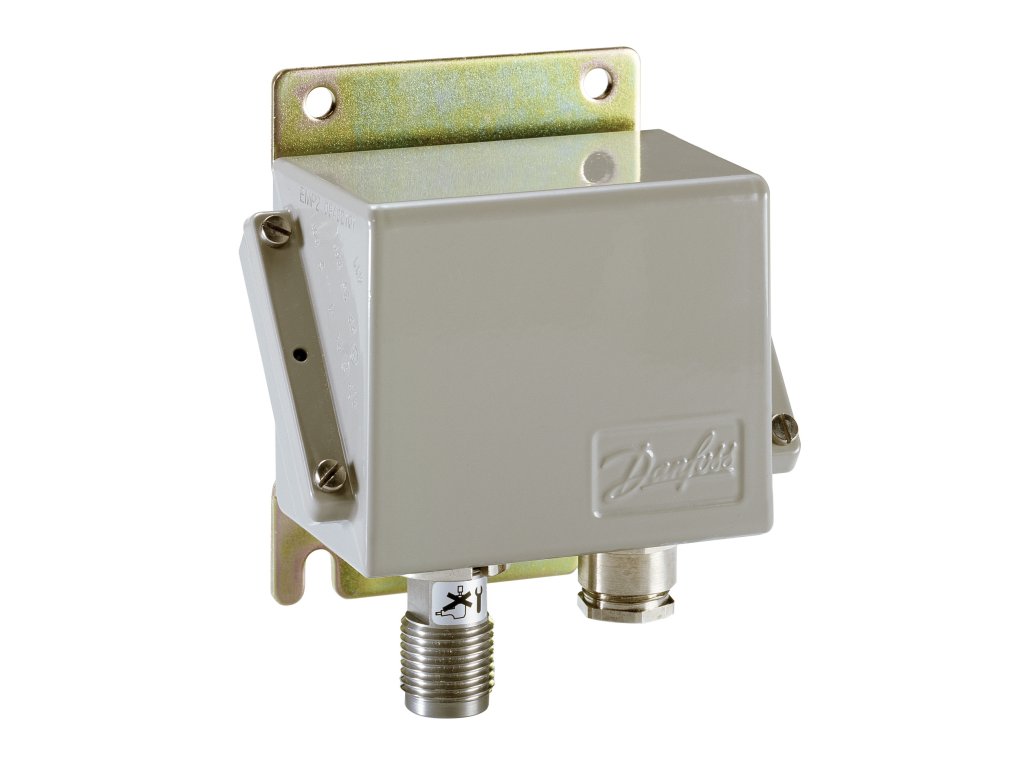

Tlakový snímač s vysílačem, EMP 2, 0 bar - 1 bar, 0 psi - 14.5 psi
Kód: 084G2103Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EMP 2 |
|---|---|
| Hmotnost: | 0.98 kg |
| EAN: | 5702423018116 |
| Medium temperature range [°C] [max]: | 70 |
| Readable: | FALSE |
| Cable length: | 0 |
| Electrical connection size: | Pg 13.5 |
| UL evaluated: | Yes |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | Ne |
| Specification key: | EMP 2-1011-F6CD24-2 |
| Height: | 141 |
| SCIP dossier no.: | 6010d1e2-f473-4af2-afdd-bb494bdd0100 |
| Compensated temp. range [°F] [max]: | 158 |
| Electrical connection: | Other, Svorkovnice |
| Pressure connection size: | 1/2 |
| Pressure connection standard: | EN 228-1 |
| Width: | 141 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -10 |
| Accuracy, typical [±FS%]: | 0.5 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Pressure connection notes: | EXT. G1/4 INT |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Gauge (relative) |
| Accuracy, max. [±FS%]: | 1.00 |
| Compensated temp. range [°C] [max]: | 70 |
| Suitable for air: | TRUE |
| Max. overpressure: | 3.2 |
| Pressure Male/Female: | Vnitřní/vnější |
| Suitable for water: | TRUE |
| Non-linearity BFSL [±FS%]: | 0.30 |
| Measuring range: | 0.00-1.00 |
| Depth: | 141 |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | 14 |
| International Article Number: | 5702423018116 |
| - common: | N |
| Pressure connection type: | G |
| Thread size: | 1/2 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 1.00 |
| Packing format: | Multi balení |
| Approval: | ABS |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 14.50 |
| Feed pressure: | 1.00 |
| Flange compression class: | Other |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | P |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 7(c)-I |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 158 |
| Intrinsically safe: | Ne |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 3.60 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| High Clipping Level: | 22.40 |
| Degree of protection (IP): | IP67 |
| Overload pressure max. [bar]: | 3.2 |
| SCIP dossier product name: | EMP |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 8 |
| Supply voltage [V] DC [min]: | 12.00 |
| Compensated temp. range [°C] [min]: | 0 |
| Explosion-proof: | FALSE |
| Compensated temp. range [°F] [min]: | 32 |
-
