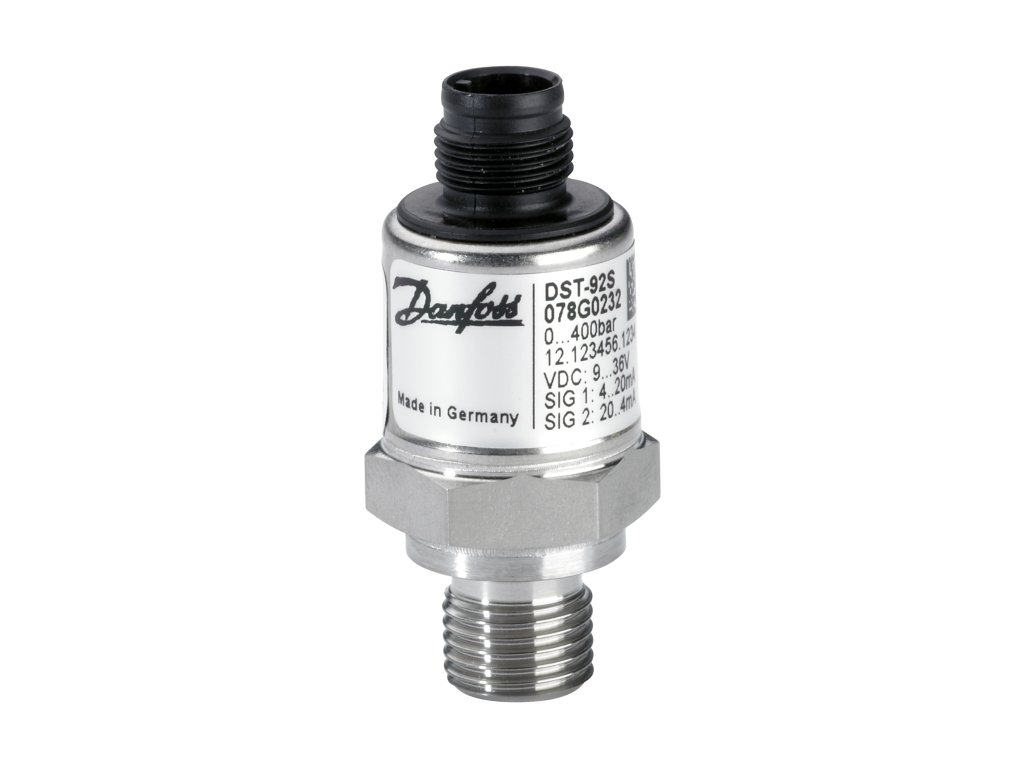

Tlakový snímač s vysílačem, DST P92S, 0 bar - 400 bar, 0 psi - 5800 psi
Kód: 078G1005Detailní popis produktu
Elektrické připojení: M12 x 1, Typ tlakového připojení: G, Velikost tlakové přípojky: 1/4, Specifikační klíč: P92S-0400-BAR-R-11-01-01Doplňkové parametry
| Kategorie: | DST P92S |
|---|---|
| Hmotnost: | 0.05 kg |
| EAN: | 5702428977326 |
| Overload pressure max. [psig]: | 11600 |
| Burst pressure [bar]: | 4000.0 |
| Burst pressure [psig]: | 58000 |
| Electrical conn. comments: | PBT |
| Medium temperature range [°C] [max]: | 125 |
| Readable: | FALSE |
| Cable length: | |
| Electrical connection size: | 5 pinů |
| UL evaluated: | Yes |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | P92S-0400-BAR-R-11-01-01 |
| Height: | 32 |
| Electrical connection: | Other, M12 x 1 |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 3852-E |
| Width: | 62 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Accuracy TEB [-40 - 80°C] ±FS: | 2.5 |
| Pressure connection notes: | TĚSNĚNÍ VITON |
| Enclosure rating IP: | IP67 |
| Accuracy TEB [-25 - 80°C] ±FS: | 1.5 |
| Pressure reference: | Gauge (relative) |
| Accuracy TEB [0 - 80°C] ±FS: | 1.0 |
| Start up time [ms]: | 40 |
| Suitable for air: | TRUE |
| Max. overpressure: | 800.0 |
| Pressure connection HEX [mm]: | 22.0 |
| Suitable for water: | TRUE |
| Measuring range: | 0.00-400.00 |
| Depth: | 55 |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | -104 |
| - common: | Pin 3 |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 400.00 |
| Packing format: | Multi balení |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 5800.00 |
| Feed pressure: | 400.00 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | No |
| Electrical connection standard: | IEC 61076-2-101 |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Medium temperature range [°F] [max]: | 185 |
| Pulse-snubber: | Yes |
| Pressure range [bar] [min]: | 0.00 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| Degree of protection (IP): | IP67 |
| Overload pressure max. [bar]: | 800.0 |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Response time max. [ms]: | 1 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 45 |
| Supply voltage [V] DC [min]: | 9.00 |
| Explosion-proof: | FALSE |
-
