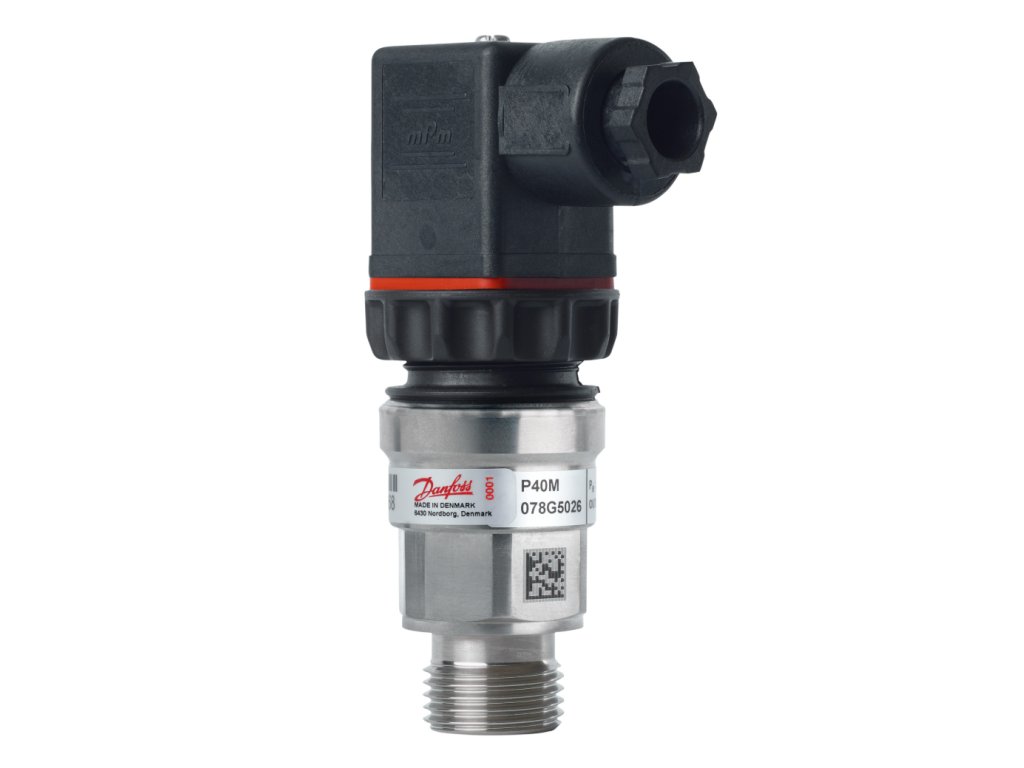

Tlakový snímač s vysílačem, DST P40M, 0 bar - 25 bar, 0 psi - 362.5 psi
Kód: 078G5030Detailní popis produktu
Typ tlakového připojení: G, velikost tlakové přípojky: 1/2, Specifikační klíč: DST P40M-2411-A1GB08-1Doplňkové parametry
| Kategorie: | DST P40M |
|---|---|
| Hmotnost: | 0.14 kg |
| EAN: | 5715162280133 |
| Burst pressure [bar]: | 50.0 |
| Medium temperature range [°C] [max]: | 85 |
| Readable: | FALSE |
| Cable length: | |
| Electrical connection size: | Pg 9 |
| UL evaluated: | Yes |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Specification key: | DST P40M-2411-A1GB08-1 |
| Height: | 96 |
| SCIP dossier no.: | 6b078679-471a-4330-8fd4-d63473b641b0 |
| Electrical connection: | Other, Angular connector |
| Pressure connection size: | 1/2 |
| Pressure connection standard: | ISO 1179-2 |
| Width: | 48 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -15 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Pressure connection notes: | A |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Gauge (relative) |
| Ambient temperature range [°C] [min]: | -25 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air: | TRUE |
| Max. overpressure: | 50.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Suitable for water: | TRUE |
| Measuring range: | 0.00-25.00 |
| Depth: | 55 |
| Output signal [mA] [min]: | 4 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| Thread size: | 1/2 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 25.00 |
| Packing format: | Multi balení |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 362.50 |
| Feed pressure: | 25.00 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Approval comments: | Marine approval: Yes |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Approval standard: | E10,IACS 7 |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Ambient temperature range [°C] [max]: | 85 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| Degree of protection (IP): | IP65 |
| Overload pressure max. [bar]: | 50.0 |
| SCIP dossier product name: | Sensor DST P40I + M |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 20 |
| Supply voltage [V] DC [min]: | 9.00 |
| Compensated temp. range [°C] [min]: | |
| Explosion-proof: | FALSE |
-
