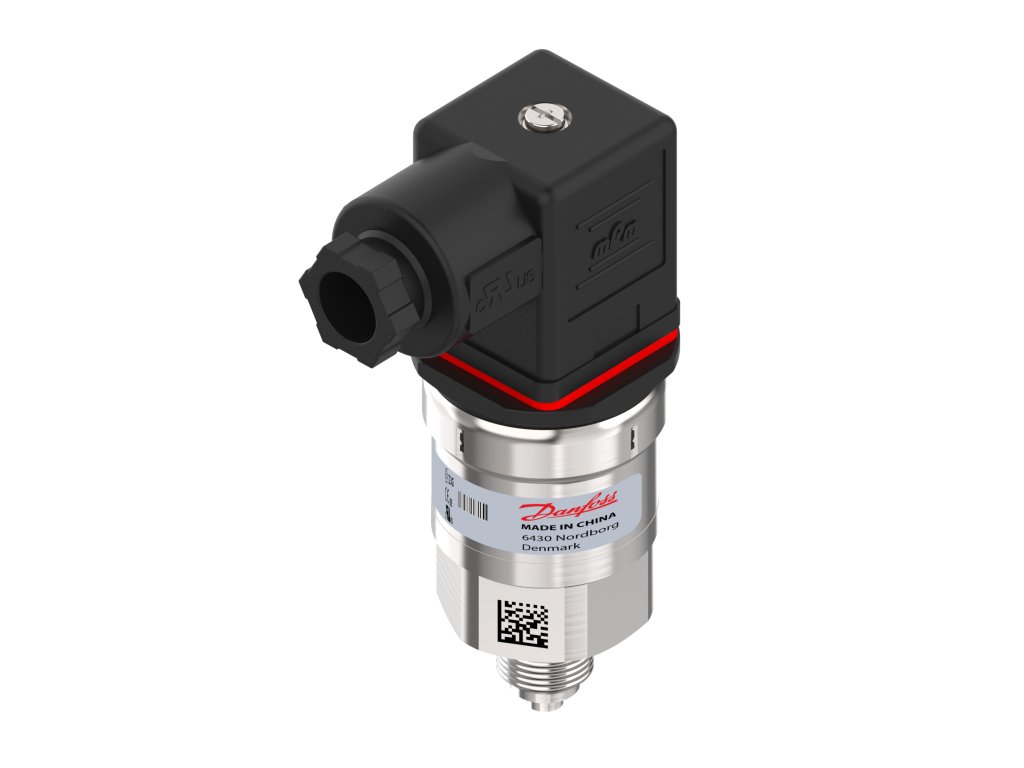

Tlakový snímač s vysílačem, DST P300, 0 bar - 10 bar, 0 psi - 145 psi
Kód: 076G1011Detailní popis produktu
Typ tlakového připojení: G, velikost tlakové přípojky: 1/4, Specifikační klíč: DST P300-2031-A1AB04-0
Doplňkové parametry
| Kategorie: | DST P300 |
|---|---|
| Hmotnost: | 0.15 kg |
| EAN: | 5702424505127 |
| Medium temperature range [°C] [max]: | 125 |
| Ambient temperature range [°F] [min]: | -40 |
| Readable: | FALSE |
| Cable length: | 0 |
| Electrical connection size: | Pg 9 |
| UL evaluated: | Yes |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Flush diaphragm: | Ne |
| Specification key: | DST P300-2031-A1AB04-0 |
| Height: | 54 |
| SCIP dossier no.: | cad3914f-8db1-488c-b0ad-3a20ac1ebb41 |
| Compensated temp. range [°F] [max]: | 212 |
| Electrical connection: | Plug, Angular connector |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | EN 837 |
| Width: | 54 |
| Measuring element: | Piezo |
| Medium temperature range [°C] [min]: | -40 |
| Accuracy, typical [±FS%]: | 0.5 |
| Output signal: | Current, 4 - 20 mA |
| Suitable for gases: | TRUE |
| Enclosure rating IP: | IP65 |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -40 |
| Accuracy, max. [±FS%]: | 1.00 |
| Compensated temp. range [°C] [max]: | 100 |
| Suitable for air: | TRUE |
| Max. overpressure: | 60.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Suitable for water: | TRUE |
| Measuring range: | 0.00-10.00 |
| Depth: | 54 |
| Output signal [mA] [min]: | 4 |
| Medium temperature range [°F] [min]: | -40 |
| International Article Number: | 5702424505127 |
| - common: | Pin 2 |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 10.00 |
| Packing format: | Multi balení |
| Approval: | ATEX |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 145.00 |
| Feed pressure: | 10.00 |
| Flange compression class: | Other |
| Electrical conn. Male/Female: | Vnitřní a vnější |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | EN 175301-803-A |
| Approval comments: | ATEX Ex ec IIA T4 Gc |
| Contain batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| CE evaluated: | Yes |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Medium temperature range [°F] [max]: | 257 |
| Intrinsically safe: | Ne |
| Pulse-snubber: | No |
| Fault signal level: | 21.50 |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 3.80 |
| Ambient temperature range [°C] [max]: | 85 |
| Supply voltage: | 32.00 |
| Suitable for glycol: | TRUE |
| High Clipping Level: | 20.50 |
| Degree of protection (IP): | IP65 |
| Overload pressure max. [bar]: | 60.0 |
| SCIP dossier product name: | DST P300 |
| Overload pressure max. [psi]: | 870 |
| Supply voltage [V] DC [max]: | 32.00 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Adj. zero point and span: | Ne |
| Response time max. [ms]: | 4 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 14 |
| Supply voltage [V] DC [min]: | 9.00 |
| Ambient temperature range [°F] [max]: | 185 |
| Compensated temp. range [°C] [min]: | -40 |
| Explosion-proof: | FALSE |
| Compensated temp. range [°F] [min]: | -40 |
-
