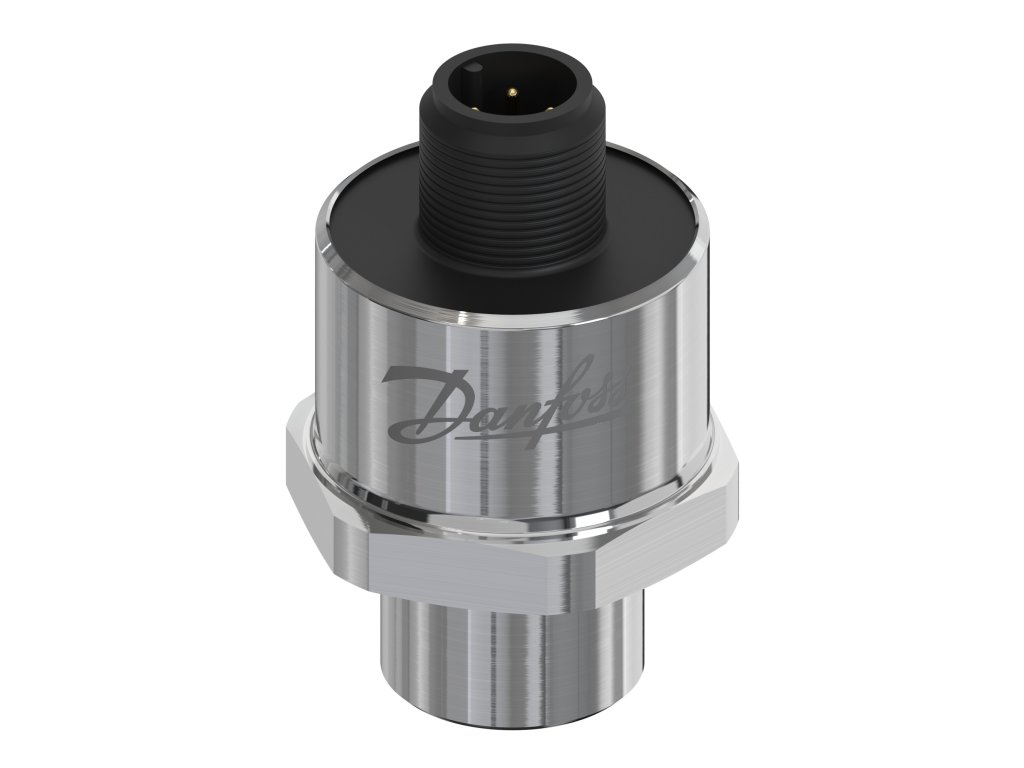

Tlakový snímač s vysílačem, DST P110, 0 bar - 50 bar, 0 psi - 725 psi
Kód: 075G4206Detailní popis produktu
Elektrické připojení: M12 x 1, typ tlakového připojení: UNF, velikost tlakové přípojky: 7/16-20, Specifikační klíč: DST P110-2731-A5BF08-0Doplňkové parametry
| Kategorie: | DST P110 |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5715162707081 |
| Medium temperature range [°C] [max]: | 100 |
| Readable: | FALSE |
| Electrical connection size: | 4 piny |
| Specification key: | DST P110-2731-A5BF08-0 |
| Pressure connection size: | 7/16-20 |
| Pressure connection standard: | SAE J513 45° flérový |
| Identical product: | 075G1254 |
| Medium temperature range [°C] [min]: | -40 |
| Electrical connection: | M12 x 1 |
| Output signal: | Current |
| Suitable for gases: | TRUE |
| Enclosure rating IP: | IP67 |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 80 |
| Suitable for air: | TRUE |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | VNĚJŠÍ |
| Suitable for water: | TRUE |
| TEB inside CTR ±FS [%]: | 2.00 |
| Output signal [mA] [min]: | 4 |
| International Article Number: | 5715162707081 |
| - common: | Pin 3 |
| Pressure connection type: | UNF |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 50.00 |
| Packing format: | Průmyslové balení |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized |
| Pressure range [psi] [max]: | 725.00 |
| Flange compression class: | Other |
| REACH Candidate List substances: | No |
| Electrical connection standard: | IEC 61076-2-101 |
| Contains batteries: | No |
| Output signal [mA] [max]: | 20 |
| + supply: | Pin 1 |
| With display: | FALSE |
| Electrical Connector Color: | Black |
| CE evaluated: | Yes |
| Housing material: | 304L |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Wetted part material: | 304L/316L |
| Pulse-snubber: | No |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 3.80 |
| Ambient temperature range [°C] [max]: | 85 |
| High Clipping Level: | 21.50 |
| Overload pressure max. [bar]: | 200.0 |
| Overload pressure max. [psi]: | 2900 |
| Supply voltage [V] DC [max]: | 28.00 |
| Response time max. [ms]: | 2 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 60 |
| Supply voltage [V] DC [min]: | 8.00 |
| Compensated temp. range [°C] [min]: | -40 |
-
Pressure transmitter, type DST P110: Datový list
-
Pressure transmitters DST P1XX: Instalační příručka
