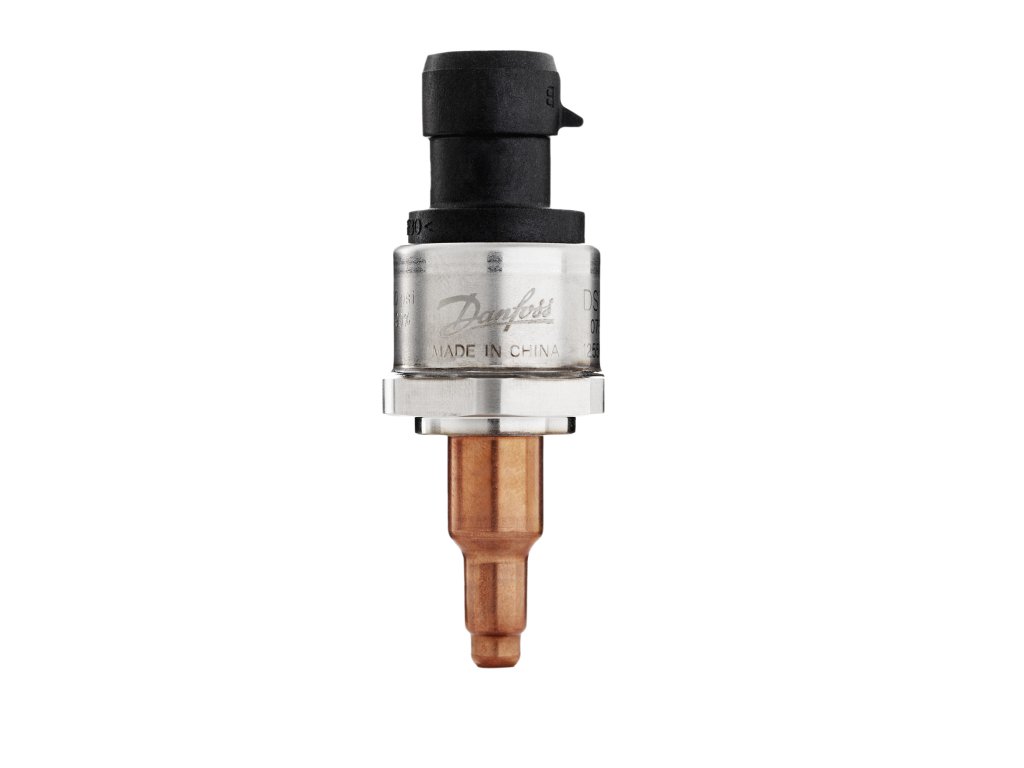

Tlakový snímač s vysílačem, DST P110, 0 bar - 30 bar, 0 psi - 435 psi
Kód: 075G4050Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | DST P110 |
|---|---|
| Hmotnost: | 0.06 kg |
| EAN: | 5702424050184 |
| Medium temperature range [°C] [max]: | 135 |
| Readable: | FALSE |
| Cable length: | 0 |
| Electrical connection size: | 3 piny |
| Specification key: | DST P110-C836-C2EB07-0 |
| Electrical connection: | Other, Kulatý Packard Metri-Pack |
| Pressure connection size: | Pájecí trubka |
| Pressure connection standard: | Pro pájecí trubku |
| Ratiometric of Vsupply [%] [max]: | 90.0 |
| Measuring element: | Piezo |
| Identical product: | 075G1071 |
| Medium temperature range [°C] [min]: | -40 |
| Output signal: | Ratio metric, Other |
| Suitable for gases: | TRUE |
| Enclosure rating IP: | IP69K |
| Pressure reference: | Sealed gauge |
| Ambient temperature range [°C] [min]: | -40 |
| Compensated temp. range [°C] [max]: | 125 |
| Suitable for air: | TRUE |
| Max. overpressure: | 120.0 |
| Pressure connection HEX [mm]: | 27.0 |
| Pressure Male/Female: | Vnitřní |
| Suitable for water: | TRUE |
| Measuring range: | 0.00-30.00 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| TEB inside CTR ±FS [%]: | 2.50 |
| International Article Number: | 5702424050184 |
| - common: | Pin A |
| Pressure connection type: | Pájení, ODM |
| Thread size: | Other |
| + output: | Pin C |
| China RoHS compliance: | Out of scope |
| Pressure range [bar] [max]: | 30.00 |
| Packing format: | Průmyslové balení |
| In scope of WEEE: | Yes |
| Approval: | C UL US UL Recognized |
| With temperature sensor: | TRUE |
| Pressure range [psi] [max]: | 435.00 |
| Feed pressure: | 30.00 |
| Flange compression class: | Other |
| Suitable for steam: | TRUE |
| REACH Candidate List substances: | No |
| Electrical connection standard: | 150.2 SERIES |
| Contains batteries: | No |
| + supply: | Pin B |
| With display: | FALSE |
| Electrical Connector Color: | Black |
| CE evaluated: | Yes |
| Housing material: | 304L |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Wetted part material: | 304L/316L |
| Pulse-snubber: | No |
| Ratiometric of Vsupply [%] [min]: | 10.0 |
| Fault signal level: | 2.00 |
| Pressure range [bar] [min]: | 0.00 |
| Low Clipping level: | 4.00 |
| Ambient temperature range [°C] [max]: | 125 |
| Suitable for glycol: | TRUE |
| High Clipping Level: | 99.00 |
| Degree of protection (IP): | IP69K |
| Overload pressure max. [bar]: | 120.0 |
| Overload pressure max. [psi]: | 1740 |
| Suitable for oil: | TRUE |
| Suitable for ammonia: | TRUE |
| Response time max. [ms]: | 2 |
| Supply voltage [V] DC: | 5.00 |
| Pressure range [psi] [min]: | 0.00 |
| Quantity per packing format: | 55 |
| Compensated temp. range [°C] [min]: | -40 |
| Explosion-proof: | FALSE |
-
Pressure transmitter, type DST P110: Datový list
-
Pressure transmitters DST P1XX: Instalační příručka
