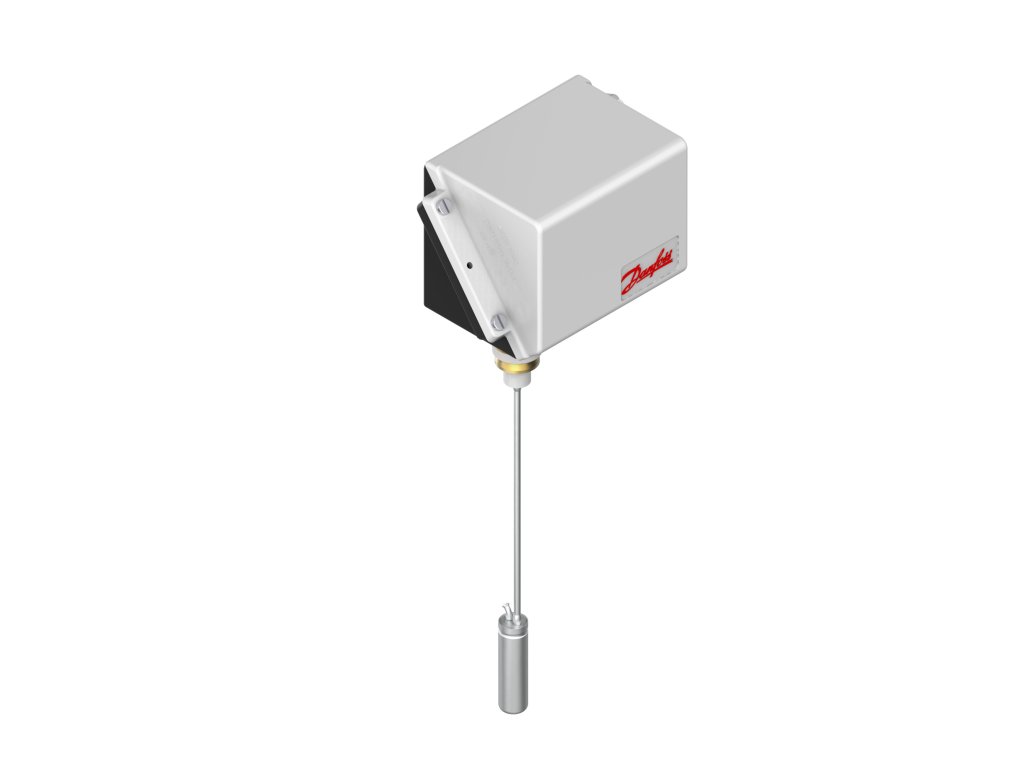

Termostat, CAS1080
Kód: 060L502066Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | CAS |
|---|---|
| Hmotnost: | 1.06 kg |
| EAN: | 5702423151790 |
| Electrical conn. comments: | Kovová kabelová průchodka |
| Ambient temperature range [°F] [min]: | -32 |
| Max. sensor temperature [°F]: | 428.0 |
| Electrical connection size: | Pg 13.5 |
| Height: | 138 |
| Contact function: | SPDT |
| SCIP dossier no.: | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Charge type: | Adsorpce |
| Width: | 138 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Temperature range [°F] [min]: | 158 |
| Differential type: | Pevná (max. hodnota) |
| Serviceable: | Ne |
| Reset function: | Auto |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Differential (FS) [K]: | 3.0 |
| Product accessories: | Příslušenství spínače |
| Parts included: | Ochranná jímka senzoru |
| Sensor pocket material: | Mosaz |
| Sensor size (Ø x L) [in]: | 1/2 x 2 1/2 in |
| Sensor pocket length min. [in]: | 7 7/8 in |
| Depth: | 138 |
| Contact rating: | AC14=0.1 A, 220 V |
| IFTTT support available: | FALSE |
| Compatible with Apple HomeKit: | FALSE |
| Compatible with Google Assistant: | FALSE |
| Sensor pocket length min. [mm]: | 200 |
| Product description: | Termostat |
| China RoHS compliance: | Yes |
| Factory setting type: | Vyhrazeno |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi balení |
| Max. sensor temperature [°C]: | 220 |
| Approval: | ABS |
| Sensor pocket conn. size: | 3/4 |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EU RoHS compliance: | Out of scope |
| Sensor pocket conn. type: | G |
| Sensor size (Ø x L) [mm]: | 13 x 63 mm |
| Alarm Signal: | Stoupající |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP): | IP67 |
| Factory setting (FS) [°C]: | 80.0 |
| Temperature range [°F] [max]: | 248 |
| Temperature range [°C] [min]: | 70 |
| Sensor pocket conn. length[mm]: | 75 |
| Connection for pocket or hose: | M 18 x 1.5 |
| Sensor type: | Pevný senzor |
| Compatible with Amazon Alexa: | FALSE |
| Temperature range [°C] [max]: | 120 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Explosion-proof: | FALSE |
-
