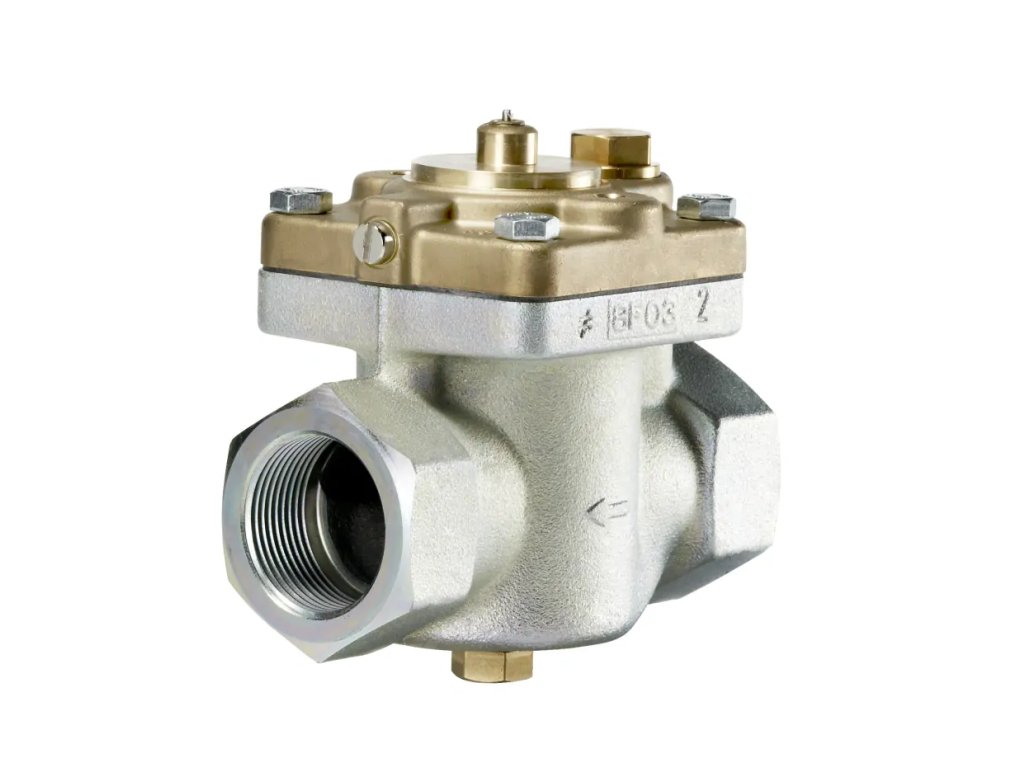

Těleso ventilu pro regulaci vody, WVH, 1 1/2
Kód: 016D5040Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Ventily WVTS |
|---|---|
| Hmotnost: | 5.88 kg |
| EAN: | 5702422023142 |
| Medium temperature range [°C] [max]: | 90 |
| Connection standard: | ISO 228-1 |
| China RoHS compliance: | Out of scope |
| Packing format: | Jednotlivé balení |
| Kv value [m³/h]: | 21.000 |
| Approval: | EAC |
| Differential pressure [bar] [min]: | 0.500 |
| SCIP dossier no.: | fc3470cc-5810-44ef-89ac-d393613841da |
| Material quality: | Other |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 4.000 |
| Contains batteries: | No |
| Max. test pressure [psig]: | 232.0 |
| With thermometer: | FALSE |
| Media: | Neutrální média |
| Medium temperature range [°C] [min]: | -25 |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| With insulation: | FALSE |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly vodního ventilu |
| Orifice size fraction [in]: | 1 1/2 in |
| Surface protection: | Other |
| Used for product: | WVS 40 |
| Differential pressure [psi] [max]: | 58.000 |
| Max. test pressure [bar] Pe: | 16.0 |
| Product accessories: | Obecné příslušenství |
| Connection type: | G |
| Parts included: | Šrouby příruby |
| Connection size [in]: | 1 1/2 |
| SCIP dossier product name: | WV Valves |
| With position indicator: | FALSE |
| Parts Program name: | WVS |
| Body material: | Litina |
| Differential pressure [psi] [min]: | 7.200 |
| Quantity per packing format: | 1 |
| Orifice size [mm]: | 40.00 |
| Medium temperature range [°F] [min]: | -13 |
| Max. Working Pressure [psig]: | 145 |
-
Water regulating valves type WVTS: Datový list
-
Water regulating valves type WVTS: Datový list
-
Pressure operated water valve, type WVS 32-100: Instalační příručka
