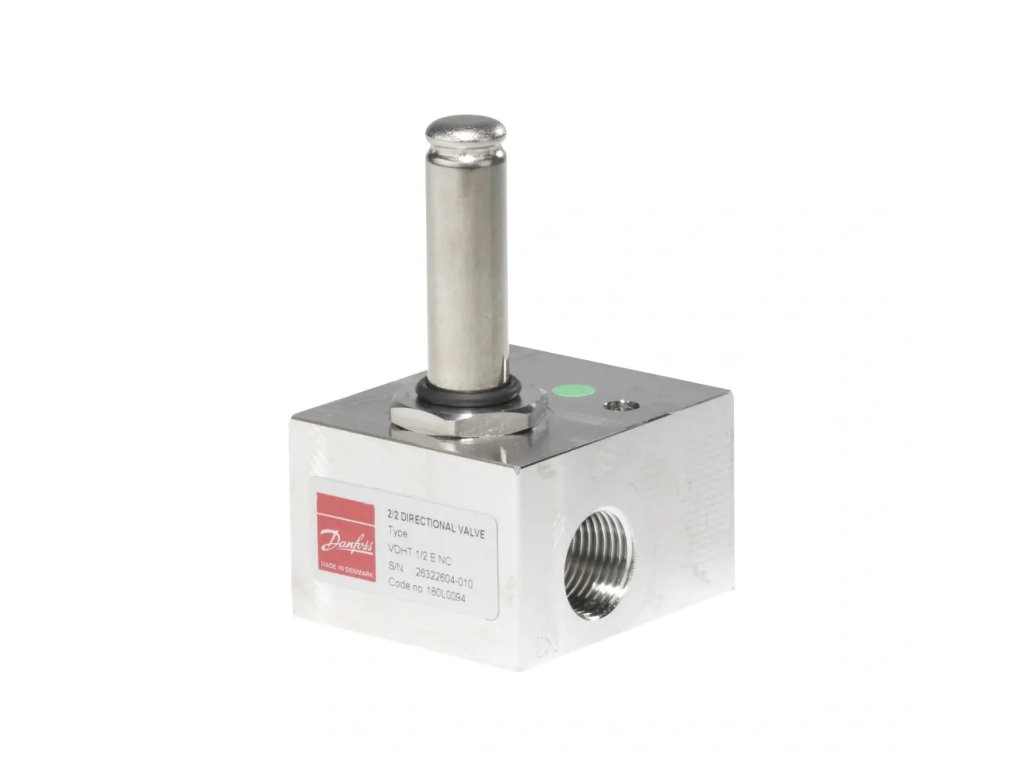

Solenoid operated valves, VDHT 1/2 E NC, Industrial
Kód: 180L0094Detailní popis produktu
Průtok [gpm] [Max]: 16, Průtok [l/min] [Max]: 60, Provozní tlak [barg] [Max]: 160, Provozní tlak [psig] [Max]: 2400, Standard připojení: BSP
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 1.11 kg |
| EAN: | 5715162672693 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 0.000 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1/2 in |
| Actuator size [mm]: | 13.5 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| UL evaluated: | Yes |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Approval: | UL |
| Media temperature [°F] [Min]: | 36 |
| Height: | 93 |
| Type designation: | VDHT 1/2 E NC |
| SCIP dossier no.: | 3239369c-314a-4770-a216-7ff7ac4c6353 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Piston diameter Ø [mm]: | 18 |
| Inlet connection size [in]: | 1/2 in |
| Number of ways: | 2/2 |
| Function: | NC |
| Contain batteries: | No |
| Width: | 127 |
| Operating pressure [barg] [Max]: | 160 |
| Flow [l/min] [Max]: | 60.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 4 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 0.00 |
| Operating pressure [psig] [Max]: | 2400 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 16.000 |
| Operating pressure [psig] [Min]: | 51 |
| Spare part: | TRUE |
| Serviceable: | Ano |
| Seal Material: | FKM |
| Operation: | Ovládaný pilotním ventilem |
| Material type: | Neutrální média |
| Accessory: | TRUE |
| Connection type: | Závit |
| Direction: | Přímý |
| SCIP dossier product name: | VDHT NC BSP Valves |
| Parts Program name: | VDHT |
| Body material: | AISI 304 |
| Application: | Industrial |
-
