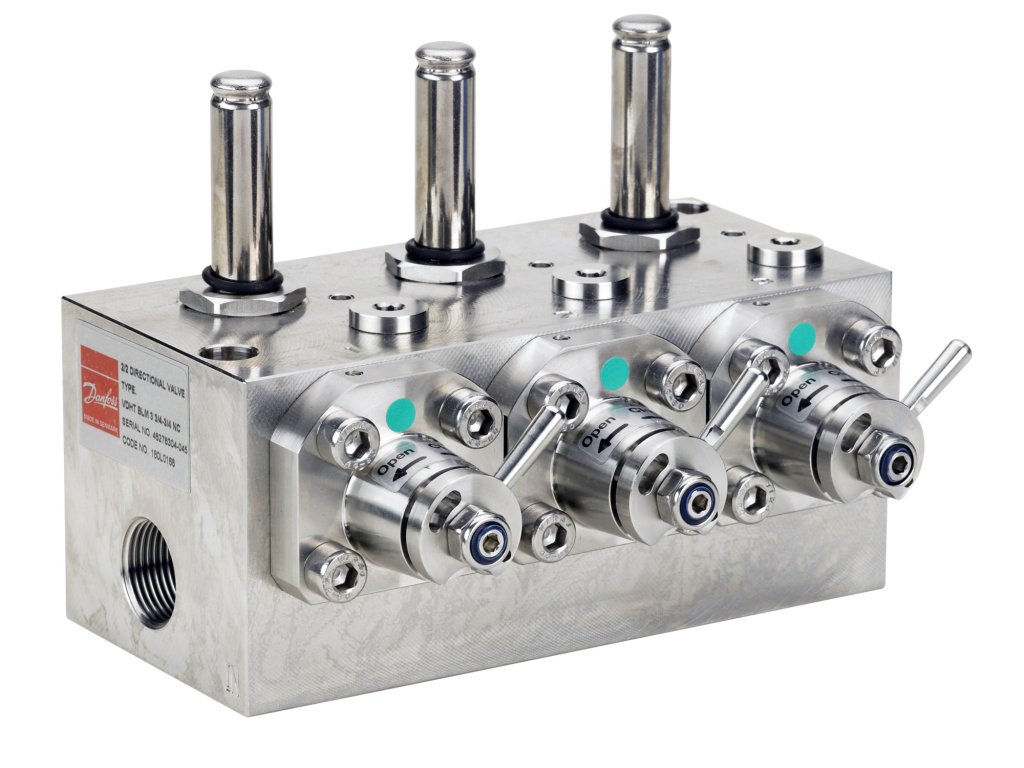

Solenoid operated valves, VDHT BLM 2 1-1 NC, Industrial
Kód: 180L0199Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 7.39 kg |
| EAN: | 5715162672822 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Height: | 207 |
| Type designation: | VDHT BLM 2 1-1 NC |
| REACH Candidate List substances: | No |
| Piston diameter Ø [mm]: | 35 |
| Inlet connection size [in]: | 1 |
| Function: | NC |
| Contain batteries: | No |
| Width: | 207 |
| Operating pressure [barg] [Max]: | 140 |
| Flow [l/min] [Max]: | 150.00 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Operating pressure [psig] [Max]: | 2030 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 40.000 |
| Spare part: | TRUE |
| Accessory: | TRUE |
| Connection type: | G |
| Application: | Industrial |
-
CETOP 3 Directional Control Valve VDHT 30 EC 2/2: Instalační příručka
-
Solenoid valve VDHT BSP: Datový list
