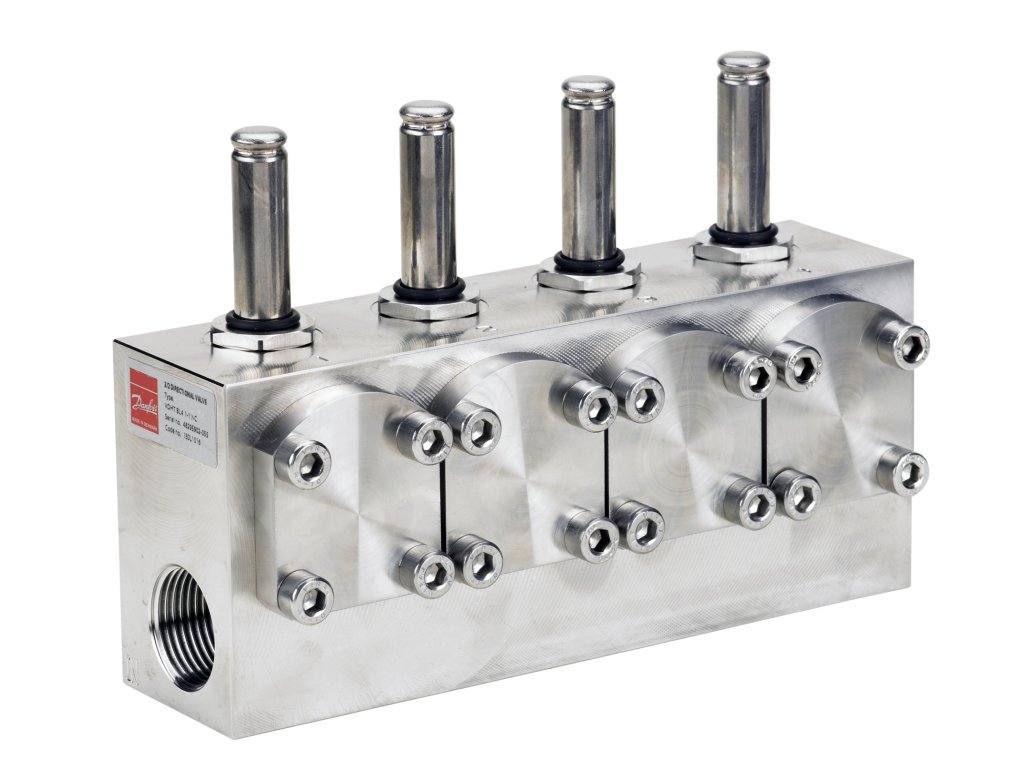

Solenoid operated valves, VDHT BL4 HP 1-1 NC, Industrial
Kód: 180L1029Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 8.78 kg |
| EAN: | 5715162674017 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Height: | 260 |
| Type designation: | VDHT BL4 HP 1-1 NC |
| REACH Candidate List substances: | No |
| Piston diameter Ø [mm]: | 35 |
| Inlet connection size [in]: | 1 |
| Contain batteries: | No |
| Width: | 260 |
| Operating pressure [barg] [Max]: | 210 |
| Flow [l/min] [Max]: | 150.00 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Operating pressure [psig] [Max]: | 3000 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 40.000 |
| Spare part: | TRUE |
| Accessory: | TRUE |
| Application: | Industrial |
-
CETOP 3 Directional Control Valve VDHT 30 EC 2/2: Instalační příručka
-
Solenoid valve VDHT BSP: Datový list
