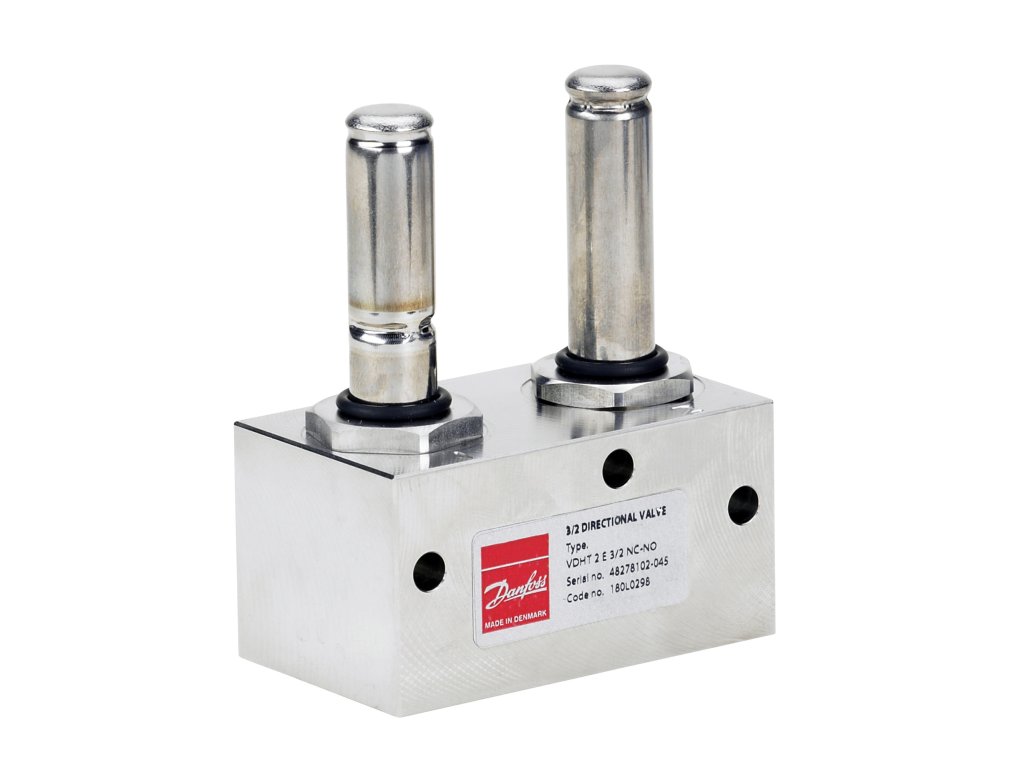

Solenoid operated valves, VDHT 2 E 3/2 NC-NO, Industrial
Kód: 180L0298Detailní popis produktu
Průtok [gpm] [Max]: 0.5, Průtok [l/min] [Max]: 2, Provozní tlak [barg] [Max]: 80, Provozní tlak [psig] [Max]: 1150, Standard připojení: BSP, Vstup - rozměr připojení [in]: 1/4 in, Výstup - rozměr připojení [in]: 1/4 in
Doplňkové parametry
| Kategorie: | VDHT 3/2 |
|---|---|
| Hmotnost: | 1.25 kg |
| EAN: | 5715162673805 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 0.000 |
| Closing Time [ms] [Max]: | 250 |
| Closing Time [ms] [Min]: | 250 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1/4 in |
| Actuator size [mm]: | 13.5 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 37 |
| Height: | 128 |
| Drain connection size [in]: | 0.250 |
| Type designation: | VDHT 2 E 3/2 NC-NO |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1/4 in |
| Number of ways: | 3/2 |
| Opening time [ms] [Max]: | 250 |
| Function: | NC |
| Contain batteries: | No |
| Opening time [ms] [Min]: | 250 |
| Width: | 128 |
| Operating pressure [barg] [Max]: | 80 |
| Flow [l/min] [Max]: | 2.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 1 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 0.00 |
| Operating pressure [psig] [Max]: | 1150 |
| Media temperature [°C] [Max]: | 50 |
| Flow [gpm] [Max]: | 0.500 |
| Operating pressure [psig] [Min]: | 15 |
| Spare part: | TRUE |
| Serviceable: | Ano |
| Seal Material: | FKM |
| Operation: | Přímý |
| Material type: | Neutrální média |
| Accessory: | TRUE |
| Connection type: | Závit |
| Direction: | Přímý |
| Parts Program name: | VDHT |
| Body material: | AISI 304 |
| Application: | Industrial |
-
VDHT Solenoid Valves Standard NPT Thread: Datový list
-
3-2_way Zone Drain valves VDHT 2E_15E-15EC: Datový list
-
VDHT Solenoid Valves Standard NPT Thread: Datový list
-
Directional valve - CETOP 3 VDHT 15 EC 3/2" Soft charge: Instalační příručka
-
