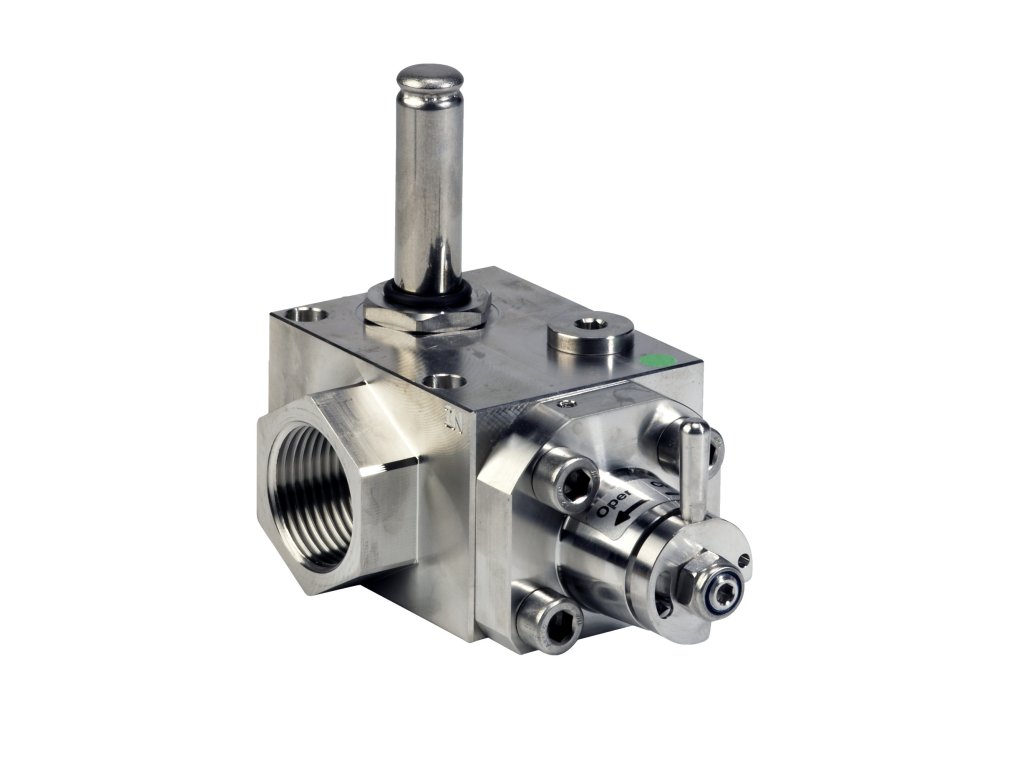

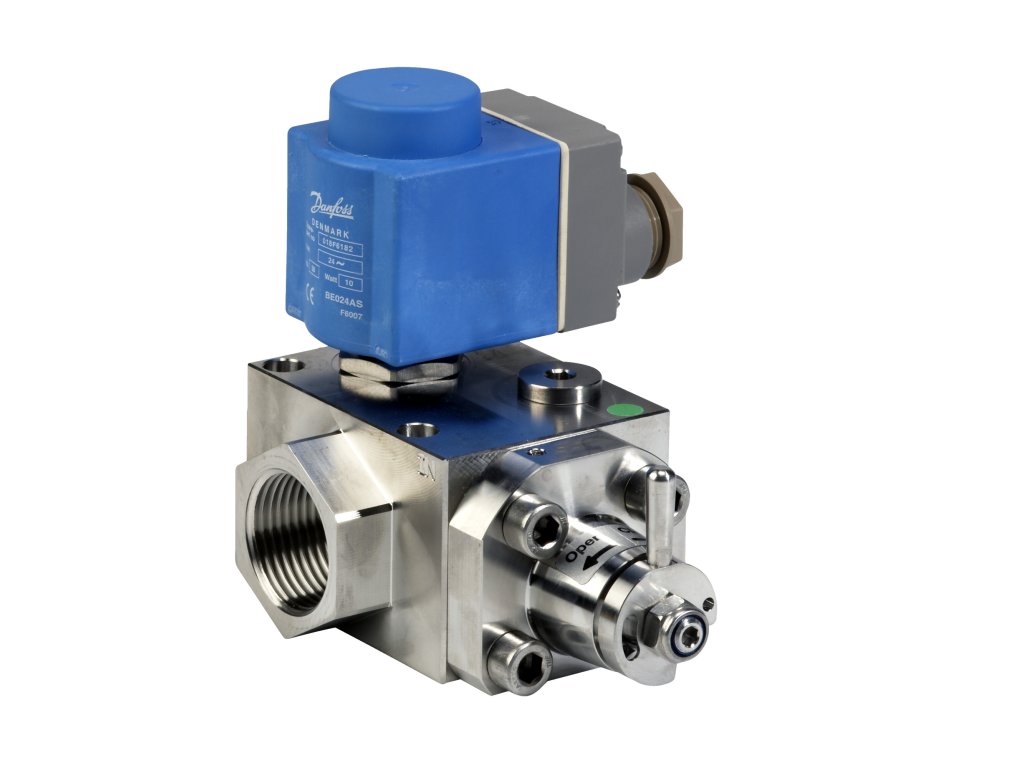

Solenoid operated valves, VDHT 1 EAM NC, Industrial
Kód: 180L0110Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDHT BSP |
|---|---|
| Hmotnost: | 2.31 kg |
| EAN: | 5715162671511 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 0.000 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1 palec |
| Actuator size [mm]: | 13.5 |
| Product description: | Solenoid operated valves |
| Connection standard: | BSP |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 194 |
| Media temperature [°F] [Min]: | 36 |
| Height: | 130 |
| Type designation: | VDHT 1 EAM NC |
| REACH Candidate List substances: | No |
| Piston diameter Ø [mm]: | 35 |
| Inlet connection size [in]: | 1 palec |
| Number of ways: | 2/2 |
| Function: | NC |
| Contain batteries: | No |
| Width: | 135 |
| Operating pressure [barg] [Max]: | 140 |
| Flow [l/min] [Max]: | 150.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 4 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 0.00 |
| Operating pressure [psig] [Max]: | 2030 |
| Media temperature [°C] [Max]: | 90 |
| Flow [gpm] [Max]: | 40.000 |
| Operating pressure [psig] [Min]: | 51 |
| Spare part: | TRUE |
| Serviceable: | Ano |
| Seal Material: | FKM |
| Operation: | Ovládaný pilotním ventilem |
| Material type: | Neutrální média |
| Accessory: | TRUE |
| Connection type: | Závit |
| Direction: | Rohový |
| Parts Program name: | VDHT |
| Body material: | AISI 304 |
| Application: | Industrial |
-
