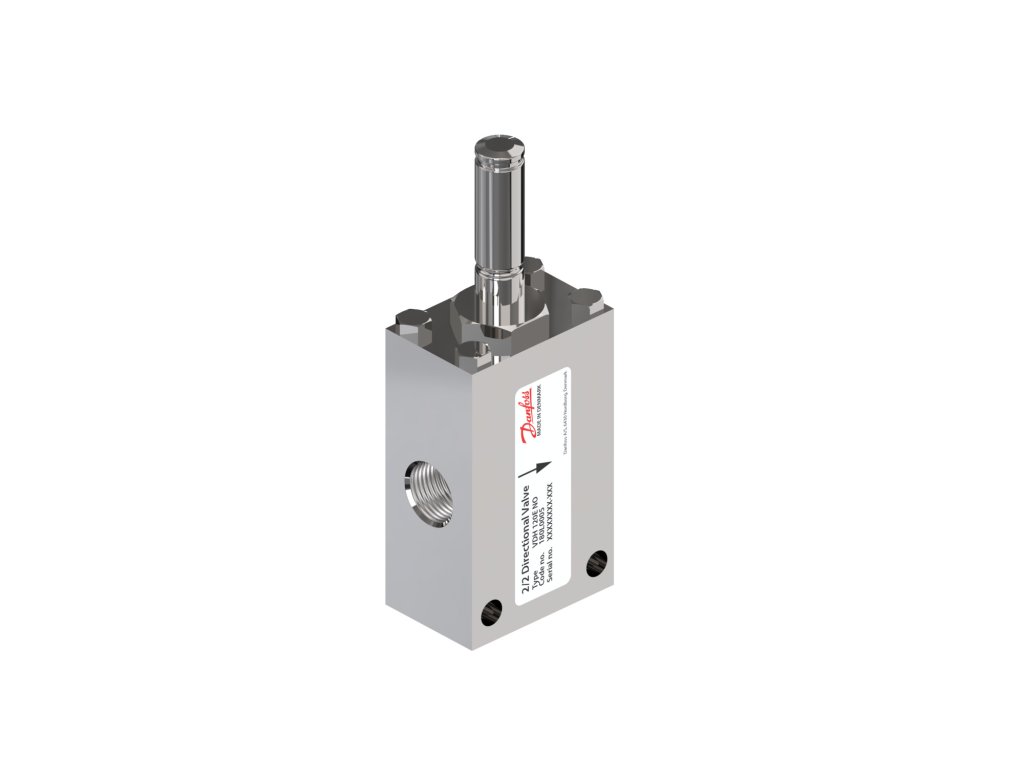

Solenoid operated valves, VDH 120 E NO, Hydraulic
Kód: 180L0005Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | VDH 2/2 |
|---|---|
| Hmotnost: | 1.43 kg |
| EAN: | 5715162675915 |
| Media temperature [°C] [Min]: | 3 |
| Flow [gpm] [Min]: | 1.300 |
| Closing Time [ms] [Max]: | 400 |
| Type of accessory/spare part: | Other |
| Outlet connection size [in]: | 1/2 in |
| Actuator size [mm]: | 13.5 |
| Product description: | Solenoid operated valves |
| Connection standard: | Cetop 3 |
| China RoHS compliance: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 37 |
| Height: | 91 |
| Type designation: | VDH 120 E NO |
| REACH Candidate List substances: | No |
| Piston diameter Ø [mm]: | 18 |
| Inlet connection size [in]: | 1/2 in |
| Number of ways: | 2/2 |
| Opening time [ms] [Max]: | 150 |
| Function: | NO |
| Contain batteries: | No |
| Width: | 91 |
| CE evaluated: | Out of scope |
| Operating pressure [barg] [Max]: | 140 |
| Flow [l/min] [Max]: | 120.00 |
| EU RoHS exemption clause: | No |
| Operating pressure [barg] [Min]: | 1 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 5.00 |
| Operating pressure [psig] [Max]: | 2030 |
| Media temperature [°C] [Max]: | 50 |
| Flow [gpm] [Max]: | 32.000 |
| Operating pressure [psig] [Min]: | 15 |
| Spare part: | TRUE |
| Serviceable: | Ano |
| Seal Material: | FKM |
| Operation: | Ovládaný pilotním ventilem |
| Material type: | Neutrální média |
| Accessory: | TRUE |
| Connection type: | Závit |
| Direction: | Přímý |
| Parts Program name: | VDH |
| Body material: | AISI 304 |
| Application: | Hydraulic |
-
