    Domů / Danfoss průmyslová automatizace / Snímače tlaku / MBS 3000 / MBS 3050 / Tlakový snímač s vysílačem, MBS 3000, 0 bar - 100 bar, 0 psi - 1450 psi

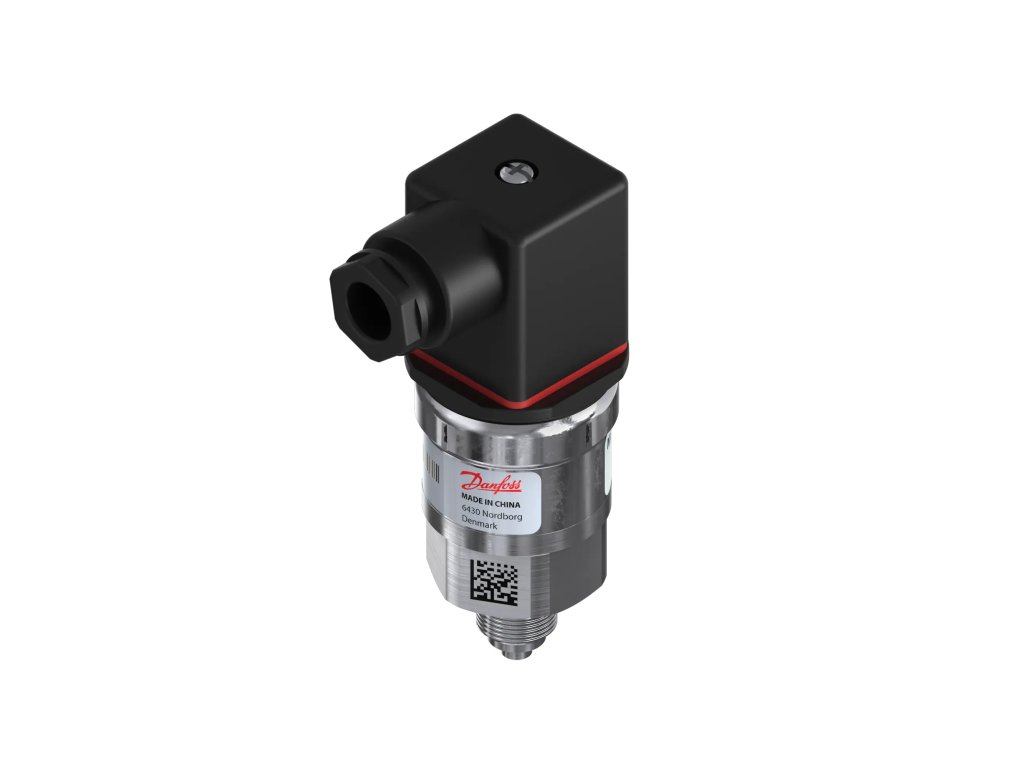

    Tlakový snímač s vysílačem, MBS 3000, 0 bar - 100 bar, 0 psi - 1450 psi

    Kód: 060G1107
    Neohodnoceno
    Tlakový snímač s vysílačem, MBS 3000, 0 bar - 100 bar, 0 psi - 1450 psi
    4 621 Kč
    Momentálně nedostupné

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: MBS 3000 / MBS 3050
    Hmotnost: 0.15 kg
    EAN: 5702423057863
    Medium temperature range [°C] [max]: 85
    Ambient temperature range [°F] [min]: -40
    Readable: FALSE
    Cable length: 0
    Electrical connection size: Pg 9
    UL evaluated: Yes
    Connection: External thread cylindrical BSPP-G (ISO 228-1)
    Flush diaphragm: Ne
    Specification key: MBS 3000-3031-A1AB04-0
    Height: 54
    SCIP dossier no.: 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
    Compensated temp. range [°F] [max]: 176
    Electrical connection: Plug, Angular connector
    Pressure connection size: 1/4
    Pressure connection standard: EN 837
    Width: 55
    Measuring element: Piezo
    Medium temperature range [°C] [min]: -40
    Accuracy, typical [±FS%]: 0.5
    Output signal: Current, 4 - 20 mA
    Suitable for gases: TRUE
    Enclosure rating IP: IP65
    Pressure reference: Sealed gauge
    Ambient temperature range [°C] [min]: -40
    Accuracy, max. [±FS%]: 1.00
    Compensated temp. range [°C] [max]: 80
    Suitable for air: TRUE
    Max. overpressure: 600.0
    Pressure connection HEX [mm]: 27.0
    Pressure Male/Female: Vnitřní
    Suitable for water: TRUE
    Non-linearity BFSL [±FS%]: 0.50
    Measuring range: 0.00-100.00
    Depth: 140
    EEE category: 5 small equipment (any external dimension <lt/> 50 cm)
    Output signal [mA] [min]: 4
    Medium temperature range [°F] [min]: -40
    International Article Number: 5702423057863
    - common: Pin 2
    Pressure connection type: G
    Thread size: 1/4 inch
    China RoHS compliance: Out of scope
    Pressure range [bar] [max]: 100.00
    Packing format: Multi balení
    In scope of WEEE: Yes
    Approval: ATEX
    With temperature sensor: TRUE
    Pressure range [psi] [max]: 1450.00
    Feed pressure: 100.00
    Flange compression class: Other
    Electrical conn. Male/Female: Vnitřní a vnější
    Suitable for steam: TRUE
    REACH Candidate List substances: Lead (CAS no. 7439-92-1)
    Electrical connection standard: EN 175301-803-A
    Approval comments: ATEX Ex ec IIA T4 Gc
    Contain batteries: No
    Output signal [mA] [max]: 20
    + supply: Pin 1
    With display: FALSE
    CE evaluated: Yes
    EU RoHS exemption clause: 6(c)
    EU RoHS compliance: Yes with exemptions
    Medium temperature range [°F] [max]: 185
    Intrinsically safe: Ne
    Pulse-snubber: No
    Pressure range [bar] [min]: 0.00
    Low Clipping level: 3.60
    Ambient temperature range [°C] [max]: 85
    Supply voltage: 32.00
    Suitable for glycol: TRUE
    High Clipping Level: 22.40
    Degree of protection (IP): IP65
    Overload pressure max. [bar]: 600.0
    SCIP dossier product name: AKS/MBS
    Overload pressure max. [psi]: 8702
    Supply voltage [V] DC [max]: 32.00
    Suitable for oil: TRUE
    Suitable for ammonia: TRUE
    Adj. zero point and span: Ne
    Response time max. [ms]: 4
    Pressure range [psi] [min]: 0.00
    Quantity per packing format: 14
    Supply voltage [V] DC [min]: 9.00
    Ambient temperature range [°F] [max]: 185
    Compensated temp. range [°C] [min]: 0
    Explosion-proof: FALSE
    Compensated temp. range [°F] [min]: 32
