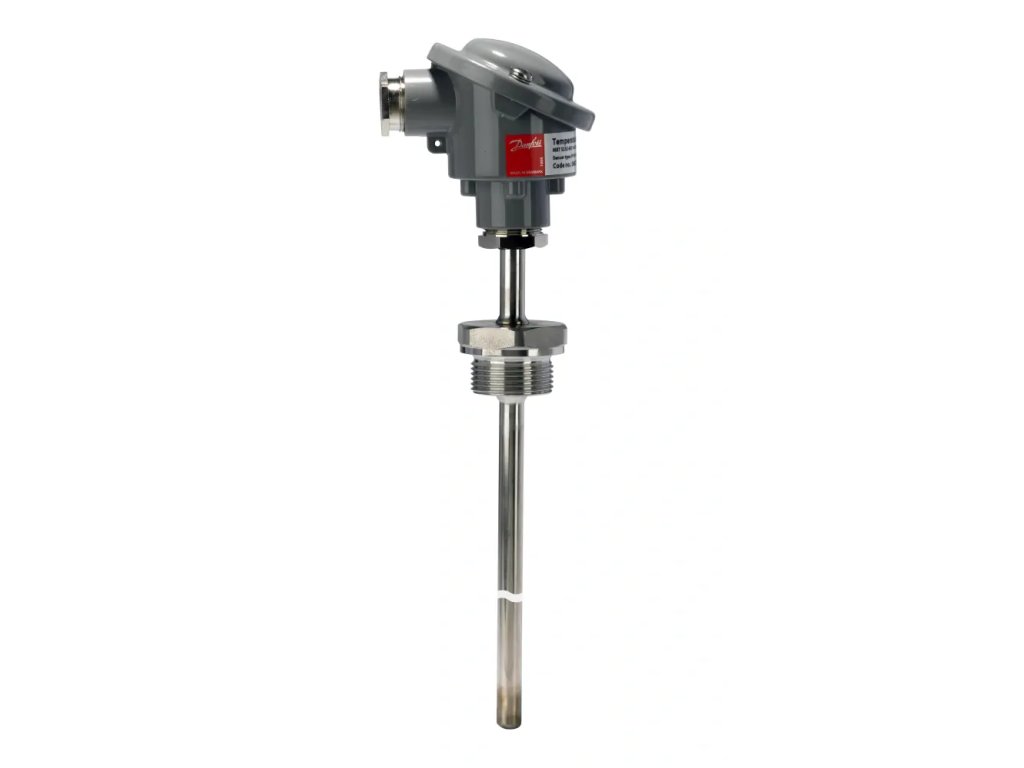

    Teplotní senzor, MBT 5252, 100 mm, G,1/2

    Kód: 084Z8211
    Neohodnoceno
    Teplotní senzor, MBT 5252, 100 mm, G,1/2
    5 876 Kč
    Momentálně nedostupné

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: MBT 5250, 5260, 5252
    Hmotnost: 0.4 kg
    EAN: 5702423114184
    Supporting protocol for KNX: FALSE
    Supporting protocol for Modbus: FALSE
    Type of display: Other
    Connection standard: ISO 228
    Measurement of CO2: FALSE
    Cable length: 0
    Electrical connection size: Pg 16
    Process connection material: Nerezová ocel
    SCIP dossier no.: ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6
    Suitable for duct mounting: FALSE
    Enthalpy measurement: FALSE
    Sensor element standard: EN 60751
    Particulate matter measurement (PM): FALSE
    Electrical connection: Typ B
    Ambient temperature max. [°C]: 90
    Temperature range [°F] [min]: -58
    Number of terminals [pcs]: 3
    Suitable for ceiling mounting: FALSE
    Supporting protocol for MP (multi point): FALSE
    Process connection standard: ISO 228-1-A
    Ambient temperature: 90-90
    Output signal: Ohm
    Suitable for gases: TRUE
    Ambient temperature max. [°F]: 194
    Enclosure rating IP: IP65
    Wi-Fi-compatible: FALSE
    Suitable for wall mounting: FALSE
    Suitable for liquids: TRUE
    Passive temperature measurement: TRUE
    Suitable for air: TRUE
    Scope of application: Immersion tube/duct
    Connection type: G
    Connection material: Nerezová ocel
    Sensor element tolerance: Třída B
    LoRa technology: FALSE
    EEE category: 5 small equipment (any external dimension <lt/> 50 cm)
    Suitable for tube mounting: FALSE
    IFTTT support available: FALSE
    Compatible with Apple HomeKit: FALSE
    Compatible with Google Assistant: FALSE
    Protection tube diameter [in]: 0.394
    Wires [pcs]: 2
    Sensor element type: Pt
    Potentiometer with adjustment knob: FALSE
    China RoHS compliance: Out of scope
    Packing format: Multi balení
    In scope of WEEE: Yes
    With mounting material: TRUE
    Measurement of absolute air humidity: FALSE
    Bluetooth: FALSE
    Insertion length [in]: 3.940
    Process connection size: 1/2
    Type designation: MBT 5252-0011-0100-0200-0000
    Sensor elem. resistance [Ohm]: 100
    REACH Candidate List substances: Lead (CAS no. 7439-92-1)
    Contain batteries: No
    NFC (Near Field Communication): FALSE
    Measurement of relative air humidity: FALSE
    Sensor element [pc]: 1
    With display: FALSE
    CE evaluated: Yes
    EU RoHS exemption clause: 6(c)
    Insertion type: Pevná
    EU RoHS compliance: Yes with exemptions
    Insert length: 100
    Active temperature measurement: FALSE
    Process connection Male/Female: Vnitřní
    Insertion length [mm]: 100
    Standby push button: FALSE
    Degree of protection (IP): IP65
    Sensor Insert: Výměnný
    Extension length [in]: 1.97
    Protection tube diameter [mm]: 10.0
    Process connection type: G
    Temperature range [°F] [max]: 392
    SCIP dossier product name: MBT 3252/5252
    Wireless: FALSE
    Temperature range [°C] [min]: -50
    Supporting protocol for BACnet: FALSE
    Compatible with Amazon Alexa: FALSE
    Measurement of VOC: FALSE
    Temperature range [°C] [max]: 200
    Quantity per packing format: 8
    Protection tube material: AISI 316 TI
    Extension length [mm]: 50
    Explosion-proof: FALSE
