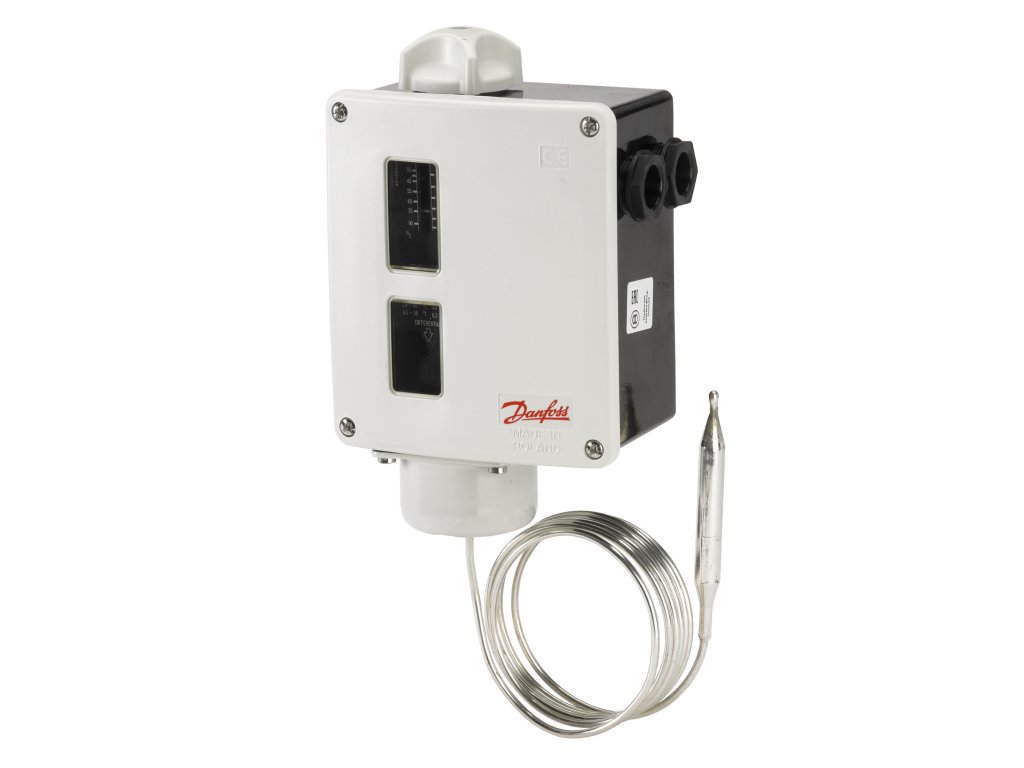

Termostat, RT124
Kód: 017-522766Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | RT |
|---|---|
| Hmotnost: | 0.84 kg |
| EAN: | 5702423120857 |
| Diff. @ Max. range setting[°C] [min]: | 2.5 |
| Ambient temperature range [°F] [min]: | -58 |
| Cap. tube length fraction [in]: | 78 3/4 in |
| Diff. @ Min. range setting[°C] [min]: | 5.0 |
| Max. sensor temperature [°F]: | 662.0 |
| Electrical connection size: | 2xPg 13.5 |
| Height: | 276 |
| Contact function: | SPDT |
| SCIP dossier no.: | c4c20ce6-4a07-4caa-9394-1e7d8b13ffec |
| Charge type: | Částečný |
| Diff. @ Min. range setting[°C] [max]: | 25.0 |
| Width: | 76 |
| With thermal feedback: | TRUE |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Colour: | Beige |
| Temperature range [°F] [min]: | 392 |
| Differential type: | Nastavitelný |
| Serviceable: | Systémy kontaktů |
| Reset function: | Auto |
| Enclosure rating IP: | IP66 |
| Ambient temperature range [°C] [min]: | -50 |
| Suitable for cooling: | FALSE |
| Diff. @ Max. range setting[°C] [max]: | 10.0 |
| Product accessories: | Příslušenství spínače |
| Sensor size (Ø x L) [in]: | 7/16 x 4 1/4 in |
| Depth: | 128 |
| Contact rating: | AC15=3 A, 400 V |
| IFTTT support available: | FALSE |
| Compatible with Apple HomeKit: | FALSE |
| Compatible with Google Assistant: | FALSE |
| Product description: | Termostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi balení |
| Max. sensor temperature [°C]: | 350 |
| Approval: | CCC |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| With display: | FALSE |
| CE evaluated: | Yes |
| EN 60947 wiring properties: | Ohebný kabel, ochranné kroužky: 0,2-1,5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 11 x 110 mm |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP): | IP44 |
| Temperature range [°F] [max]: | 572 |
| Temperature range [°C] [min]: | 200 |
| EN 60947 electrical properties: | Izolace: 400 V |
| Sensor type: | Dálková žárovka |
| Compatible with Amazon Alexa: | FALSE |
| Temperature range [°C] [max]: | 300 |
| Quantity per packing format: | 15 |
| Ambient temperature range [°F] [max]: | 158 |
| Capillary tube length [mm]: | 2000 |
| Explosion-proof: | FALSE |
-
Switches and thermostats - Industrial Refrigeration product group catalogue: Katalog
-
Thermostat type RT: Datový list
-
Przegląd Produktów AKPiA - katalog: Brožurka
-
Thermostat, Differential thermostat type RT: Datový list
-
Thermostat RT 4, RT 11, RT 17, RT 34: Instalační příručka
-
Thermostat type RT: Datový list
-
Thermostat, types RT 107, RT 108, RT 120, RT 123, RT 124: Instalační příručka
-
Sensor pocket types KPS, CAS, RT: Instalační příručka
