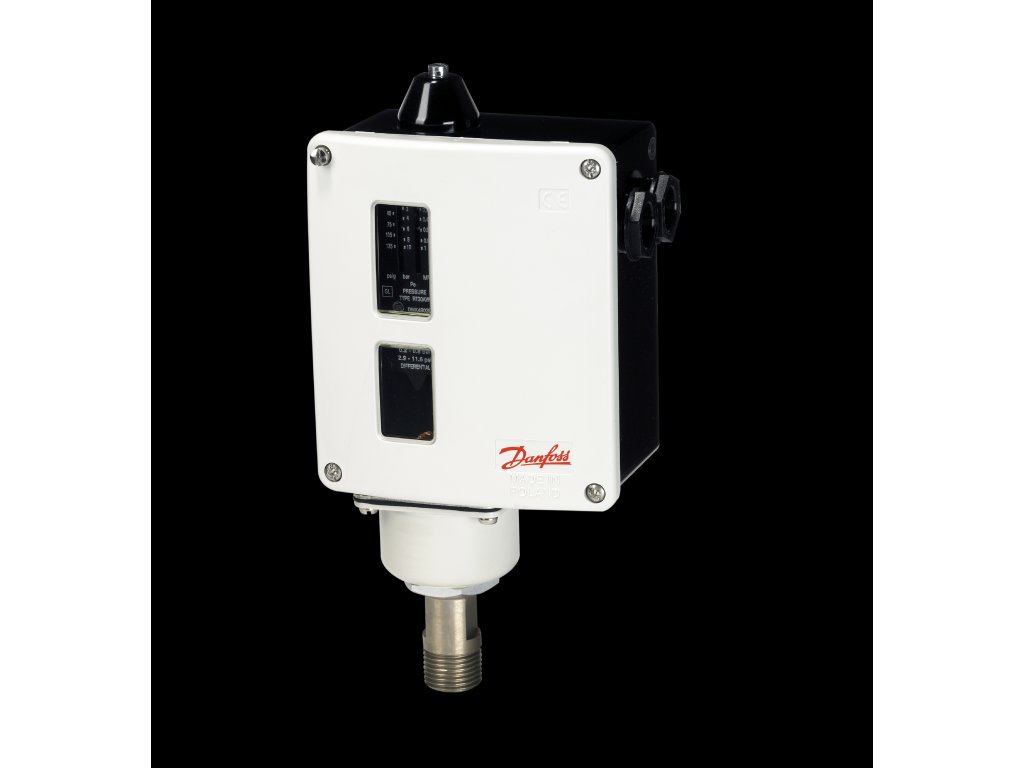

Presostat, RT112
Kód: 017-519366Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | RT |
|---|---|
| Hmotnost: | 0.87 kg |
| EAN: | 5702423120536 |
| Ambient temperature range [°F] [min]: | -58 |
| Differential [psi] [max]: | 2.30 |
| Electrical connection size: | 2xPg 13.5 |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Height: | 276 |
| Contact function: | SPDT |
| SCIP dossier no.: | f62fe422-beda-433a-a602-740419c82c06 |
| Pressure connection size: | 3/8 |
| Max. test pressure [psig]: | 116.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 76 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Max. operating pressure: | 7.0 |
| Serviceable: | Systémy kontaktů |
| Reset function: | Auto |
| Enclosure rating IP: | IP66 |
| Ambient temperature range [°C] [min]: | -50 |
| Regulation range [psig] Pe [min]: | 1.50 |
| Regulation range [bar] Pe [max]: | 1.10 |
| Max. test pressure [bar] Pe: | 8.0 |
| Product accessories: | Příslušenství spínače |
| Regulation range [bar] Pe [min]: | 0.10 |
| Pressure Male/Female: | Vnitřní |
| Differential [psi] [min]: | 1.00 |
| Depth: | 128 |
| Contact rating: | AC15=3 A, 400 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Pressure connection type: | G |
| Differential [bar] [max]: | 0.16 |
| Thread size: | 3/8 inch |
| Differential [bar] [min]: | 0.07 |
| Product description: | Presostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-4/-5 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | BV |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EN 60947 wiring properties: | Ohebný kabel, ochranné kroužky: 0,2-1,5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 7.0 |
| Pressure sensing element: | Vlnovec |
| Ambient temperature range [°C] [max]: | 70 |
| Degree of protection (IP): | IP66 |
| SCIP dossier product name: | RT Presso_Diff.Presso |
| EN 60947 electrical properties: | Izolace: 400 V |
| Regulation range [psig] Pe [max]: | 16.00 |
| Quantity per packing format: | 15 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 100 |
| Explosion-proof: | FALSE |
-
