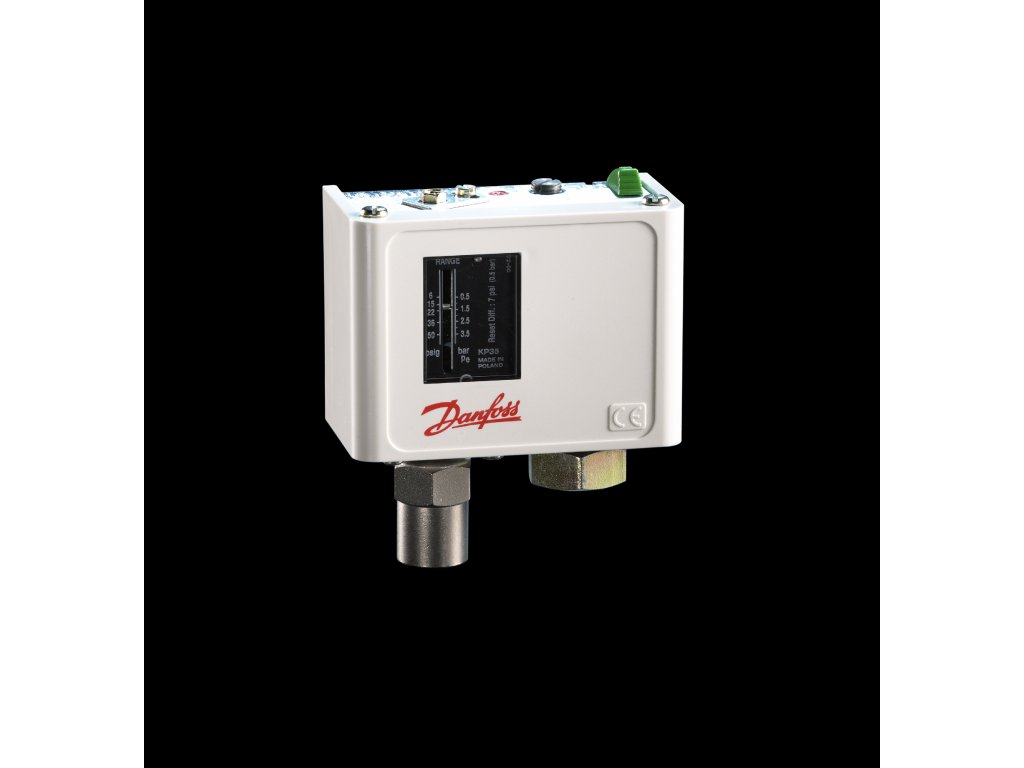

Presostat, KP34
Kód: 060-216366Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP / KPI |
|---|---|
| Hmotnost: | 0.48 kg |
| EAN: | 5702423263769 |
| Differential [psi]: | 3.00 |
| Ambient temperature range [°F] [min]: | -40 |
| Electrical connection size: | 6-14 mm |
| UL evaluated: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Height: | 76 |
| Contact function: | SPDT |
| SCIP dossier no.: | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Pressure connection size: | 1/2 |
| Max. test pressure [psig]: | 87.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 138 |
| Electrical connection: | Pryžová kKabelová ucpávka |
| Max. operating pressure: | 4.0 |
| Serviceable: | Ne |
| Reset function: | Manuální max. |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Regulation range [psig] Pe [min]: | 2.00 |
| Regulation range [bar] Pe [max]: | 1.07 |
| Max. test pressure [bar] Pe: | 6.0 |
| Product accessories: | Příslušenství spínače |
| Regulation range [bar] Pe [min]: | 0.14 |
| Pressure Male/Female: | Vnitřní |
| Depth: | 190 |
| Contact rating: | 120Vac,16FLA,96LRA,3A kontrolka svítí |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Differential [bar]: | 0.21 |
| Pressure connection type: | G |
| Thread size: | 1/2 inch |
| Product description: | Presostat |
| China RoHS compliance: | Yes |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | CCC |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EN 60947 wiring properties: | Ohebný kabel, ochranné kroužky: 0,5-1,5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 4.0 |
| Pressure sensing element: | Vlnovec |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP): | IP30 |
| UL approval file name: | E31024 |
| EN 60947 electrical properties: | Izolace: 400 V |
| Regulation range [psig] Pe [max]: | 15.00 |
| Quantity per packing format: | 10 |
| Ambient temperature range [°F] [max]: | 149 |
| Max. Working Pressure [psig]: | 58 |
| Explosion-proof: | FALSE |
-
