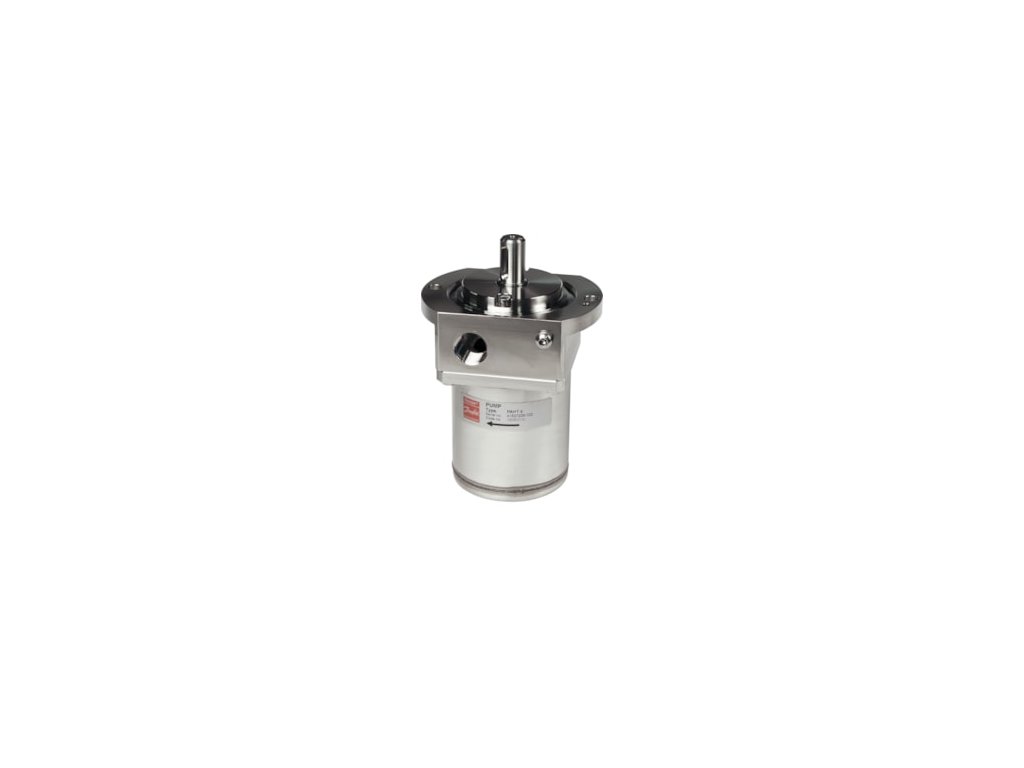

PAHT pumps, PAHT 4
Kód: 180B0030Detailní popis produktu
Průtok [gpm] [Max]: 2.6, Průtok [l/min] [Max]: 10.1, Výstup - tlak [barg] [Max]: 100, Výstup - tlak [psig] [Max]: 1450, Otáčky[rpm] [max.]: 3000, Průběžná rychlost [rpm] [Min]: 1000
Doplňkové parametry
| Kategorie: | Pumpy pro demineralizovanou vodu |
|---|---|
| Hmotnost: | 4.73 kg |
| EAN: | 5715162666999 |
| Flow [gpm] [Min]: | 0.700 |
| Outlet connection standard: | BSPP |
| Inlet connection standard: | BSPP |
| Outside dimensions of packaging LxWxH [in]: | 10,7x5,9x5,4 |
| Outlet pressure [barg] [Max]: | 100 |
| Outside dimensions of packaging LxWxH [mm]: | 274x151x137 |
| Outlet connection type: | Závit |
| Cable length: | 0 |
| Outlet pressure [barg] [Min]: | 10 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 0.24 |
| Speed [rpm] [Max]: | 3000 |
| Speed continuous [rpm] [Min]: | 1000 |
| Speed [rpm] [Min]: | 1000 |
| Sound pressure level [dB(A)]: | 76 |
| Outlet pressure [psig] [Max]: | 1450 |
| Weight: | 4.95 |
| Flow [l/min] [Max]: | 10.10 |
| Outlet pressure [psig] [Min]: | 145 |
| Flow [l/min] [Min]: | 2.90 |
| Flow [gpm] [Max]: | 2.600 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | Metrický |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | AISI 304 |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Outlet connection size [in]: | 1/4 in |
| Product description: | PAHT pumps |
| Inlet pressure [psig] [Max]: | 58.0 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 0.0 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | PAHT 4 |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1/2 in |
| Contains batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Media temperature [°C] [Max]: | 50 |
| Medium temperature (continuous): | 50-50 |
| Inlet pressure peak [psig] [Max]: | 58 |
| Inlet pressure peak [barg] [Max]: | 4 |
| Inlet pressure [barg] [Max]: | 4.0 |
| Inlet pressure [barg] [Min]: | 0.0 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 4.00 |
| Drain connection size (metric): | M6 |
| Inlet connection type: | Závit |
| Explosion-proof: | FALSE |
| Ambient temperature [°F] [max]: | 122 |
-
