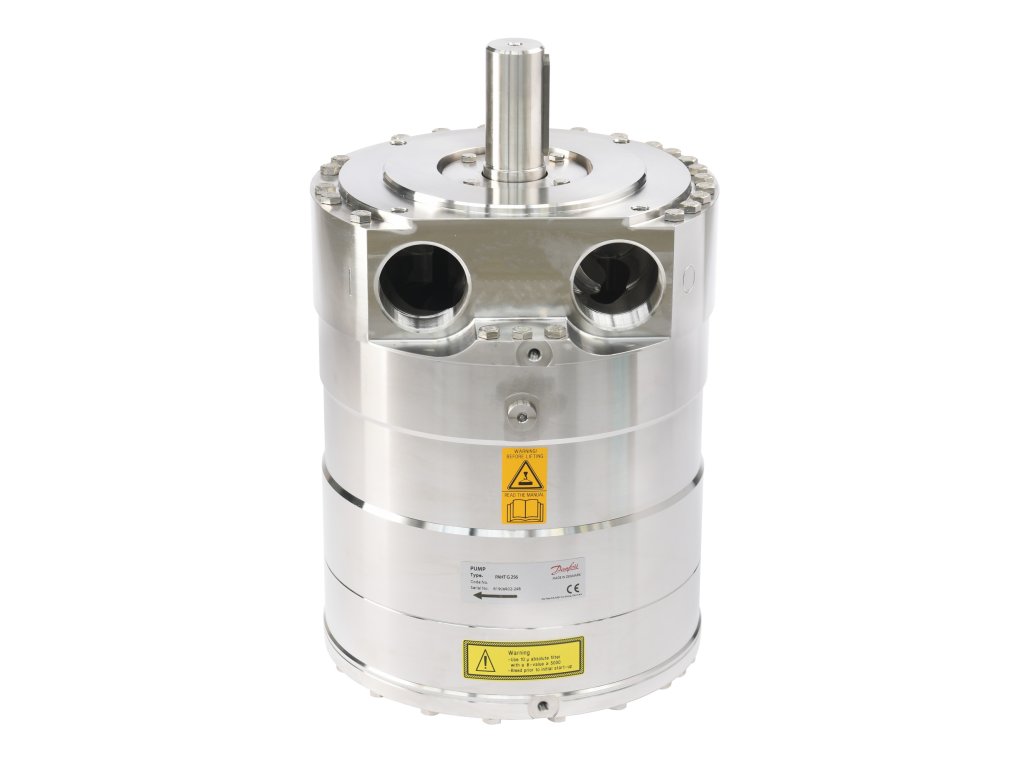

PAHT pumps, PAHT 308
Kód: 180B1002Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Pumpy pro demineralizovanou vodu |
|---|---|
| Hmotnost: | 105 kg |
| EAN: | 5715162667101 |
| Media temperature [°C] [Min]: | 2 |
| Flow [gpm] [Min]: | 28.000 |
| Outlet connection standard: | Metrický |
| Inlet connection standard: | Metrický |
| Product description: | PAHT pumps |
| Outside dimensions of packaging LxWxH [in]: | 22x13,2x18,3 |
| Outlet pressure [barg] [Max]: | 120 |
| Outside dimensions of packaging LxWxH [mm]: | 562x336x466 |
| Outlet connection type: | Závit |
| Inlet pressure [psig] [Max]: | 87.0 |
| Outlet pressure [barg] [Min]: | 30 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 29.0 |
| UL evaluated: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 122 |
| Approval: | CE |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 18.80 |
| Drain connection size [in]: | 0.250 |
| Type designation: | PAHT 308 |
| Speed [rpm] [Max]: | 1250 |
| Speed continuous [rpm] [Min]: | 700 |
| REACH Candidate List substances: | No |
| Speed [rpm] [Min]: | 450 |
| Contain batteries: | No |
| Outlet pressure [psig] [Max]: | 1740 |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| Flow [l/min] [Max]: | 354.20 |
| EU RoHS exemption clause: | No |
| Outlet pressure [psig] [Min]: | 435 |
| EU RoHS compliance: | Yes |
| Flow [l/min] [Min]: | 107.80 |
| Media temperature [°C] [Max]: | 50 |
| Flow [gpm] [Max]: | 92.000 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | BSPP |
| Inlet pressure peak [psig] [Max]: | 145 |
| Inlet pressure peak [barg] [Max]: | 10 |
| Country of origin: | Dánsko |
| Inlet pressure [barg] [Max]: | 6.0 |
| Inlet pressure [barg] [Min]: | 2.0 |
| Ambient temperature [°C] [max]: | 50 |
| Outlet connection size (metric): | M60 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 308.00 |
| Body material: | AISI 316 |
| Inlet connection size (metric): | M60 |
| Drain connection type: | Závit |
| Inlet connection type: | Závit |
| Ambient temperature [°F] [max]: | 122 |
-
Danfoss PAHT pumps enables SLE Technology keeping parts clean: Popis řešení
-
PAHT 2-308 Data sheet: Datový list
-
Danfoss PAHT pumps at the heart of Merlin Technology’s innovative high-pressure humidifiers: Popis řešení
-
PAHT and PAHT G 256-308 Disassembling and assembling: Servisní příručka
-
PAHT 256-308 Instruction: Instalační příručka
-
PAHT 256-308 Installation, Opearation and Maintenance manual: Provozní příručka
-
DMS uses Danfoss PAHT pumps to clean flat panel displays with low maintenance and zero contamination risk: Popis řešení
-
DMS uses Danfoss PAHT pumps to clean flat panel displays with low maintenance and zero contamination risk: Popis řešení
