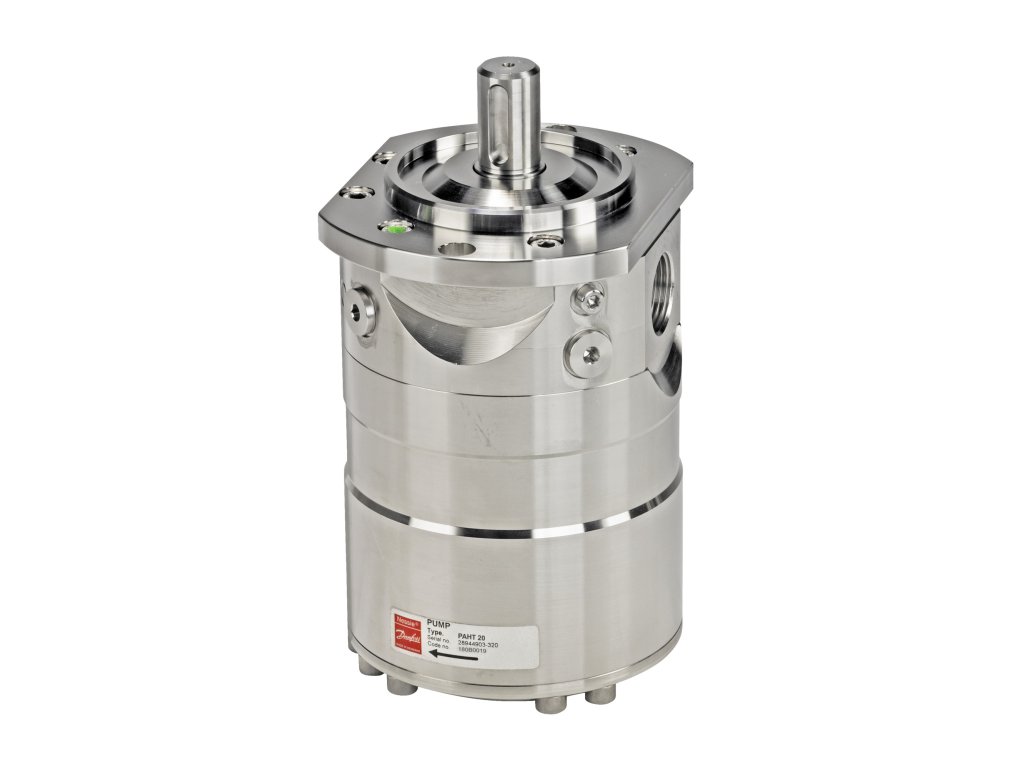

PAHT pumps, PAHT 20
Kód: 180B0019Detailní popis produktu
Průtok [gpm] [Max]: 10.9, Průtok [l/min] [Max]: 42.1, Výstup - tlak [barg] [Max]: 100, Výstup - tlak [psig] [Max]: 1450, Otáčky[rpm] [max.]: 2400, Průběžná rychlost [rpm] [Min]: 1000
Doplňkové parametry
| Kategorie: | Pumpy pro demineralizovanou vodu |
|---|---|
| Hmotnost: | 18 kg |
| EAN: | 5715162667149 |
| Flow [gpm] [Min]: | 2.800 |
| Outlet connection standard: | BSPP |
| Inlet connection standard: | BSPP |
| Outside dimensions of packaging LxWxH [in]: | 11,8x10,6x10 |
| Outlet pressure [barg] [Max]: | 100 |
| Outside dimensions of packaging LxWxH [mm]: | 300x270x255 |
| Outlet connection type: | Závit |
| Outlet pressure [barg] [Min]: | 30 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 1.22 |
| Speed [rpm] [Max]: | 2400 |
| Speed continuous [rpm] [Min]: | 1000 |
| Speed [rpm] [Min]: | 700 |
| Sound pressure level [dB(A)]: | 79 |
| Outlet pressure [psig] [Max]: | 1450 |
| Flow [l/min] [Max]: | 42.10 |
| Outlet pressure [psig] [Min]: | 435 |
| Flow [l/min] [Min]: | 10.80 |
| Flow [gpm] [Max]: | 10.900 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | Metrický |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | AISI 316 |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Outlet connection size [in]: | 3/4 in |
| Product description: | PAHT pumps |
| Inlet pressure [psig] [Max]: | 87.0 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 0.0 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | PAHT 20 |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1 1/4 in |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Media temperature [°C] [Max]: | 50 |
| Inlet pressure peak [psig] [Max]: | 290 |
| Inlet pressure peak [barg] [Max]: | 20 |
| Inlet pressure [barg] [Max]: | 6.0 |
| Inlet pressure [barg] [Min]: | 0.0 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 20.00 |
| Drain connection size (metric): | M6 |
| Inlet connection type: | Závit |
| Ambient temperature [°F] [max]: | 122 |
-
