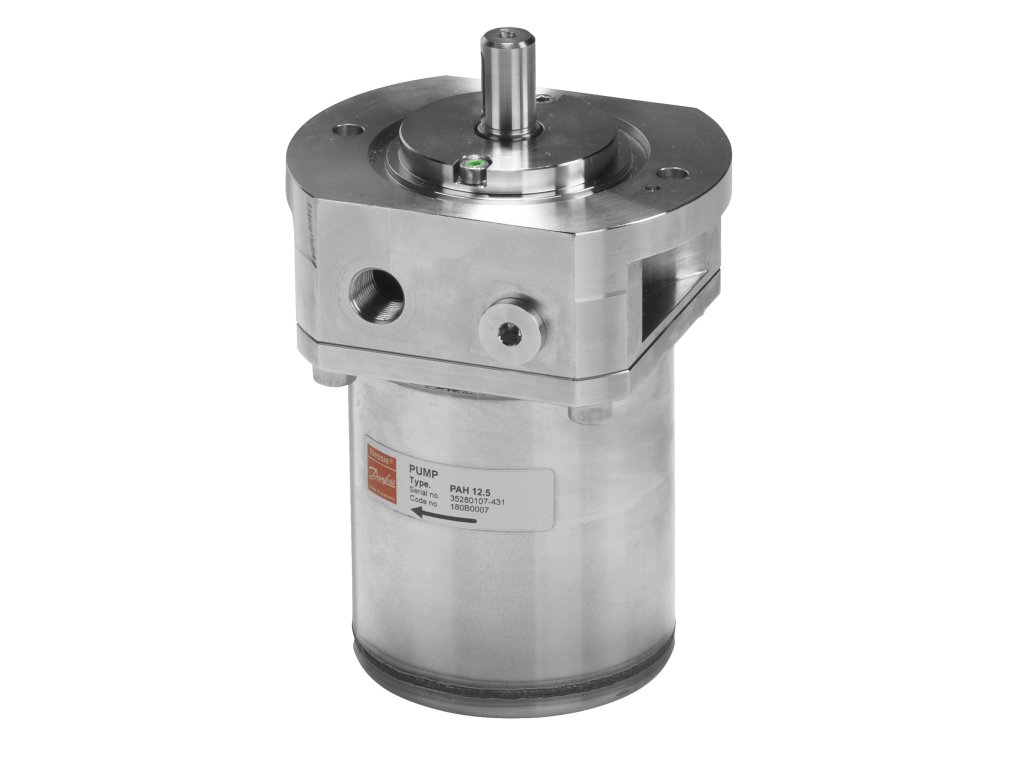

PAH pumps, PAH 12.5 Ex
Kód: 180B6107Detailní popis produktu
Průtok [gpm] [Max]: 5.2, Průtok [l/min] [Max]: 21.6, Výstup - tlak [barg] [Max]: 140, Výstup - tlak [psig] [Max]: 2030, Otáčky[rpm] [max.]: 2400, Průběžná rychlost [rpm] [Min]: 1000, Soulad ATEX: Ex II 2G cb T6 / Ex II 3G c T6
Doplňkové parametry
| Kategorie: | Pumpy pro vodu |
|---|---|
| Hmotnost: | 8.06 kg |
| EAN: | 5715162670941 |
| Flow [gpm] [Min]: | 1.900 |
| Outlet connection standard: | BSPP |
| Inlet connection standard: | BSPP |
| Outside dimensions of packaging LxWxH [in]: | 10,7x5,9x5,4 |
| Outlet pressure [barg] [Max]: | 140 |
| Outside dimensions of packaging LxWxH [mm]: | 274x151x137 |
| Outlet connection type: | Závit |
| Outlet pressure [barg] [Min]: | 10 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 0.61 |
| Drain connection size [in]: | 0.250 |
| Speed [rpm] [Max]: | 2400 |
| Speed continuous [rpm] [Min]: | 1000 |
| Speed [rpm] [Min]: | 1000 |
| Sound pressure level [dB(A)]: | 75 |
| Outlet pressure [psig] [Max]: | 2030 |
| Flow [l/min] [Max]: | 21.60 |
| Outlet pressure [psig] [Min]: | 145 |
| Flow [l/min] [Min]: | 7.60 |
| Flow [gpm] [Max]: | 5.200 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | BSPP |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | AISI 304 |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Outlet connection size [in]: | 3/8 in |
| Product description: | PAH pumps |
| Inlet pressure [psig] [Max]: | 58.0 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 0.0 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | PAH 12.5 Ex |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 3/4 in |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS compliance: | Out of scope |
| Media temperature [°C] [Max]: | 50 |
| Inlet pressure peak [psig] [Max]: | 58 |
| Inlet pressure peak [barg] [Max]: | 4 |
| Inlet pressure [barg] [Max]: | 4.0 |
| Inlet pressure [barg] [Min]: | 0.0 |
| ATEX compliance: | Ex II 2G cb T6 / Ex II 3G c T6 |
| Displacement [cm³/rev]: | 10.00 |
| Inlet connection type: | Závit |
| Ambient temperature [°F] [max]: | 122 |
-
PAH/PAHT 2-12.5 Instruction: Instalační příručka
-
PAH 2-12.5 Installation, Opearation and Maintenance manual: Provozní příručka
-
Data sheet PAH pumps: Datový list
-
ATEX instruction for APP 0.6-10.2 Ex / PAH 2-100 Ex / PAHT C 2-6.3 Ex / PAHT G 2-308 Ex: Instalační příručka
-
PAH/PAHT/PAHT G 10-12.5 Disassembling and assembling: Servisní příručka
