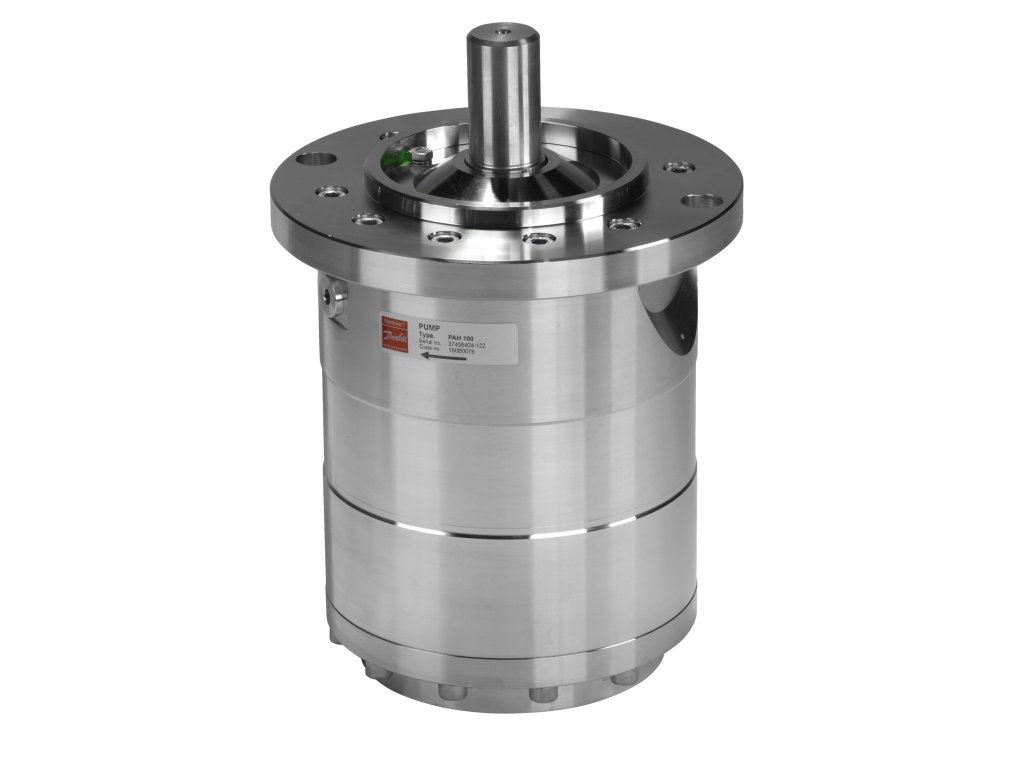

PAH pumps, PAH 100
Kód: 180B0076Detailní popis produktu
Průtok [gpm] [Max]: 38.2, Průtok [l/min] [Max]: 146.9, Výstup - tlak [barg] [Max]: 80, Výstup - tlak [psig] [Max]: 1160, Otáčky[rpm] [max.]: 1500, Průběžná rychlost [rpm] [Min]: 700
Doplňkové parametry
| Kategorie: | Pumpy pro vodu |
|---|---|
| Hmotnost: | 25 kg |
| EAN: | 5715162667040 |
| Flow [gpm] [Min]: | 17.300 |
| Outlet connection standard: | BSPP |
| Inlet connection standard: | BSPP |
| Outside dimensions of packaging LxWxH [in]: | 14,9x11,8x11,8 |
| Outlet pressure [barg] [Max]: | 80 |
| Outside dimensions of packaging LxWxH [mm]: | 380x300x300 |
| Outlet connection type: | Závit |
| Cable length: | 0 |
| Outlet pressure [barg] [Min]: | 30 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 6.00 |
| Drain connection size [in]: | 0.250 |
| Speed [rpm] [Max]: | 1500 |
| Speed continuous [rpm] [Min]: | 700 |
| Speed [rpm] [Min]: | 700 |
| Sound pressure level [dB(A)]: | 81 |
| Outlet pressure [psig] [Max]: | 1160 |
| Weight: | 31.93 |
| Flow [l/min] [Max]: | 146.90 |
| Outlet pressure [psig] [Min]: | 435 |
| Flow [l/min] [Min]: | 66.60 |
| Flow [gpm] [Max]: | 38.200 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | BSPP |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | AISI 304 |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Outlet connection size [in]: | 1 1/4 in |
| Product description: | PAH pumps |
| Inlet pressure [psig] [Max]: | 58.0 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 0.0 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | PAH 100 |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 1 1/2 in |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS compliance: | Out of scope |
| Media temperature [°C] [Max]: | 50 |
| Medium temperature (continuous): | 50-50 |
| Inlet pressure [barg] [Max]: | 4.0 |
| Inlet pressure [barg] [Min]: | 0.0 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 100.00 |
| Inlet connection type: | Závit |
| Explosion-proof: | FALSE |
| Ambient temperature [°F] [max]: | 122 |
-
Sawmill MD engineers profitable humidity treatment with flexible Danfoss PAH pumps: Popis řešení
-
PAH 20-100 Instructions: Instalační příručka
-
Data sheet PAH pumps: Datový list
-
PAH 20-100 Installation, Opearation and Maintenance manual: Provozní příručka
-
Moscow office complex saves 180 m2 with compact fire suppression system powered by Danfoss PAH pumps: Popis řešení
-
Compact Danfoss PAH pumps protect priceless Chinese cultural heritage from fire: Popis řešení
-
PAH 50-100 Disassembling and assembling: Servisní příručka
