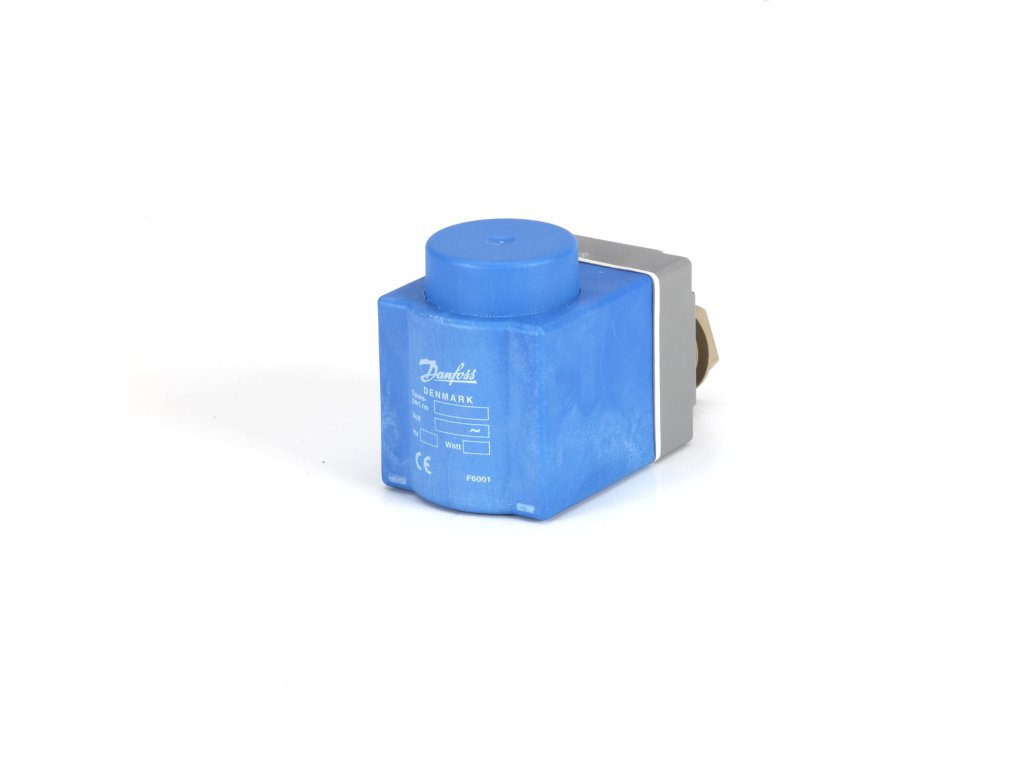

Magnetic coils, BE200AS
Kód: 018F7929Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Cívky |
|---|---|
| Hmotnost: | 0.28 kg |
| EAN: | 5702428064620 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Actuator size [mm]: | 13.5 |
| Product description: | Magnetic coils |
| Compliance: | EN 60730-1 |
| Coil connection: | Štítek DIN |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Supply voltage [V] AC: | 200 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | LLC CDC TYSK |
| Color: | Blue |
| Height: | 46 |
| Type designation: | BE200AS |
| SCIP dossier no.: | 23785618-b379-4da7-a913-ecd40c8fae6d |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Coil fastening: | Nacvakávací |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Trvalý |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Width: | 70 |
| Frequency [Hz]: | 50/60 Hz |
| Electrical connection: | Štítek DIN |
| Coil design standard: | VDE 0580 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C]: | 50 |
| Rel. Humidity conditions: | Bez kondenzace |
| Electrical connector: | 3 x štítky |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Ambient temperature range [°F]: | 120 |
| Quantity per packing format: | 50 |
| Power consumption [W]: | 10.0 |
-
VDHT Solenoid Valves Standard NPT Thread: Datový list
-
VDHT Solenoid Valves Standard NPT Thread: Datový list
-
Solenoid coils for VDH and VDHT: Datový list
