    Domů / Danfoss průmyslová automatizace / Spínače teploty / KP / Termostat, KP81

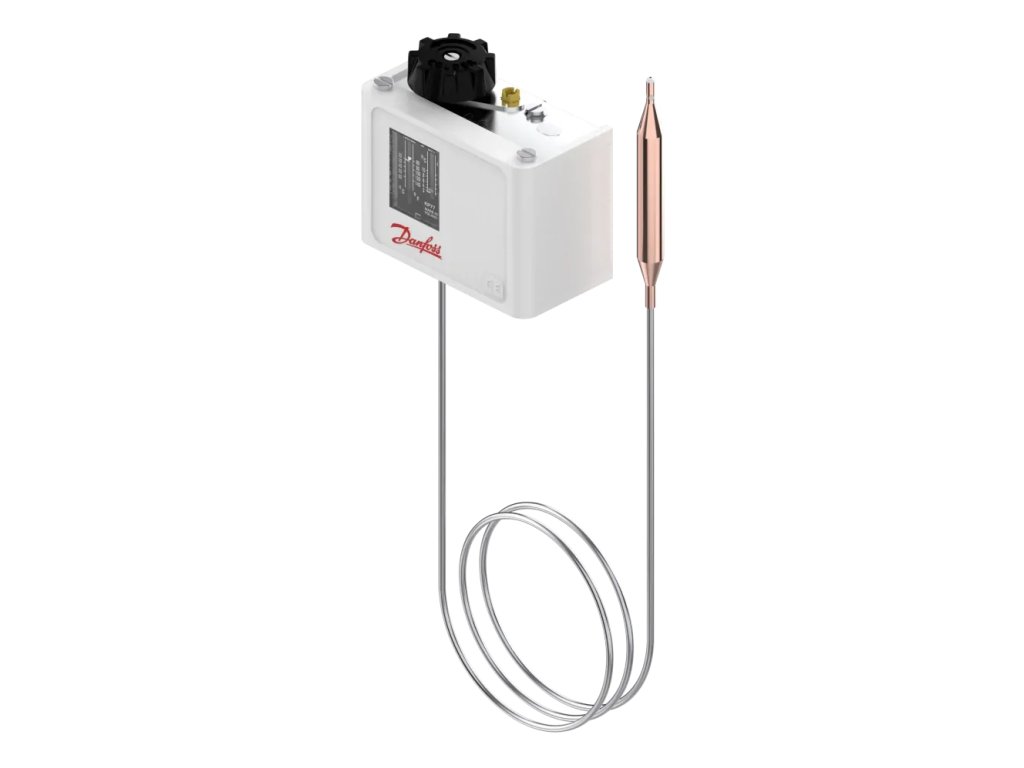

    Termostat, KP81

    Kód: 060L112566
    Neohodnoceno
    Termostat, KP81
    2 808 Kč
    Momentálně nedostupné

    Detailní popis produktu

    Popis produktu není dostupný

    Doplňkové parametry

    Kategorie: KP
    Hmotnost: 0.37 kg
    EAN: 5702423148646
    Diff. @ Max. range setting[°C] [min]: 7.0
    Ambient temperature range [°F] [min]: -40
    Cap. tube length fraction [in]: 78 3/4 in
    Diff. @ Min. range setting[°C] [min]: 6.0
    Max. sensor temperature [°F]: 392.0
    Electrical connection size: 6-14 mm
    UL evaluated: Yes
    Enclosure rating Nema (~): 1
    Amb. Temp. Note: 80 °C/176 °F for max 120 min
    Height: 55
    Contact function: SPDT
    SCIP dossier no.: b1323c86-8856-44cc-b1c6-6849abe37ee4
    Charge type: Adsorpce
    Diff. @ Min. range setting[°C] [max]: 20.0
    Width: 55
    Electrical connection: Pryžová kKabelová ucpávka
    Temperature range [°F] [min]: 176
    Differential type: Nastavitelný
    Serviceable: Ne
    Reset function: Auto
    Enclosure rating IP: IP30
    Ambient temperature range [°C] [min]: -40
    Diff. @ Max. range setting[°C] [max]: 23.0
    Product accessories: Příslušenství spínače
    Other RoHS documentation: Saudi Arabia RoHS
    Sensor size (Ø x L) [in]: 3/8 x 3 3/8 in
    Depth: 55
    Contact rating: AC15=10 A, 400 V
    Diff. @ Max. range setting [K] [min]: 7.0
    IFTTT support available: FALSE
    Compatible with Apple HomeKit: FALSE
    Compatible with Google Assistant: FALSE
    Diff. @ Min. range setting [K] [min]: 6.0
    Product description: Termostat
    China RoHS compliance: Yes
    Electrical spec. standard: EN 60947-5
    Packing format: Multi balení
    Max. sensor temperature [°C]: 200
    Approval: BV
    REACH Candidate List substances: Lead (CAS no. 7439-92-1)
    Diff. @ Max. range setting [K] [max]: 23.0
    Contains batteries: No
    CE evaluated: Yes
    EN 60947 wiring properties: Ohebný kabel, ochranné kroužky: 0,5-1,5 mm2
    EU RoHS exemption clause: No
    EU RoHS compliance: Yes
    Sensor size (Ø x L) [mm]: 9.5 x 85 mm
    Ambient temperature range [°C] [max]: 65
    Degree of protection (IP): IP30
    Temperature range [°F] [max]: 302
    UL approval file name: E31024
    SCIP dossier product name: KP/KPI pressure switch
    Temperature range [°C] [min]: 80
    EN 60947 electrical properties: Izolace: 400 V
    Diff. @ Min. range setting [K] [max]: 20.0
    Sensor type: Dálková žárovka
    Compatible with Amazon Alexa: FALSE
    Temperature range [°C] [max]: 150
    Quantity per packing format: 14
    Ambient temperature range [°F] [max]: 150
    Capillary tube length [mm]: 2000
    Explosion-proof: FALSE
