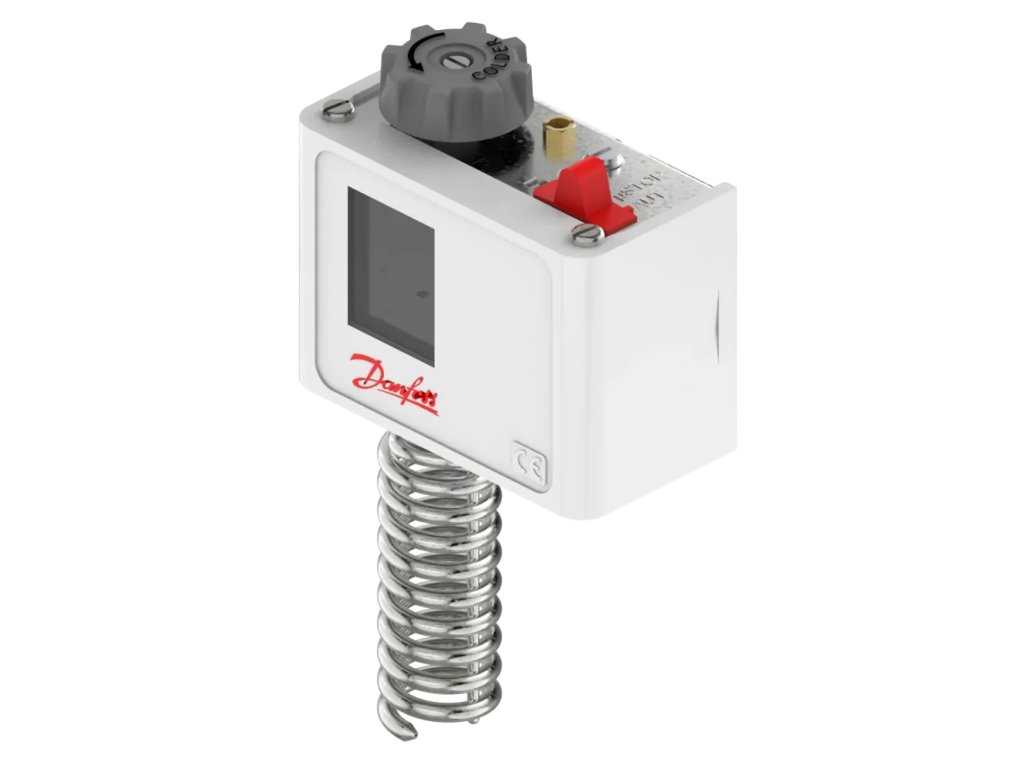

Termostat, KP62
Kód: 060L111066Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP |
|---|---|
| Hmotnost: | 0.45 kg |
| EAN: | 5702428014847 |
| Diff. @ Max. range setting[°C] [min]: | 2.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Diff. @ Min. range setting[°C] [min]: | 5.0 |
| Max. sensor temperature [°F]: | 176.0 |
| Electrical connection size: | 6-14 mm |
| UL evaluated: | Yes |
| Enclosure rating Nema (~): | 1 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Height: | 192 |
| Contact function: | SPDT |
| SCIP dossier no.: | be15a44e-80b1-41bd-9578-c8ff1cd7b9f3 |
| Charge type: | Adsorpce |
| Diff. @ Min. range setting[°C] [max]: | 20.0 |
| Width: | 48 |
| Equipment: | Horní deska |
| Electrical connection: | Pryžová kKabelová ucpávka |
| Temperature range [°F] [min]: | -22 |
| Differential type: | Nastavitelný |
| Serviceable: | Ne |
| Reset function: | Auto |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Diff. @ Max. range setting[°C] [max]: | 8.0 |
| Product accessories: | Příslušenství spínače |
| Parts included: | Nástěnná konzola |
| Other RoHS documentation: | Saudi Arabia RoHS |
| Sensor size (Ø x L) [in]: | 1 x 3 in |
| Depth: | 139 |
| Contact rating: | AC15=10 A, 400 V |
| Diff. @ Max. range setting [K] [min]: | 2.0 |
| Diff. @ Min. range setting [K] [min]: | 5.0 |
| Product description: | Termostat |
| China RoHS compliance: | Yes |
| Electrical spec. standard: | EN 60947-5 |
| Packing format: | Multi balení |
| Max. sensor temperature [°C]: | 80 |
| Approval: | BV |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Diff. @ Max. range setting [K] [max]: | 8.0 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EN 60947 wiring properties: | Ohebný kabel, ochranné kroužky: 0,5-1,5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Sensor size (Ø x L) [mm]: | 25 x 78 mm |
| Ambient temperature range [°C] [max]: | 65 |
| Degree of protection (IP): | IP30 |
| Temperature range [°F] [max]: | 59 |
| UL approval file name: | E31024 |
| Temperature range [°C] [min]: | -30 |
| EN 60947 electrical properties: | Izolace: 400 V |
| Diff. @ Min. range setting [K] [max]: | 20.0 |
| Sensor type: | Pokojový senzor |
| Temperature range [°C] [max]: | 15 |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 150 |
| Explosion-proof: | FALSE |
-
