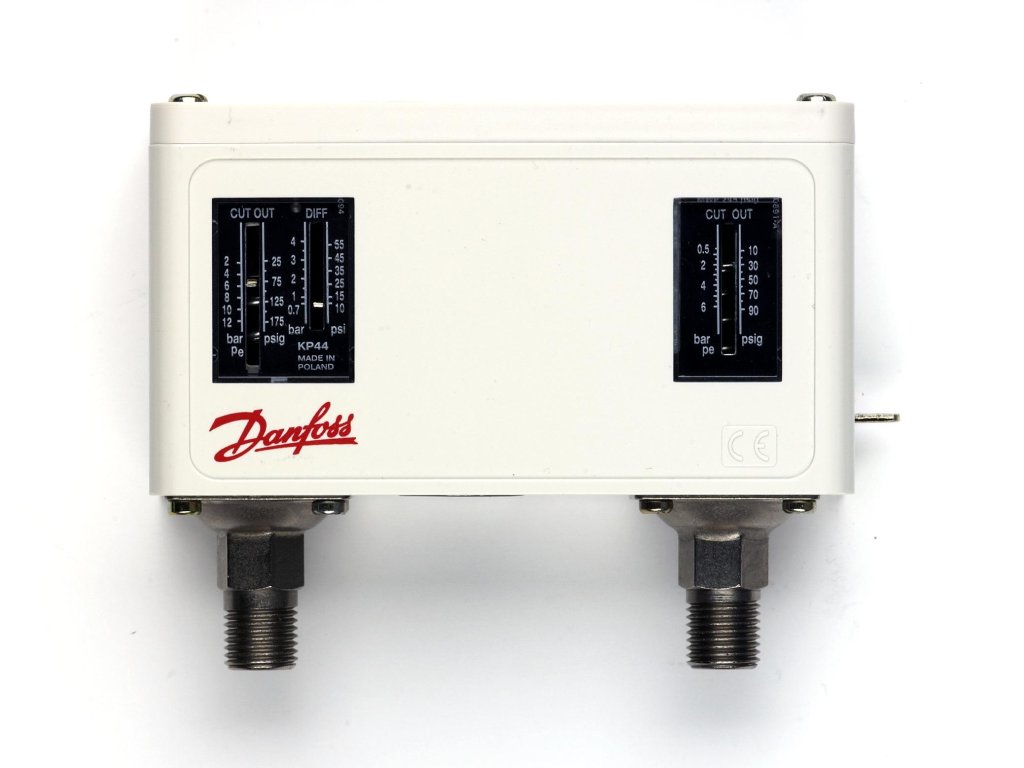

Presostat, KP44
Kód: 060-001366Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | KP / KPI |
|---|---|
| Hmotnost: | 0.52 kg |
| EAN: | 5702423148592 |
| Differential left side [psi] [max]: | 58.0 |
| Ambient temperature range [°F] [min]: | -40 |
| Regulation right side [psig]Pe [min]: | 7.0 |
| Regulation right side [bar]Pe [max]: | 6.0 |
| Regulation left side [psig]Pe [min]: | 29.00 |
| Electrical connection size: | 6-14 mm |
| Differential left side [bar] [max]: | 4.00 |
| Regulation right side [bar]Pe [min]: | 0.5 |
| UL evaluated: | Yes |
| Enclosure rating Nema (~): | 2 |
| Amb. Temp. Note: | 80 °C/176 °F for max 120 min |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Height: | 192 |
| Contact function: | SPST(NO)+SPST(NC) |
| Differential left side [psi] [min]: | 10.0 |
| SCIP dossier no.: | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Differential left side [bar] [min]: | 0.70 |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 48 |
| Differential right side [bar]: | 1.0 |
| Regulation left side [bar]Pe [max]: | 12.00 |
| MWP left side [bar] Pe: | 17.0 |
| Electrical connection: | Pryžová kKabelová ucpávka |
| Reset function, left side: | Auto |
| Serviceable: | Ne |
| Enclosure rating IP: | IP22 |
| Ambient temperature range [°C] [min]: | -40 |
| Differential right side [psi]: | 14.5 |
| Product accessories: | Příslušenství spínače |
| Pressure Male/Female: | Vnitřní |
| Regulation left side [bar]Pe [min]: | 2.00 |
| Regulation right side [psig]Pe [max]: | 87.0 |
| Depth: | 139 |
| Max.test press.right side[bar]: | 19 |
| Contact rating: | AC15=10 A, 400 V |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Regulation left side [psig]Pe [max]: | 174.00 |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| Product description: | Dvojitá regulace tlaku |
| China RoHS compliance: | Yes |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| MWP right side [bar] Pe: | 17.0 |
| Approval: | CCC |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Contains batteries: | No |
| CE evaluated: | Yes |
| EN 60947 wiring properties: | Ohebný kabel, ochranné kroužky: 0,5-1,5 mm2 |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Pressure sensing element: | Vlnovec |
| Ambient temperature range [°C] [max]: | 65 |
| MWP right side [psig] Pe: | 245.0 |
| Degree of protection (IP): | IP22 |
| UL approval file name: | E31024 |
| Reset function, right side: | Auto |
| EN 60947 electrical properties: | Izolace: 400 V |
| Quantity per packing format: | 32 |
| Ambient temperature range [°F] [max]: | 149 |
| MWP left side [psig] Pe: | 245 |
| Explosion-proof: | FALSE |
| Max.test press.left side[bar]: | 25 |
-
