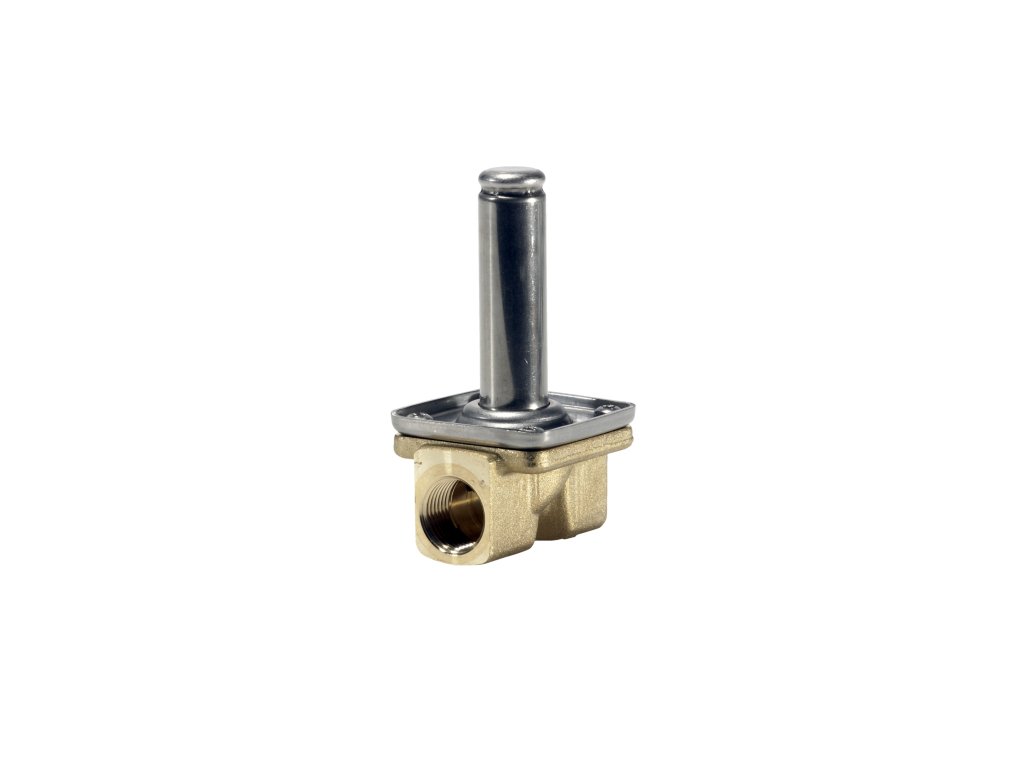

Elektromagnetický ventil, EV220B, Funkce: NO, G, 1/2, 2.1 m³/h, EPDM
Kód: 032U1250Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Ventily EV220B DN6-DN22 |
|---|---|
| Hmotnost: | 0.29 kg |
| EAN: | 5702428995573 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 100 |
| Min. pressure difference: | 0.300 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 300 |
| Est. time to open, water [ms]: | 60 |
| Specification key: | EV220B 12B G 12E NO000 |
| Height: | 96 |
| SCIP dossier no.: | 77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NO |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | 0 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection: | Other |
| Explosion safety: | None |
| Media tolerance comments: | Neutrální média |
| Operation: | Ovládání servopohonem (membrána) |
| Product accessories: | Příslušenství elektromagnetického ventilu |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Mosaz |
| Parts Program name: | EV220B 6 - 22 |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 12.00 |
| Medium temperature range [°F] [min]: | 32 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 2.400 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| Kv value [m³/h]: | 2.100 |
| Approval: | DNVGL-CG-0339 |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV220B 12 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 212 |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 1/2 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Otevřený |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220B 6-12 brass NO - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Model: | Straight |
| Quantity per packing format: | 15 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
