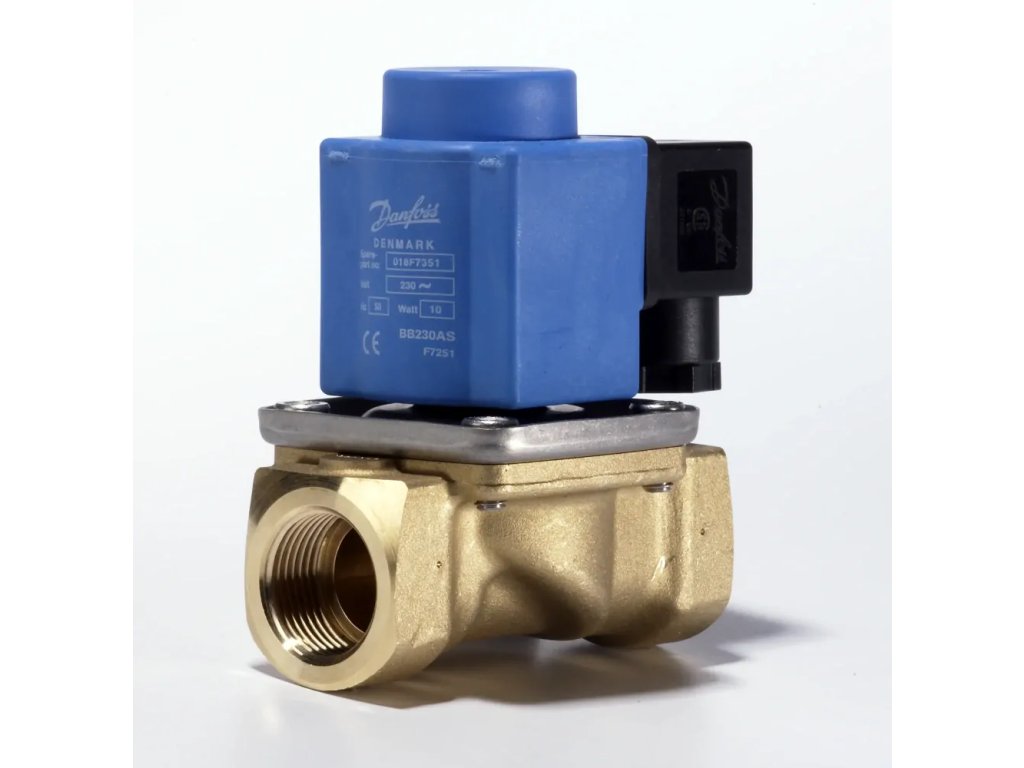

Elektromagnetický ventil, EV251B, Funkce: NC, G, 3/4, 3.5 m³/h, NBR
Kód: 032U538202Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV251B univerzální |
|---|---|
| Hmotnost: | 0.94 kg |
| EAN: | 5702428443258 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 70 |
| Min. pressure difference: | 0.000 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 500 |
| Est. time to open, water [ms]: | 200 |
| Specification key: | EV251B 18B G 34N NC688 BB024DS |
| Height: | 75 |
| SCIP dossier no.: | 1b9c4d1e-3db1-4cbf-b890-a2f5466a0ea9 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Electrical connection: | Other, Štítek DIN 43650-A |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | NBR |
| Ambient temperature max. [°F]: | 122 |
| Surface protection: | Other |
| Enclosure rating IP: | IP65 |
| Explosion safety: | None |
| Media tolerance comments: | Neutrální média |
| Coil option: | Nacvakávací |
| Power consumption [W] DC: | 16.0 |
| Operation: | S pomocným zdvihem |
| Product accessories: | Příslušenství cívky solenoidu |
| Connection type: | G |
| Connection size [in]: | 3/4 |
| Connection material: | Mosaz |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 18.00 |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 4.050 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 3.500 |
| Approval: | CE |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Type designation: | EV251B 18 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Voltage type: | DC |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 158 |
| Orifice size fraction [in]: | 3/4 in |
| Differential pressure [psi] [max]: | 145.000 |
| Coil type: | BB |
| Application: | Uzavřený a Vypouštěcí |
| Degree of protection (IP): | IP65 |
| Connection voltage: | 24 |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV251B - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Supply voltage [V] DC: | 24.00 |
| Model: | Straight |
| Quantity per packing format: | 12 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water,Brine,Oil,Air |
-
