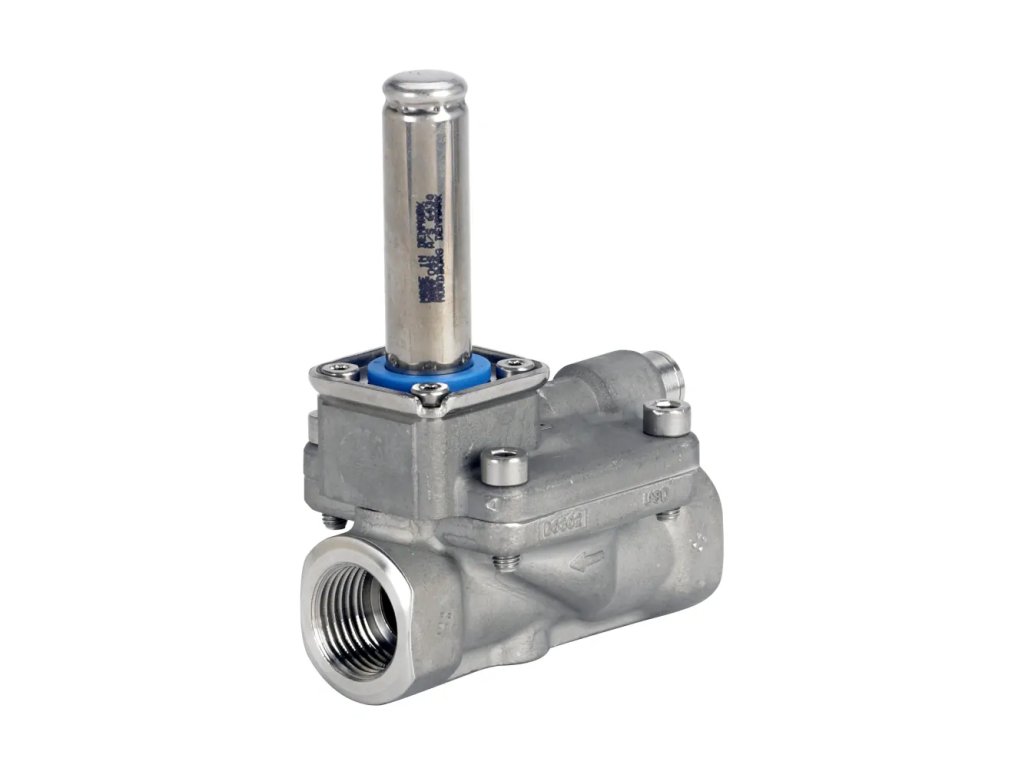

Elektromagnetický ventil, EV228BW, Funkce: UN, G, 1/2, 4 m³/h, EPDM
Kód: 132U2401Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220BW, EV228BW |
|---|---|
| Hmotnost: | 0.63 kg |
| EAN: | 5702428527750 |
| Housing material: | Stainless steel |
| Outlet connection standard: | ISO 228-1 |
| Inlet connection standard: | ISO 228-1 |
| Medium temperature range [°C] [max]: | 90 |
| Min. pressure difference: | 0.300 |
| Connection standard: | ISO 228-1 |
| Outlet connection type: | G |
| Kvs value: | 4.000 |
| Specification key: | EV228BW 15SS G 12E UN000 |
| Height: | 93 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | UN |
| Outlet size [in]: | 1/2 in |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 60 |
| Connection Internal/External: | Vnitřní |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 140 |
| Surface protection: | Other |
| Explosion safety: | None |
| Operation: | Blokování |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Nerezová ocel |
| Parts Program name: | EV228BW |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Nerezová ocel |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 15.00 |
| Medium temperature range [°F] [min]: | -22 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 4.600 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 4.000 |
| Approval: | ACS |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | BW |
| Type designation: | EV228BW 15 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| Orifice size fraction [in]: | 5/8 in |
| Inlet size [in]: | 1/2 in |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Otevřený |
| Inlet Internal/External: | Vnitřní |
| EPD available: | Yes |
| Model: | Straight |
| Quantity per packing format: | 24 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Inlet connection type: | G |
| Media recommendations: | Drinking Water&Heating ECO/SS |
| Outlet Internal/External: | Vnitřní |
-
