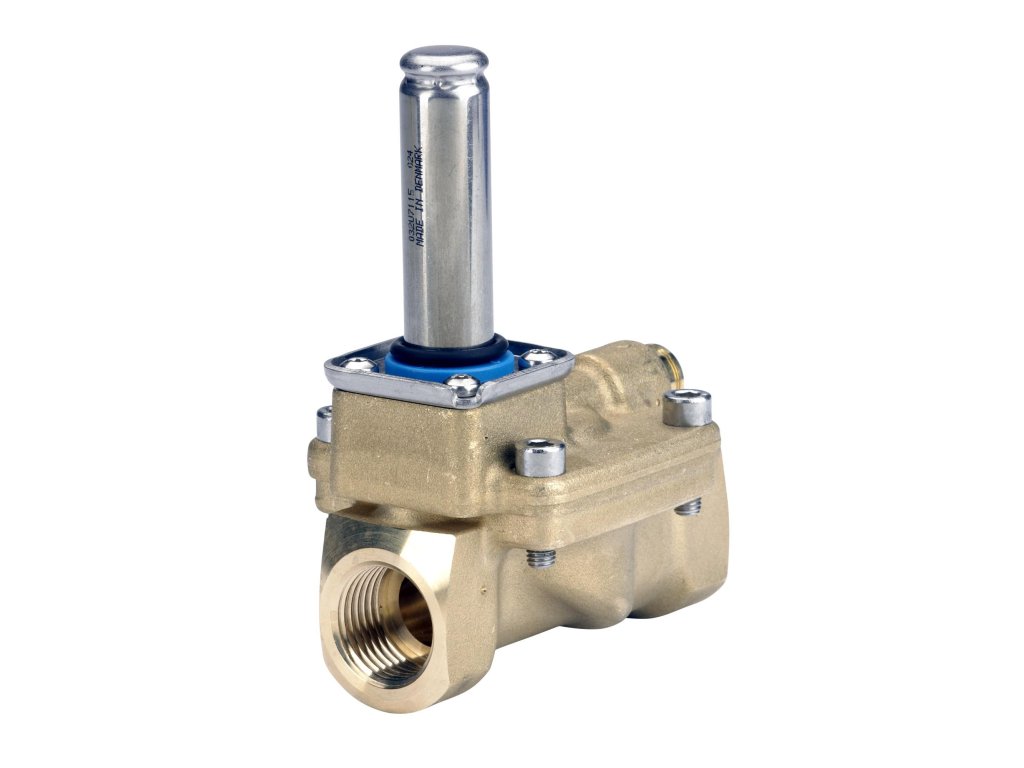

Elektromagnetický ventil, EV224B, Funkce: NC, G, 1, 11 m³/h, NBR
Kód: 032U8364Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV224B pro tlak do 40 bar |
|---|---|
| Hmotnost: | 1.36 kg |
| EAN: | 5702423208036 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 60 |
| Min. pressure difference: | 0.300 |
| Connection standard: | ISO 228-1 |
| Kvs value: | 11.000 |
| Specification key: | EV224B 25B G 1N NC000 |
| Height: | 75 |
| SCIP dossier no.: | 3cbac950-b315-4f09-8c50-9c941ac8e526 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Max. test pressure [psig]: | 725.0 |
| Medium temperature range [°C] [min]: | -10 |
| Ambient temperature max. [°C]: | 60 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | NBR |
| Ambient temperature max. [°F]: | 140 |
| Surface protection: | Other |
| Explosion safety: | None |
| Media tolerance comments: | Vzduch s/bez minerálního oleje |
| Operation: | Ovládání servopohonem (membrána) |
| Connection type: | G |
| Connection size [in]: | 1 |
| Connection material: | Mosaz |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 25.00 |
| Open/close equalizing orifice: | Volitelné vyrovnávací hrdlo |
| Medium temperature range [°F] [min]: | 14 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 12.700 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 11.000 |
| Approval: | DNVGL-CG-0339 |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV224B 25 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 33.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 33.0 |
| Medium temperature range [°F] [max]: | 140 |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 1 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Max. viscosity: | 50 |
| Differential pressure [psi] [max]: | 479.000 |
| Application: | Otevřený |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV224B NC- solenoid valve |
| Max. test pressure [bar]: | 50.0 |
| Model: | Straight |
| Quantity per packing format: | 12 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 479 |
| Media recommendations: | Tlakový vzduch |
-
Przegląd Produktów AKPiA - katalog: Brožurka
-
Solenoid valve, type EV224B: Datový list
-
Solenoid valve Type EV224B: Instalační příručka
