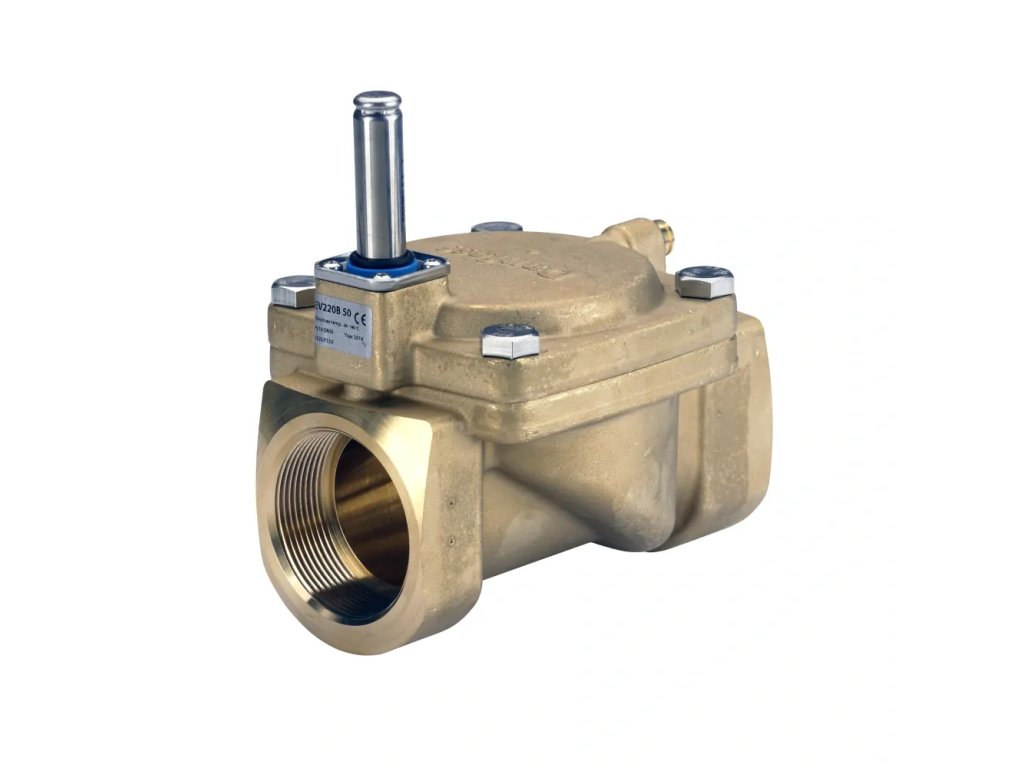

Elektromagnetický ventil, EV220BW, Funkce: NC, G, 2, 40 m³/h, EPDM
Kód: 132U5000Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220BW, EV228BW |
|---|---|
| Hmotnost: | 4.35 kg |
| EAN: | 5715162488577 |
| Outlet connection standard: | ISO 228-1 |
| Inlet connection standard: | ISO 228-1 |
| Medium temperature range [°C] [max]: | 90 |
| Connection standard: | ISO 228-1 |
| Outlet connection type: | G |
| Specification key: | EV220BW 50BE G 2E NC000 |
| Actuator system [mm]: | 13.5 |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Outlet size [in]: | 2 in |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Media tolerance comments: | Mírně agresivní média |
| Operation: | Ovládání servopohonem (membrána) |
| Product accessories: | Příslušenství elektromagnetického ventilu |
| Connection type: | G |
| Connection size [in]: | 2 |
| Connection material: | Bezolovnatá mosaz |
| Parts Program name: | EV220BW 15 - 50 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Bezolovnatá mosaz |
| Differential pressure [psi] [min]: | 4.351 |
| Orifice size [mm]: | 50.00 |
| Open/close equalizing orifice: | Volitelné vyrovnávací hrdlo |
| Medium temperature range [°F] [min]: | -22 |
| Max. Working Pressure note: | Kapaliny: max. 10 bar/145 psi |
| Type of accessory/spare part: | Other |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 46.200 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Jednotlivé balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 40.000 |
| Approval: | ACS |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | BW |
| Type designation: | EV220BW 50 |
| REACH Candidate List substances: | No |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Approval comments: | WRAS (0 – 85°C) |
| Contains batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| Spare part: | TRUE |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 2 in |
| Inlet size [in]: | 2 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Otevřený |
| Inlet Internal/External: | Vnitřní |
| Accessory: | TRUE |
| Max media viscosity [cSt]: | 50 |
| EPD available: | Yes |
| Max. test pressure [bar]: | 15.0 |
| Quantity per packing format: | 1 |
| Max. Working Pressure [psig]: | 145 |
| Inlet connection type: | G |
| Media recommendations: | Drinking Water&Heating ECO/SS |
| Outlet Internal/External: | Vnitřní |
-
