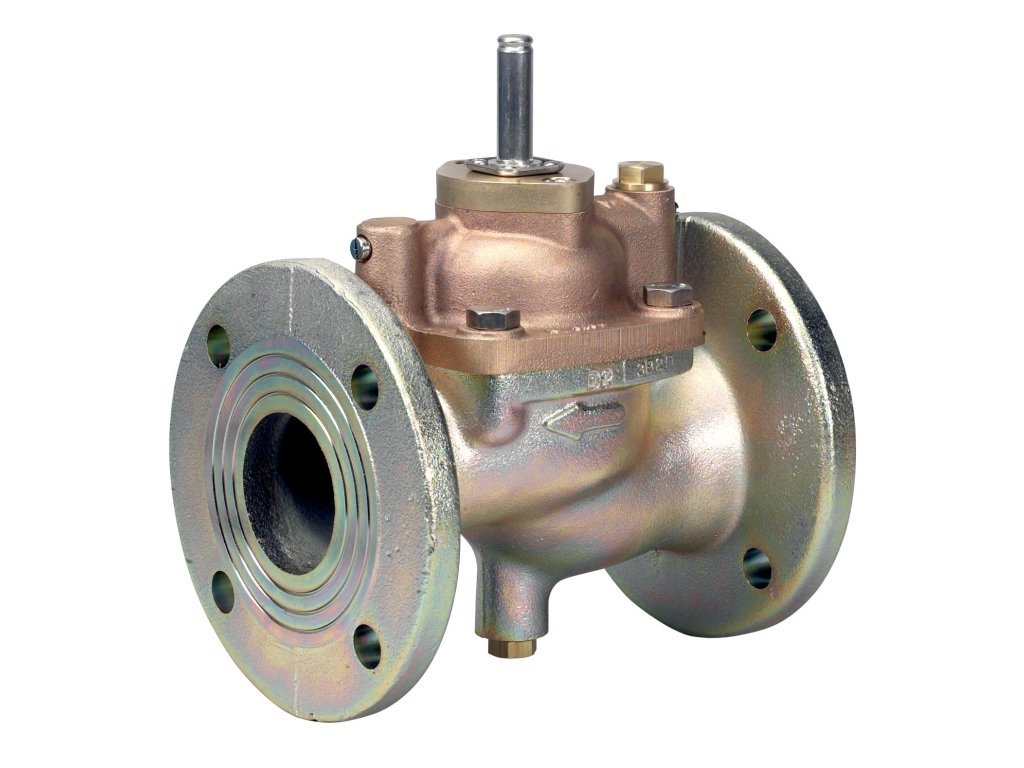

Elektromagnetický ventil, EV220B, Funkce: NC, Příruba, 130 m³/h, EPDM
Kód: 016D6100Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220B DN65-DN100 |
|---|---|
| Hmotnost: | 33.25 kg |
| EAN: | 5702422000853 |
| Housing material: | Cast iron |
| Medium temperature range [°C] [max]: | 90 |
| Min. pressure difference: | 0.250 |
| Connection standard: | EN 1092-1 |
| Est. time to close, water [ms]: | 29000 |
| Est. time to open, water [ms]: | 5000 |
| Kvs value: | 130.000 |
| Specification key: | EV220B 100CI FL10 E NC000 |
| Height: | 350 |
| SCIP dossier no.: | ca3467a2-054f-4e8c-b2c1-112e44e3f676 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Max. test pressure [psig]: | 218.0 |
| Medium temperature range [°C] [min]: | -25 |
| Ambient temperature max. [°C]: | 80 |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection: | Other |
| Explosion safety: | None |
| Media tolerance comments: | Neutrální média |
| Operation: | Ovládání servopohonem (píst) |
| Product accessories: | Příruby |
| Connection type: | Příruba |
| Connection size [in]: | 4 in |
| Connection material: | Litina |
| Parts Program name: | EV220B 65 - 100 |
| Body material: | Litina |
| Differential pressure [psi] [min]: | 3.600 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 100.00 |
| Open/close equalizing orifice: | Volitelné vyrovnávací hrdlo |
| Medium temperature range [°F] [min]: | -13 |
| Fluid Group: | 2 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 150.000 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Jednotlivé balení |
| Kv value [m³/h]: | 130.000 |
| Approval: | PZH |
| Differential pressure [bar] [min]: | 0.250 |
| Actuator: | B |
| Type designation: | EV220B 100 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 194 |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 4 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Max. viscosity: | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Otevřený |
| Max media viscosity [cSt]: | 50 |
| Max. test pressure [bar]: | 15.0 |
| Model: | Straight |
| Quantity per packing format: | 1 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
