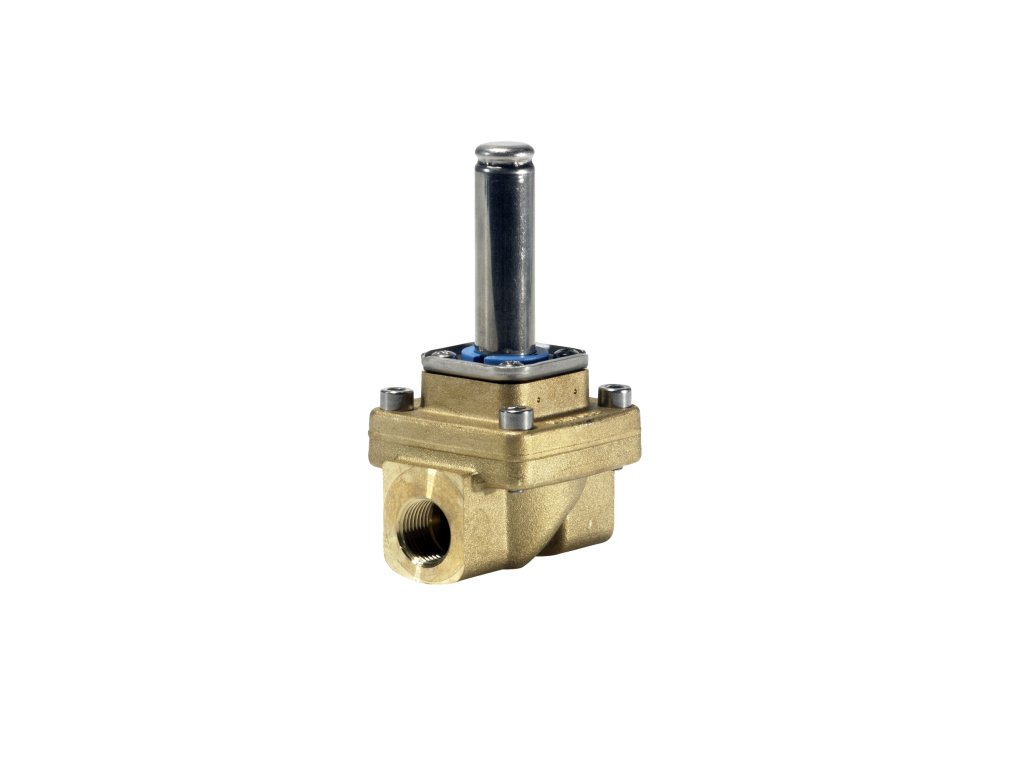

Elektromagnetický ventil, EV250B, Funkce: NC, G, 3/8, 2.5 m³/h, FKM
Kód: 032U5251Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV250B přímo ovládané |
|---|---|
| Hmotnost: | 0.59 kg |
| EAN: | 5702423179145 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 100 |
| Min. pressure difference: | 0.000 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 100 |
| UL evaluated: | Yes |
| Est. time to open, water [ms]: | 100 |
| Kvs value: | 2.500 |
| Specification key: | EV250B 10BD G 38F NC000 |
| Height: | 93 |
| SCIP dossier no.: | 23e5d8c0-c744-42b7-b414-f18776b38f4b |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | 0 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | FKM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection: | Other |
| Explosion safety: | None |
| Media tolerance comments: | Mírně agresivní média |
| Operation: | S pomocným zdvihem |
| Product accessories: | Příslušenství elektromagnetického ventilu |
| Connection type: | G |
| Connection size [in]: | 3/8 |
| Connection material: | Mosaz DZR |
| Parts Program name: | EV250B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Mosaz DZR |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 10.00 |
| Medium temperature range [°F] [min]: | 32 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 2.900 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 2.500 |
| Approval: | EAC |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Type designation: | EV250B 10 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 212 |
| Orifice size fraction [in]: | 3/8 in |
| Max. viscosity: | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Uzavřený a Vypouštěcí |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV250B NC - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Model: | Straight |
| Quantity per packing format: | 24 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Oil,Comp.Air,Vacuum |
-
Solenoid valve Type EV250B: Instalační příručka
-
Przegląd Produktów AKPiA - katalog: Brožurka
-
Solenoid valve, type EV250B: Datový list
-
How to use solenoid valves _Making it easy to be efficient: Uživatelská příručka
-
Assisted lift operated 2/2-way solenoid valve type EV250B: Datový list
