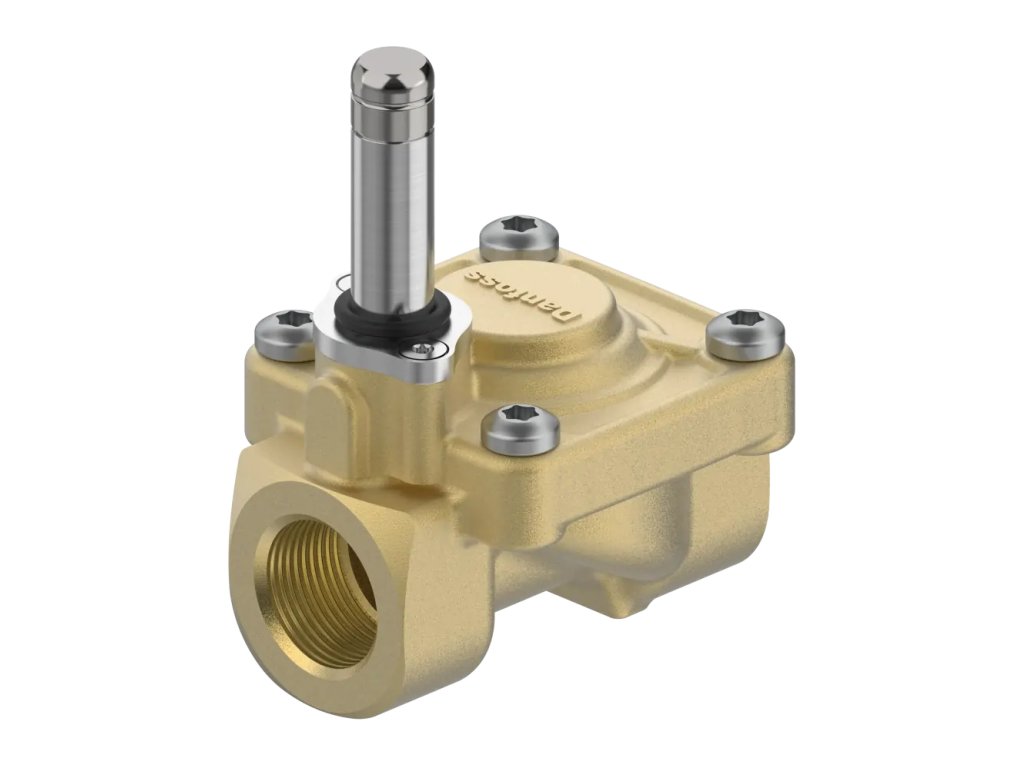

Elektromagnetický ventil, EV220S, Funkce: NO, G, 1/2, 4 m³/h, EPDM
Kód: 042U6114Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220S |
|---|---|
| Hmotnost: | 0.15 kg |
| EAN: | 5715162525562 |
| Medium temperature range [°C] [max]: | 100 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 400 |
| UL evaluated: | Yes |
| Est. time to open, water [ms]: | 100 |
| Specification key: | EV220S 14B G 12E NO000 |
| SCIP dossier no.: | 5109bece-eeb9-4151-89cf-c63ee268441d |
| Actuator system [mm]: | 9.0 |
| Function: | NO |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Ne |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 122 |
| Operation: | Ovládání servopohonem (membrána) |
| Product accessories: | Příslušenství elektromagnetického ventilu |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Mosaz |
| Parts Program name: | EV220S |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 4.350 |
| Orifice size [mm]: | 14.00 |
| Medium temperature range [°F] [min]: | -22 |
| Fluid Group: | 1 |
| Type of accessory/spare part: | Other |
| Actuator size: | 9 mm upínací S |
| Cv value [gal/min]: | 4.600 |
| Actuator size [in]: | 0.35 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| Kv value [m³/h]: | 4.000 |
| Approval: | WRAS |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | S |
| Type designation: | EV220S 14 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contains batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 212 |
| Spare part: | TRUE |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 5/8 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Differential pressure [psi] [max]: | 145.000 |
| Application: | Otevřený |
| Accessory: | TRUE |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220S |
| Max. test pressure [bar]: | 15.0 |
| Quantity per packing format: | 12 |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Water & Brine |
-
