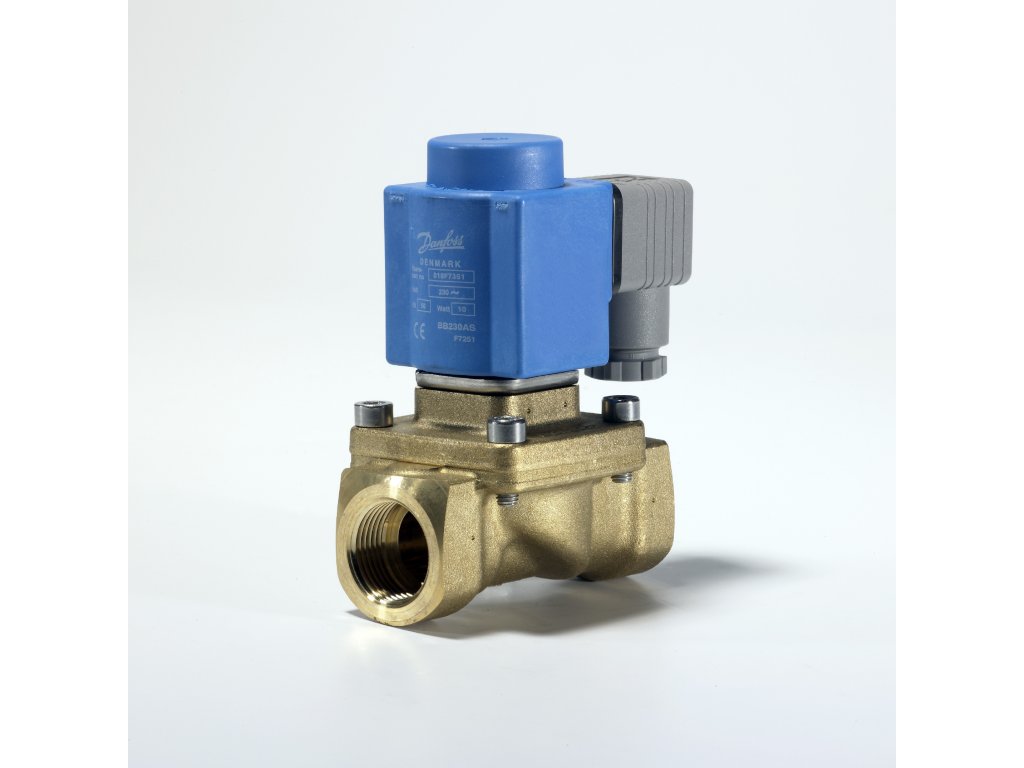

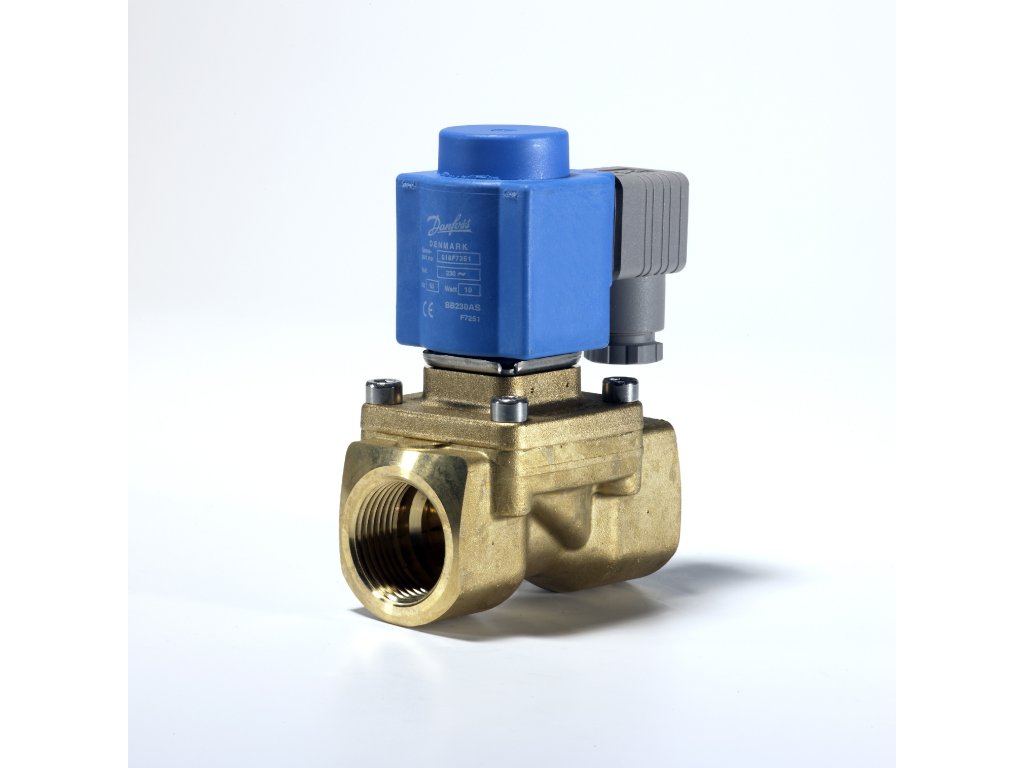

Elektromagnetický ventil, EV250B, Funkce: NO, G, 1, 5.2 m³/h, EPDM
Kód: 032U537631Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV250B přímo ovládané |
|---|---|
| Hmotnost: | 1.33 kg |
| EAN: | 5702423218103 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 120 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 100 |
| Supply voltage [V] AC: | 230 |
| Est. time to open, water [ms]: | 150 |
| Kvs value: | 5.200 |
| Specification key: | EV250B 22BD G 1E NO000 BB230AS |
| Height: | 75 |
| SCIP dossier no.: | d367528f-afd7-4ce7-98d3-93a4c38934b8 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Supply voltage 50Hz Max [V]: | 230 |
| Function: | NO |
| Electrical connection: | Other, Štítek DIN 43650-A |
| Max. test pressure [psig]: | 217.5 |
| Medium temperature range [°C] [min]: | -30 |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection: | Other |
| Enclosure rating IP: | IP65 |
| Explosion safety: | None |
| Media tolerance comments: | -30–120 °C: 0–10 bar |
| Coil option: | Nacvakávací |
| Operation: | S pomocným zdvihem |
| Product accessories: | Příslušenství cívky solenoidu |
| Connection type: | G |
| Connection size [in]: | 1 |
| Connection material: | Mosaz DZR |
| Parts Program name: | EV250B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Mosaz DZR |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 22.00 |
| Medium temperature range [°F] [min]: | -22 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 6000.000 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 5.200 |
| Approval: | CE |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Power consumption [W] 50Hz: | 11.0 |
| Type designation: | EV250B 22 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Frequency [Hz]: | 50 Hz |
| Voltage type: | AC |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 10.0 |
| Medium temperature range [°F] [max]: | 248 |
| Orifice size fraction [in]: | 7/8 in |
| Max. viscosity: | 50 |
| Differential pressure [psi] [max]: | 145.000 |
| Coil type: | BB |
| Application: | Uzavřený a Vypouštěcí |
| Degree of protection (IP): | IP65 |
| Connection voltage: | 230 |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV250B NO - solenoid valve |
| Max. test pressure [bar]: | 15.0 |
| Model: | Straight |
| Quantity per packing format: | 12 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 145 |
| Media recommendations: | Technical & Soft Water |
-
