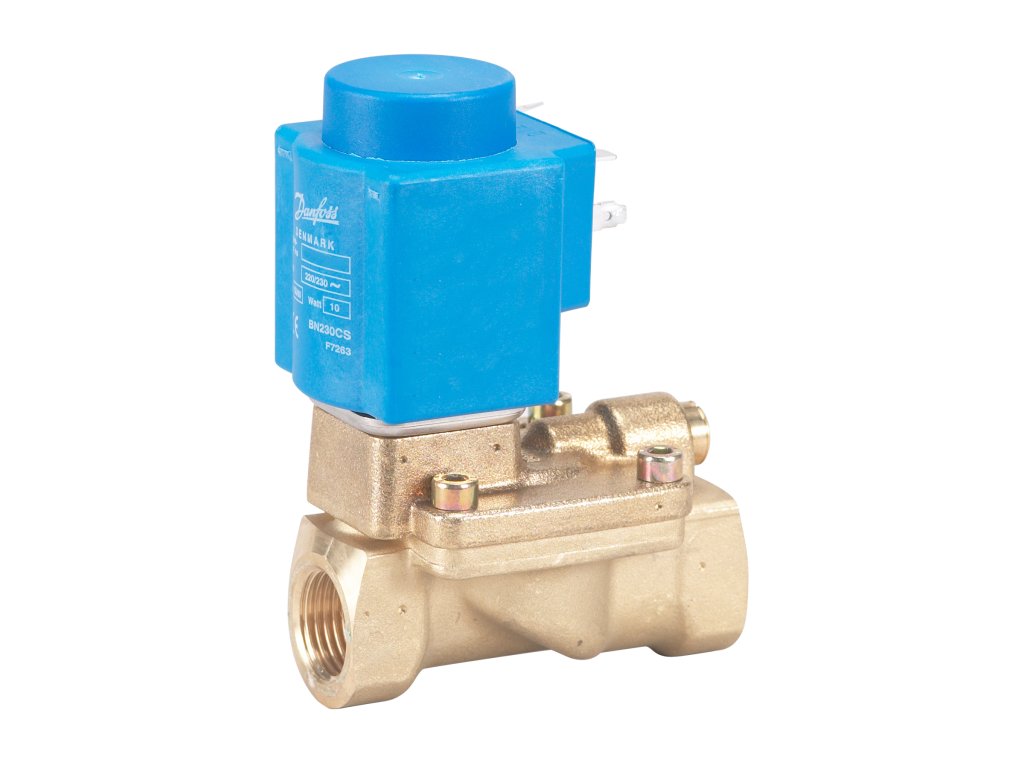

Elektromagnetický ventil, EV220B, Funkce: NC, G, 1/2, 4 m³/h, EPDM
Kód: 032U709502Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV220B DN15-DN50 |
|---|---|
| Hmotnost: | 0.98 kg |
| EAN: | 5702428659932 |
| Housing material: | Brass |
| Medium temperature range [°C] [max]: | 120 |
| Min. pressure difference: | 0.300 |
| Connection standard: | ISO 228-1 |
| Est. time to close, water [ms]: | 350 |
| Est. time to open, water [ms]: | 40 |
| Specification key: | EV220B 15B G 12E NC000 BB024DS |
| Height: | 93 |
| SCIP dossier no.: | b8af40bc-3f7f-4177-bd55-c3503cccfc04 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Max. test pressure [psig]: | 348.0 |
| Medium temperature range [°C] [min]: | -30 |
| Electrical connection: | Štítek DIN 43650-A |
| Ambient temperature max. [°C]: | 80 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly elektromagnetického ventilu |
| Seal Material: | EPDM |
| Ambient temperature max. [°F]: | 176 |
| Surface protection: | Other |
| Enclosure rating IP: | IP00 |
| Explosion safety: | None |
| Media tolerance comments: | Neutrální média |
| Coil option: | Nacvakávací |
| Power consumption [W] DC: | 16.0 |
| Operation: | Ovládání servopohonem (membrána) |
| Product accessories: | Příslušenství cívky solenoidu |
| Connection type: | G |
| Connection size [in]: | 1/2 |
| Connection material: | Mosaz |
| Parts Program name: | EV220B 15 - 50 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 4.350 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 15.00 |
| Open/close equalizing orifice: | Volitelné vyrovnávací hrdlo |
| Medium temperature range [°F] [min]: | -22 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 4.600 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 4.000 |
| Approval: | CE |
| Differential pressure [bar] [min]: | 0.300 |
| Actuator: | B |
| Type designation: | EV220B 15 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 16.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Voltage type: | DC |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 16.0 |
| Medium temperature range [°F] [max]: | 248 |
| Flow direction: | Jednosměrný průtok |
| Orifice size fraction [in]: | 5/8 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Differential pressure [psi] [max]: | 232.000 |
| Coil type: | BB |
| Application: | Otevřený |
| Degree of protection (IP): | IP00 |
| Connection voltage: | 24.00 |
| Max media viscosity [cSt]: | 50 |
| SCIP dossier product name: | EV220B 15-50 brass NC - solenoid valve |
| Max. test pressure [bar]: | 24.0 |
| Supply voltage [V] DC: | 24.00 |
| Model: | Straight |
| Quantity per packing format: | 12 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 232 |
| Media recommendations: | Water & Brine |
-
