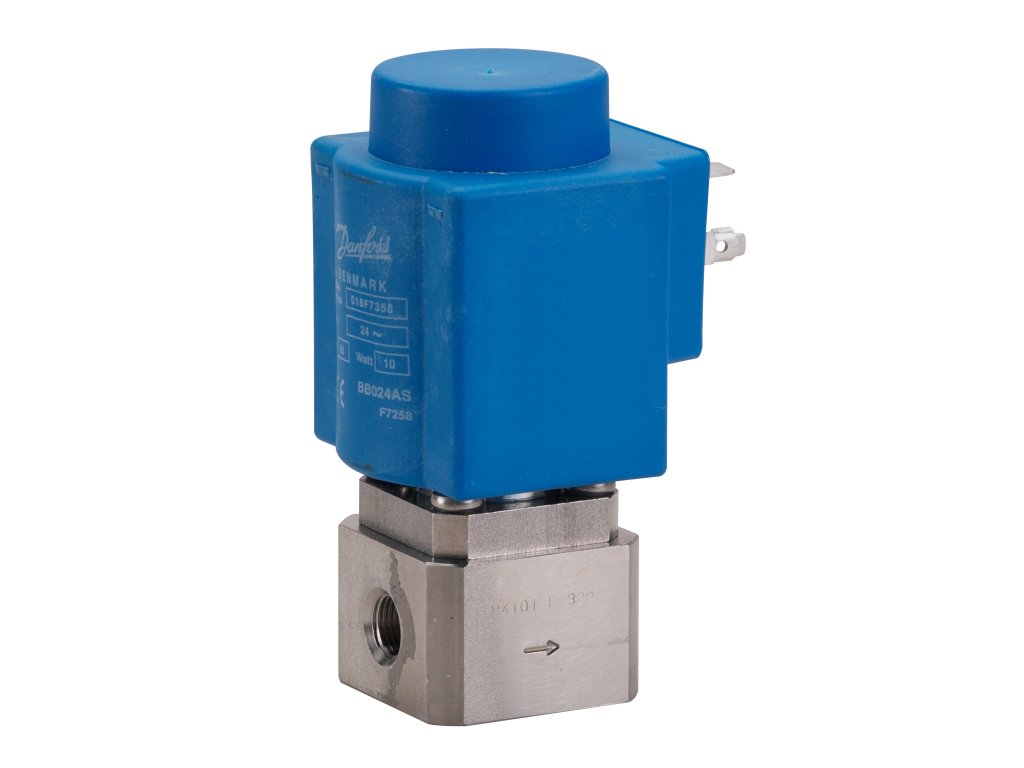

Elektromagnetický ventil, EV212B, Funkce: NC, G, 1/8, 0.15 m³/h, FKM
Kód: 032U3576Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | EV212B |
|---|---|
| Hmotnost: | 0.3 kg |
| EAN: | 5702428551236 |
| Housing material: | Steel |
| Medium temperature range [°C] [max]: | 50 |
| Min. pressure difference: | 0.000 |
| Connection standard: | ISO 228-1 |
| Specification key: | EV212B 2SS G 18F NC000 |
| Height: | 96 |
| Actuator system [mm]: | 13.5 |
| Material quality: | Other |
| Function: | NC |
| Max. test pressure [psig]: | 363.0 |
| Medium temperature range [°C] [min]: | 0 |
| Ambient temperature max. [°C]: | 50 |
| Connection Internal/External: | Vnitřní |
| Seal Material: | FKM |
| Ambient temperature max. [°F]: | 122 |
| Surface protection: | Other |
| Explosion safety: | None |
| Operation: | Přímo ovládaný |
| Connection type: | G |
| Connection size [in]: | 1/8 |
| Connection material: | Nerezová ocel |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Body material: | Nerezová ocel |
| Differential pressure [psi] [min]: | 0.000 |
| Emergency manual operation: | Other |
| Orifice size [mm]: | 2.00 |
| Medium temperature range [°F] [min]: | 32 |
| Fluid Group: | 1 |
| Actuator size: | 13.5 mm |
| Cv value [gal/min]: | 0.170 |
| Actuator size [in]: | 0.53 in |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Kv value [m³/h]: | 0.150 |
| Approval: | DNVGL-CG-0339 |
| Differential pressure [bar] [min]: | 0.000 |
| Actuator: | B |
| Type designation: | EV212B 2 |
| Differential pressure [bar] [max]: | 12.000 |
| Number of ways: | 2/2 |
| Contain batteries: | No |
| EU RoHS exemption clause: | 6(c) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 35.0 |
| Medium temperature range [°F] [max]: | 122 |
| Orifice size fraction [in]: | 5/64 in |
| Differential pressure [psi] [max]: | 174.046 |
| Application: | Otevřený |
| Max. test pressure [bar]: | 25.0 |
| Model: | Straight |
| Quantity per packing format: | 20 |
| Freeflow: | FALSE |
| Max. Working Pressure [psig]: | 508 |
| Media recommendations: | Technical & Soft Water |
