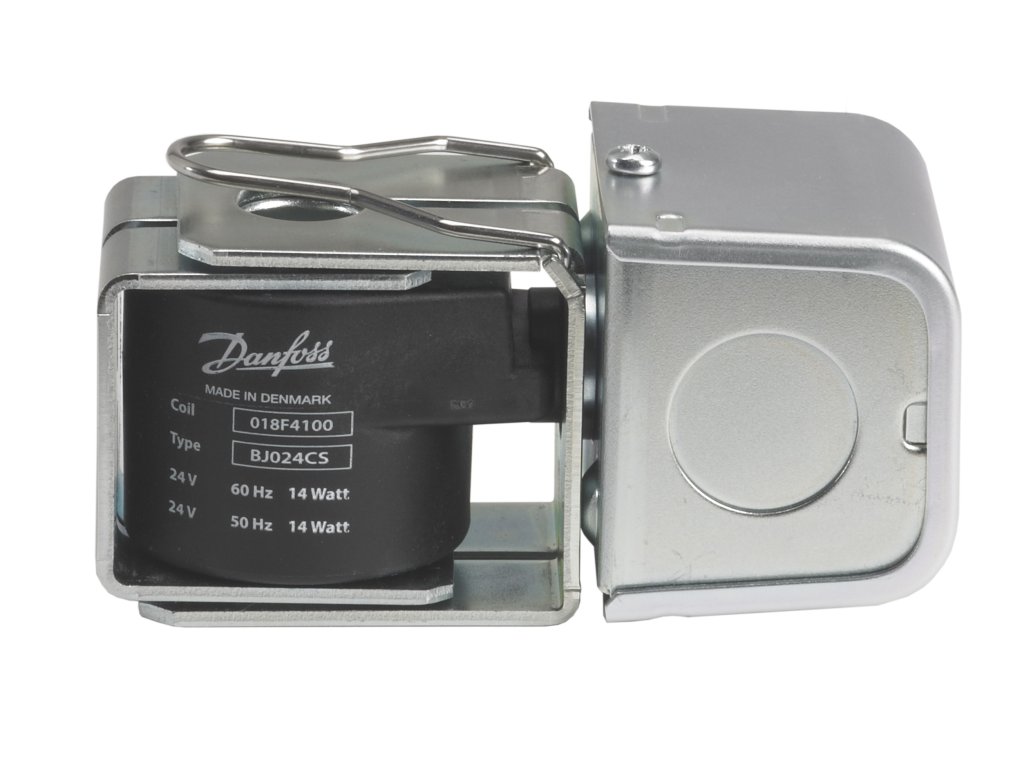

Cívka solenoidu, BJ024CS, Spojovací skříňka, 0.2 m, Napájecí napětí [V] AC: 24, Multi balení
Kód: 018F4100Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.39 kg |
| EAN: | 5702428835510 |
| Colour: | Černá |
| Type of accessory/spare part: | Other |
| Electrical conn. comments: | Volné přívody |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 0.200 |
| Compliance: | UL 429 |
| Coil connection: | Spojovací skříňka |
| Pollution degree: | 3 |
| China RoHS compliance: | Out of scope |
| Supply voltage [V] AC: | 24 |
| Supply voltage 60Hz Max [V]: | 24 |
| Spare part number: | 018F4100 |
| Packing format: | Multi balení |
| UL evaluated: | Yes |
| In scope of WEEE: | Yes |
| Enclosure rating Nema (~): | 2 |
| Approval: | CERTIFIKOVÁNO C UL US |
| Power consumption [W] 50Hz: | 14.0 |
| Type designation: | BJ024CS |
| Power consumption [W] 60Hz: | 14.0 |
| REACH Candidate List substances: | No |
| Coil fastening: | Nacvakávací |
| Electrical connection standard: | UL50E TŘÍDA 2 |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 24 |
| Contain batteries: | No |
| Frame design: | Vnější kovový rám |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Spojovací skříňka |
| Coil design standard: | UL 429 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP30 |
| Ambient temperature range [°C] [min]: | -40 |
| Rel. Humidity conditions: | Bez kondenzace |
| Cable length [in]: | 8.00 |
| Ambient temperature range [°C] [max]: | 50 |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| UL approval file name: | MH29671 |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 35 |
| Ambient temperature range [°F] [max]: | 120 |
-
Solenoid coil for electric expansion and solenoid valves with UL-approval Types BJ and BX: Instalační příručka
-
Supermarket Catalog 2020: Katalog
-
2024 Quick Select Guide - Refrigeration and Air Conditioning Components: Katalog
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil type BJ, BX, BT and BU: Datový list
