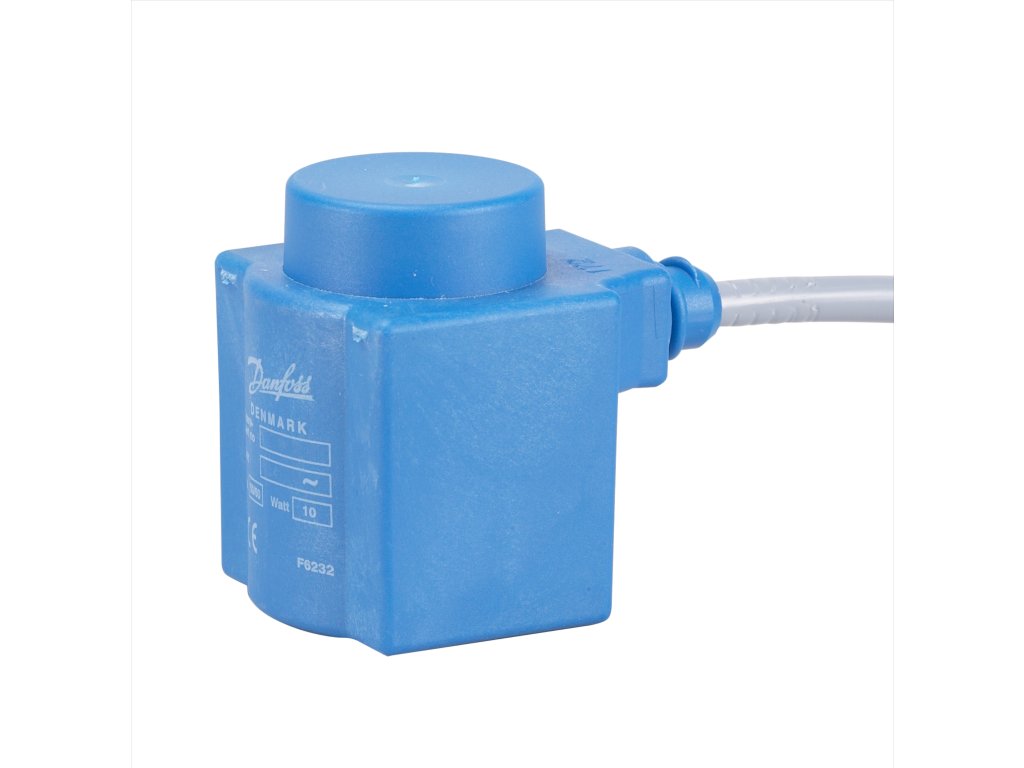

Cívka solenoidu, BF012DS, Kabel, 1.5 m, null: 12, Multi balení
Kód: 018F6292Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BB / BE / BF / BG / BN |
|---|---|
| Hmotnost: | 0.32 kg |
| EAN: | 5702428025058 |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 1.500 |
| Compliance: | EN 60730-1 |
| Coil connection: | Kabel |
| China RoHS compliance: | Out of scope |
| Spare part number: | 018F6292 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | LLC CDC TYSK |
| Type designation: | BF012DS |
| REACH Candidate List substances: | No |
| Coil fastening: | Nacvakávací |
| Duty rating: | Trvalý |
| Rel. Humidity [% RH] [max]: | 100 |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Cable diameter [mm]: | 6.6 |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Kabel |
| Coil design standard: | VDE 0580 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 60.00 |
| Ambient temperature range [°C] [max]: | 50 |
| Power consumption [W] DC: | 15.0 |
| Electrical connector: | 3-žilový kabel |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Supply voltage [V] DC: | 12.00 |
| Quantity per packing format: | 20 |
| Ambient temperature range [°F] [max]: | 120 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Types BB, BE, BF, BG, and BN: Instalační příručka
-
Solenoid coil type BB, BE, BF, BG, and BN: Datový list
