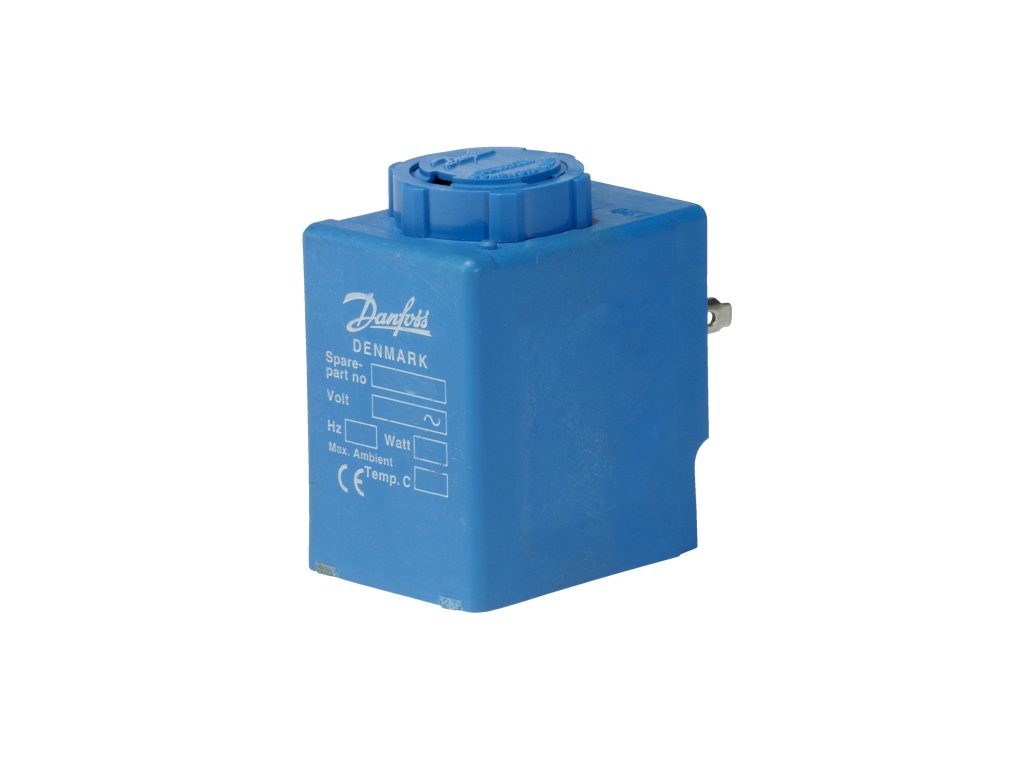

Cívka solenoidu, BA048A, Štítek DIN, Multi balení
Kód: 042N7510Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.15 kg |
| EAN: | 5702423020270 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Coil connection: | Štítek DIN |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| China RoHS compliance: | Out of scope |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Power consumption [W] 50Hz: | 10.0 |
| Type designation: | BA048A |
| REACH Candidate List substances: | No |
| Coil fastening: | Matice a západka |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Trvalý |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 48 |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Frequency [Hz]: | 50 Hz |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Štítek DIN |
| Coil design standard: | VDE 0580 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Rel. Humidity conditions: | Bez kondenzace |
| Ambient temperature range [°C] [max]: | 40 |
| Electrical connector: | 3 x štítky |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| Parts included: | Matice |
| Power consumption 50Hz [VA]: | 18 |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 45 |
| Ambient temperature range [°F] [max]: | 104 |
-
