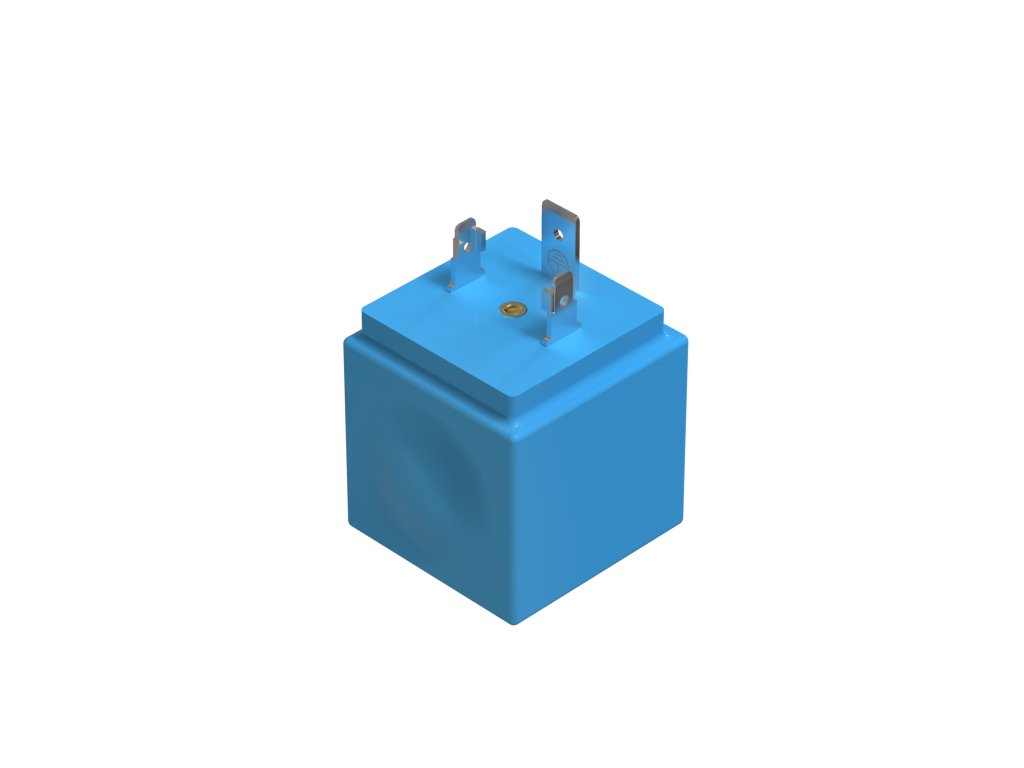

Cívka solenoidu, AZ120CS, Štítek DIN, Multi balení
Kód: 042N4202Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.11 kg |
| EAN: | 5702428045308 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 9 mm |
| Compliance: | EN 60730-1 |
| Coil connection: | Štítek DIN |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| China RoHS compliance: | Out of scope |
| Supply voltage 60Hz Max [V]: | 120 |
| Packing format: | Multi balení |
| UL evaluated: | Yes |
| In scope of WEEE: | Yes |
| Approval: | cURus |
| Power consumption 60Hz [VA]: | 14 |
| Power consumption [W] 50Hz: | 8.5 |
| Type designation: | AZ120CS |
| Power consumption [W] 60Hz: | 7.0 |
| REACH Candidate List substances: | No |
| Coil fastening: | Nacvakávací |
| Electrical connection standard: | EN175301-803 |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 115 |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Frequency [Hz]: | 50/60 Hz |
| Supply voltage 60Hz Min [V]: | 110 |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Štítek DIN |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Rel. Humidity conditions: | Bez kondenzace |
| Ambient temperature range [°C] [max]: | 50 |
| Electrical connector: | 3 x štítky |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| Power consumption 50Hz [VA]: | 16 |
| UL approval file name: | MH29671 |
| SCIP dossier product name: | EVR 10-22 (NO) |
| Parts Program name: | EV220S |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 120 |
